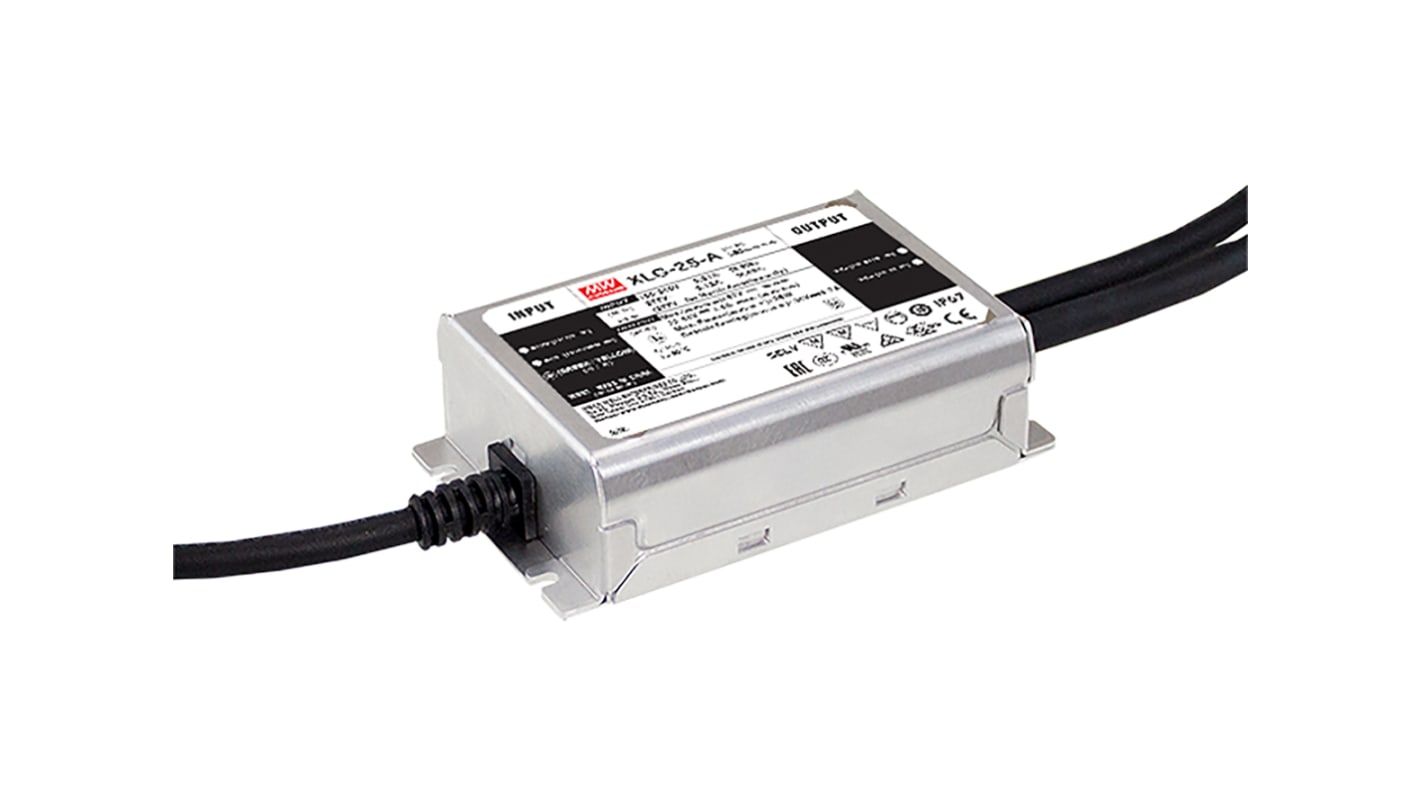

MEAN WELL LED Driver, 22 → 54V Output, 25W Output, 700mA Output, Constant Current Dimmable

모든 LED Drivers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩29,610.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 1월 19일 부터 24 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩29,610.00
5 - 9₩28,707.60
10 - 19₩27,824.00
20 - 39₩27,241.20
40 +₩26,677.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
183-5730
Distrelec 제품 번호:
302-30-165
제조사 부품 번호:
XLG-25-A
제조업체:
MEAN WELL
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MEAN WELL

Output Voltage

22 → 54V

Maximum Output Power

25W

Output Current

700mA

Dimmable

Yes

Input Voltage

90 → 305 V ac

Operation

Constant Current

LED Driver Type

LED Driver

Dimming Operation

1-10 V

AC or DC Input Voltage

ac

IP Rating

IP67

Output

22 → 54 V dc @ 700 mA

Current Rating

290mA

Voltage Rating

90 → 305V ac

Series

XLG-25

Number of Outputs

1

Primary Type

AC-DC

COO (Country of Origin):
CN
XLG-25 Series is a 25W AC/DC LED driver featuring the constant power mode output. XLG-25 operates from 100∼305VAC. The High Efficiency up to 88%, The entire Series is able to operate between -40°C ∼ 85°C wide case temperature range with air convection. The design of metal housing allows this series to fit both indoor and applications. XLG-25 is Equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED Lighting System.

Constant Power mode output
Metal housing design with functional Ground
Built-in active PFC Function
Class 2 Power Unit
No Load/Standby Power Consumption <0.5W
For Indoor or Outdoor installations
Function Options: Output Adjustable via Potentiometer 3in 1 Dimming (dim-to-off)
Typical Lifetime>50000 hours
5 Years Warranty
Applications
LED Street Lighting
LED Architectural Lighting
LED bay Lighting
LED Flood Lighting
