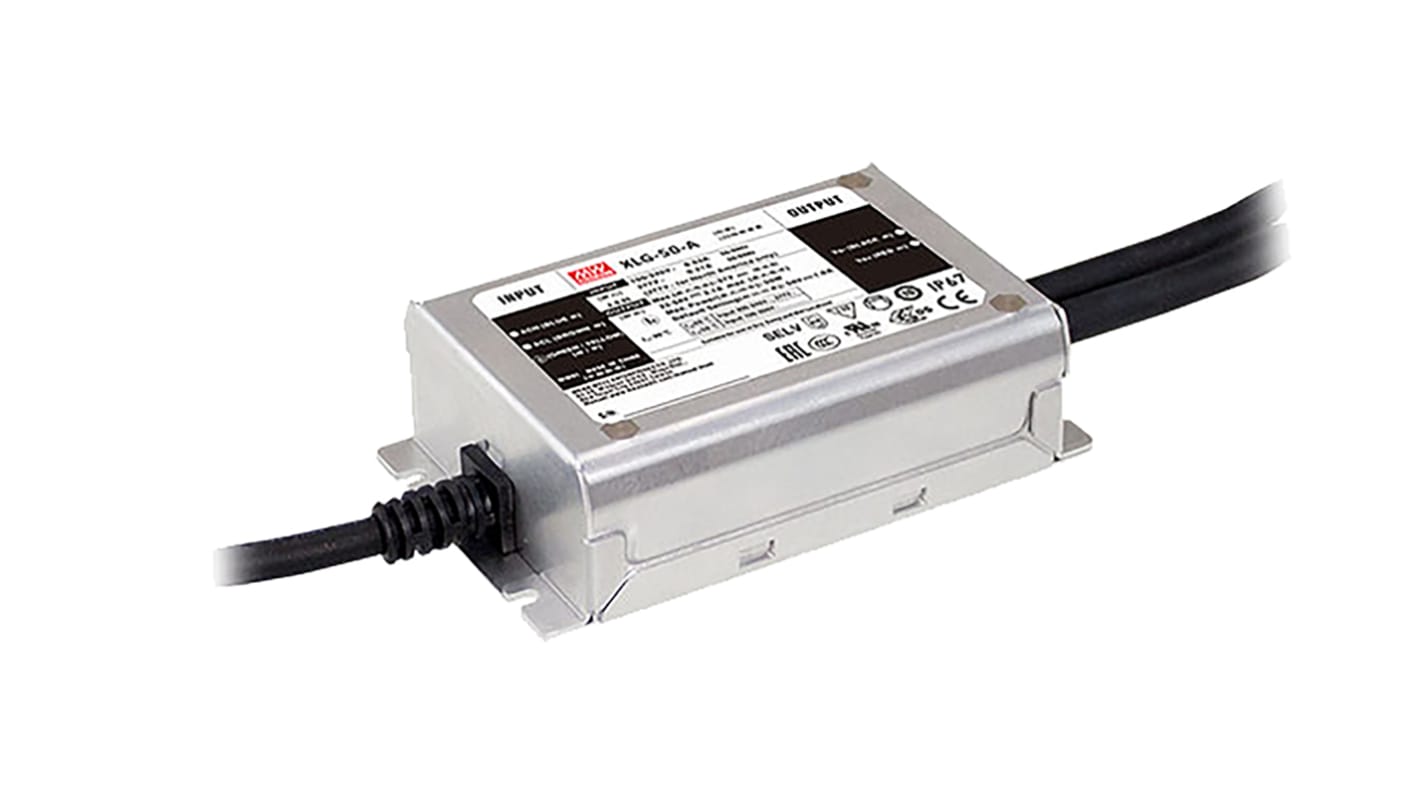

MEAN WELL LED Driver, 22 → 54V Output, 50W Output, 1A Output, Constant Current Dimmable

모든 LED Drivers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩28,294.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 1월 19일 부터 34 개 단위 배송
  • 추가로 2026년 4월 20일 부터 72 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩28,294.00
5 - 9₩27,448.00
10 - 19₩26,620.80
20 - 39₩26,094.40
40 +₩25,568.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
183-5732
Distrelec 제품 번호:
302-30-167
제조사 부품 번호:
XLG-50-A
제조업체:
MEAN WELL
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

MEAN WELL

Output Voltage

22 → 54V

Maximum Output Power

50W

Output Current

1A

Dimmable

Yes

Input Voltage

142 → 431 V dc, 90 → 305 V ac

Operation

Constant Current

LED Driver Type

LED Driver

Dimming Operation

1-10 V

AC or DC Input Voltage

ac, dc

IP Rating

IP67

Output

22 → 54 V dc @ 1 A

Current Rating

570mA

Voltage Rating

142 → 431 V dc, 90 → 305 V ac

Number of Outputs

1

Series

XLG-50

Primary Type

AC/DC-DC

Standards Met

AS/NZS EN 61347-2-13, CSA C22.2 No.250.13-12, EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2,3,4,5,6,8,11, EN 61547, EN 62384, ENEC AS/NZS IEC EN 61347-1, GB17625.1, GB17743, GB19510.1, GB19510.14, UL 8750

COO (Country of Origin):
CN
XLG-50 Series is a 50W AC/DC LED driver featuring the constant power mode output. XLG-50 operates from 100∼305VAC. The High Efficiency up to 90%, The entire Series is able to operate between -40°C ∼ 90°C wide case temperature range with air convection. The design of metal housing allows this series to fit both indoor and applications. XLG-50 is Equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED Lighting System.

Constant Power mode output
Metal housing design with functional Ground
Built-in active PFC Function
Class 2 Power Unit
No Load/Standby Power Consumption <0.5W
For Indoor or Outdoor installations
Output Adjustable via Potentiometer
Typical Lifetime>50000 hours
5 Years Warranty
Applications
LED Street Lighting
LED Architectural Lighting
LED bay Lighting
LED Flood Lighting
