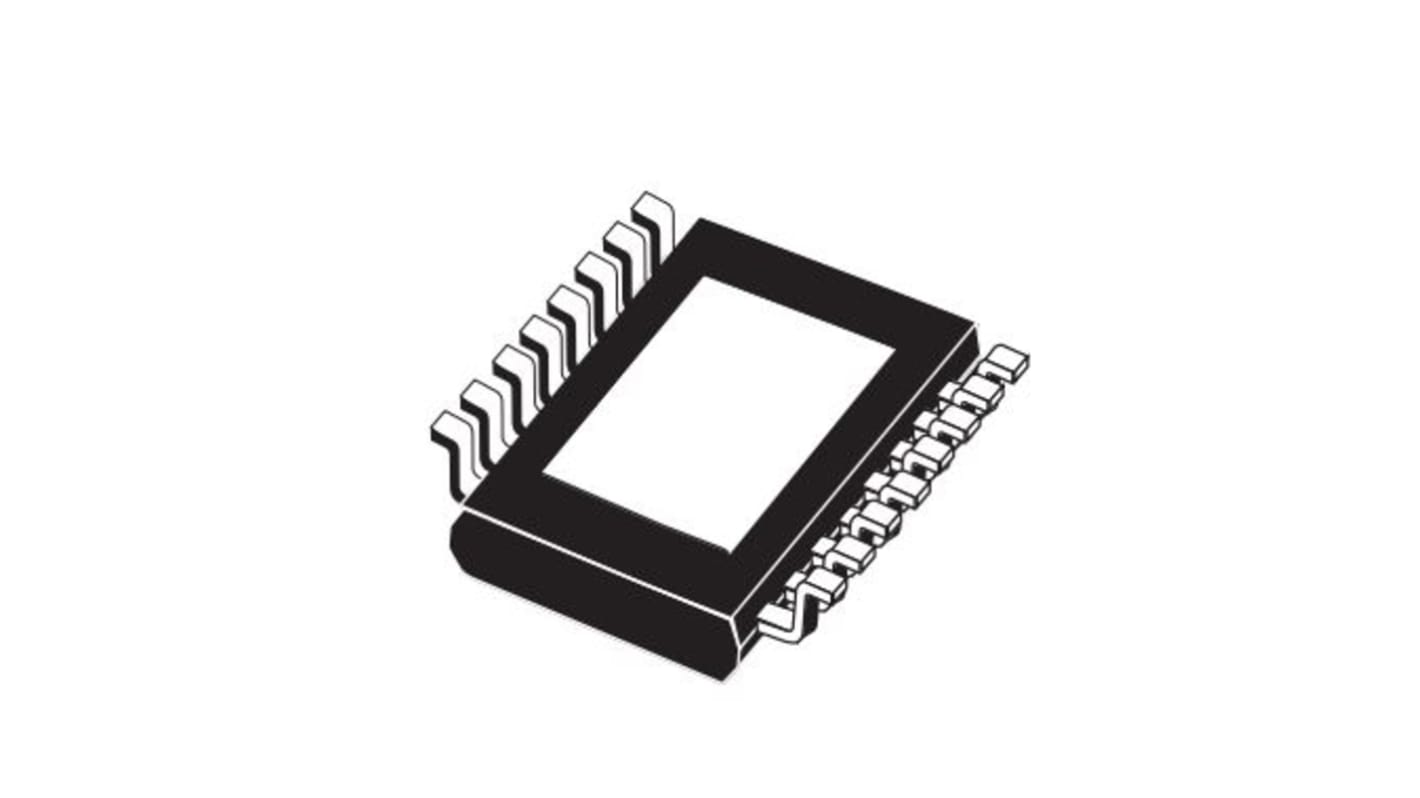

STMicroelectronics ALED8102SXTTR, ALED8102S LED Driver Development Module for HTSSOP16

모든 LED Development Tools 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 2 units)*

₩4,248.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 2,484 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
2 - 8₩2,124.40₩4,248.80
10 - 98₩2,077.40₩4,154.80
100 - 248₩2,021.00₩4,042.00
250 - 498₩1,964.60₩3,929.20
500 +₩1,908.20₩3,816.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
240-7316
제조사 부품 번호:
ALED8102SXTTR
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

LED Technology

LED Driver

Kit Classification

Development Module

Featured Device

HTSSOP16

Kit Name

ALED8102S

The STMicroelectronics monolithic, low voltage, 8 low-side channels LED driver. It guarantees up to 20 V output driving capability allowing users to connect several LEDs in series. In the output stage, 8 regulated current sources provide from 5 mA to 100 mA constant current to drive the LEDs. Current is programmed though a single external resistor. The ALED8102S is equipped with a thermal management that protects the device forcing it in shutdown (typically: power-off at 170 °C with 15 °C hysteresis to restart). The thermal protection switches OFF the output channels only.

8 constant current output channels
Output enable input for global dimming
Output current: from 5 mA to 100 mA
Current programmable through external resistor
Thermal shutdown
