STMicroelectronics STEVAL-ILL079V1 STEVAL LED Driver Evaluation Board for LED6000 for High Power LED

모든 LED Development Tools 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩70,297.50

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량
한팩당
1 - 4₩70,297.50
5 +₩68,893.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
124-1181
제조사 부품 번호:
STEVAL-ILL079V1
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

LED Driver Evaluation Kit

LED Technology

LED Driver

Kit Classification

Evaluation Board

For Use With

High Power LED

Featured Device

LED6000

Kit Name

STEVAL

Standards/Approvals

RoHS

COO (Country of Origin):
IT

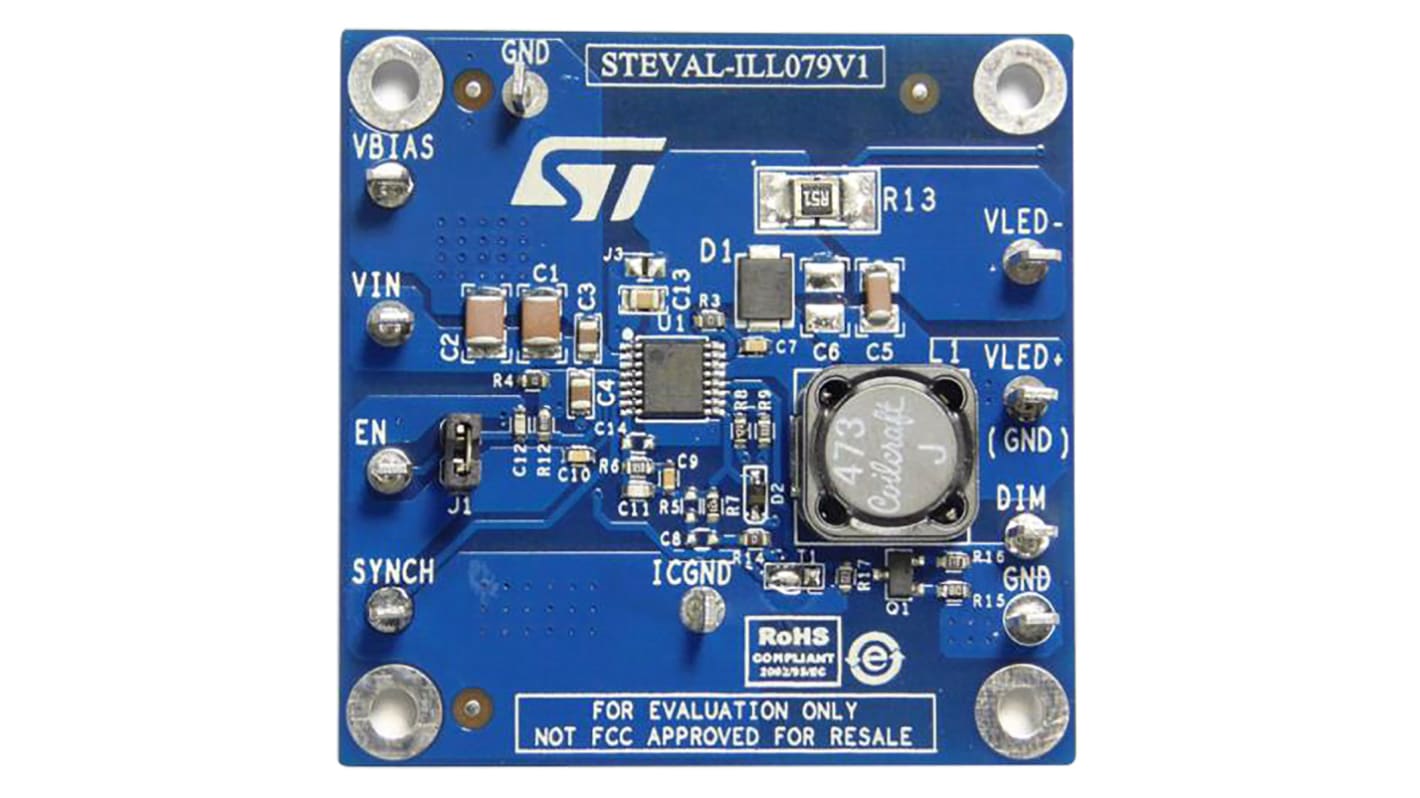

STEVAL-ILL079V1 LED Driver Eval Board for LED6000


The STMicroelectronics STEVAL-ILL079V1 is an inverting buck-boost LED driver evaluation board. The board features the LED6000 current regulator. The LED600 is a monolithic current source with dimming capability, for driving high-power LEDs. The device offers a wide input voltage range, enabling you to use alternative topologies on the board, for example buck-boost.

Eight white LEDs (max 30 V) are powered via a 0.5 A programmed current. Digital dimming is achieved on the board by driving the DIM pin. External circuitry can be added to achieve the necessary level shifting. You can also adjust the current limit threshold and switching frequency on the board, to suit your chosen application.

Features and Benefits

15 V to 30 V input voltage

Negative buck-boost topology

8 white LEDs, 0.5 A programmed current

500 kHz switching frequency

Digital dimming

Compliant with ceramic output capacitors

180° out of phase synchronisation available

Auto recovery overcurrent and thermal protection
