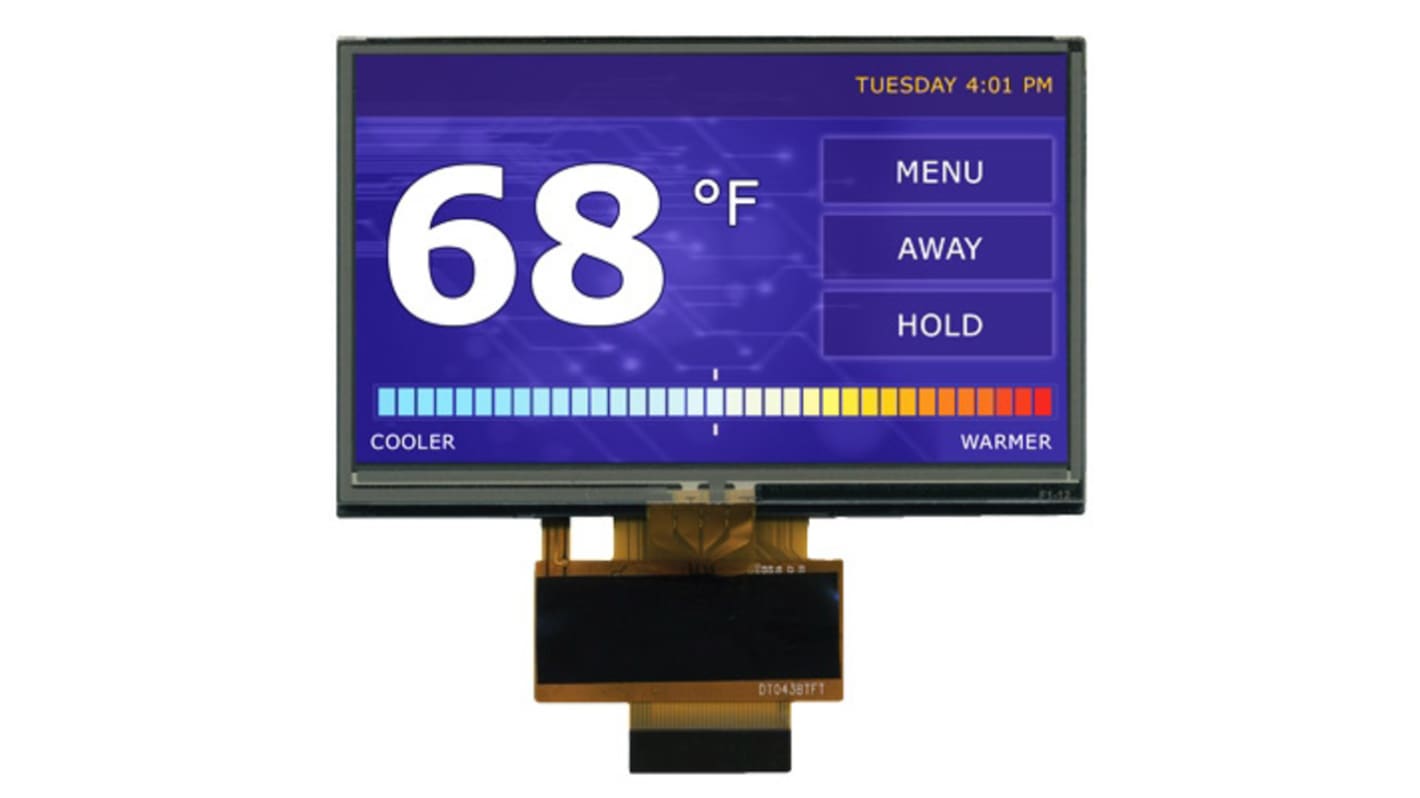

Displaytech DT043BTFT-TS LCD Colour Display Touch Screen, 4.3 in, 480 x 272 pixel
- RS 제품 번호:
- 781-3018
- 제조사 부품 번호:
- DT043BTFT-TS
- 제조업체:
- Displaytech
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 781-3018
- 제조사 부품 번호:
- DT043BTFT-TS
- 제조업체:
- Displaytech
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Displaytech | |
| Diagonal Display Size | 4.3in | |
| Product Type | LCD Colour Display | |
| Interface Type | 24 Bit | |
| Current | 30mA | |
| Screen Resolution | 480 x 272 pixel | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 54 x 95 mm | |
| Touch Screen Type | Resistive | |
| Backlight Type | LED | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Supply Voltage | 4.6V dc | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 67.2mm | |
| Depth | 53.86mm | |
| Standards/Approvals | No | |
| Width | 105.5mm | |
| Brightness | 220cd/m² | |
| Contrast Ratio | 450:1 | |
| Display Type | LCD, TFT | |
| Power Supply Included | Yes | |
| 모두 선택 | ||
|---|---|---|
브랜드 Displaytech | ||
Diagonal Display Size 4.3in | ||
Product Type LCD Colour Display | ||
Interface Type 24 Bit | ||
Current 30mA | ||
Screen Resolution 480 x 272 pixel | ||
Touch Screen Yes | ||
Viewing Area Dimensions 54 x 95 mm | ||
Touch Screen Type Resistive | ||
Backlight Type LED | ||
Minimum Supply Voltage -0.3V | ||
Maximum Supply Voltage 4.6V dc | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Height 67.2mm | ||
Depth 53.86mm | ||
Standards/Approvals No | ||
Width 105.5mm | ||
Brightness 220cd/m² | ||
Contrast Ratio 450:1 | ||
Display Type LCD, TFT | ||
Power Supply Included Yes | ||
- COO (Country of Origin):
- CN
Displaytech TFT LCD Display Modules
Displaytech's TFT LCD display modules are designed to combine performance with value. These reliable TFT LCD modules are suitable for a wide variety of industrial, medical and consumer applications. The driver ICs are mounted directly on to the glass and are as follows:
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.
• Transmissive TFT LCD display modules
• LED backlight
• DC voltage input
• Connection to drive the display module is via FPC (Flexible Printed Circuit)
• Operating temperature range: -20 to +70°C
• Viewing direction: 6 oclock (DT035TFT and DT035TFT-TS are: 12 oclock)
• Touch screen versions come fitted with a 4 wire resistive touch screen
Displaytech Colour LCD Graphic Dispalys
Note
Suitable 45-way, 0.5mm pitch, 0.3mm thickness (with stiffener) FFC/FPC connectors for use with these Displaytech TFT LCD display modules are: 738-8950, 772-7027 or 772-6756.
