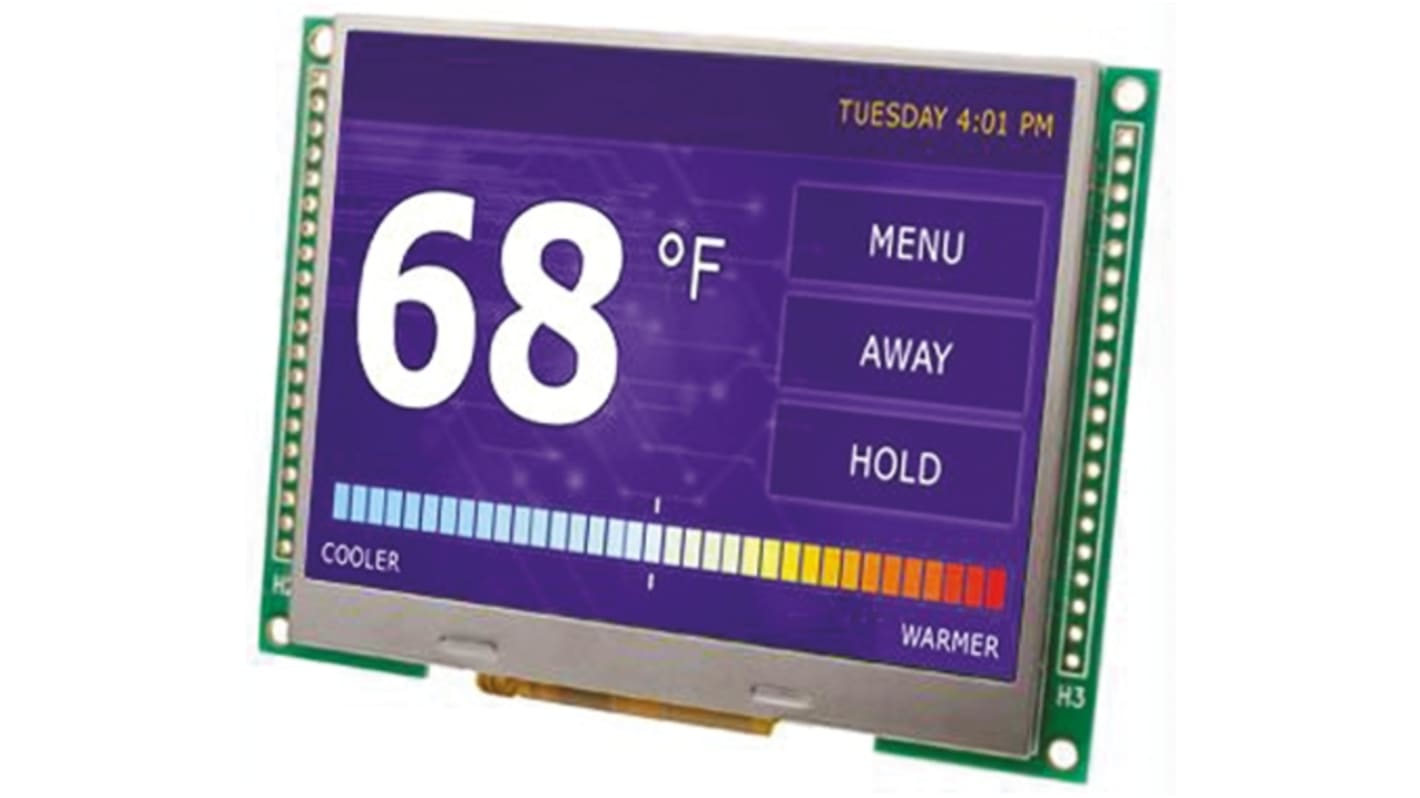

Displaytech INT043BTFT TFT LCD Colour Display, 4.3in, 480 x 272pixels

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 LCD Colour Displays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩106,878.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 58 개 단위 배송 준비 완료
  • 2025년 12월 22일 부터 최종 175 개 단위 배송
수량
한팩당
1 - 12₩106,878.00
13 - 24₩104,546.80
25 +₩102,290.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
750-2581
제조사 부품 번호:
INT043BTFT
제조업체:
Displaytech
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Displaytech

Diagonal Display Size

4.3in

Interface Type

18 Data Bus

Resolution

480 x 272pixels

Touch Screen

No

Viewing Area Dimensions

95 x 54mm

Supply Voltage

17 V

Touch Screen Type

None

Backlight Type

LED

Display Mode

Transmissive

Display Matrix Technology

TFT

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

Brightness

220cd/m²

Height

70mm

Power Supply Included

Yes

Response Time

30ms

Operating Temperature Range

-20 → +70°C

Contrast Ratio

450:1

Number of Colours

262,144

Width

116mm

COO (Country of Origin):
CN

Displaytech Integrated TFT Modules


A range of integrated TFT LCD modules from Displaytech that overcomes the frustration of ever-changing driver ICs, screens and connection arrangements used in TFT display panels. These Displaytech modules offer designers a stable and versatile platform to work with whilst insulating them from changes made to the elements used within the modules over time. The modules include an auto-initialisation feature that provides a consistent user interface and reduces design time requirements. They are simple to mount and connections are made via two rows of plated-through holes. The smaller displays use the RAIO RA8872 LCD controller and the 3.5 inch displays and larger use the Soloman Systech SSD1963 controller.

• Built-in LCD controller
• LED backlighting with PWM control
• 8080/6800 MCU Interface (selectable)
• Auto-initialisation feature
• Low-power sleep mode
• Screen display rotation
• Touch-panel versions have an embedded 4-Wire Touch-Panel Controller

RAIO RA8872 Controlled Displays


1.8 inch displays
INT018ATFT (RS 740-6001)
2.2 inch displays
INT022ATFT (RS 740-6004)
2.4 inch displays
INT024BTFT (RS 740-6008)
INT024BTFT-TS (RS 740-6017) Touchscreen
2.8 inch displays
INT028ATFT (RS 740-6010)
INT028ATFT-TS (RS 740-6014) Touchscreen

Soloman Systech SSD1963 Controlled Displays


3.5 inch displays
INT035TFT (RS 750-2578)
INT035TFT-TS (RS 750-2572) Touchscreen
4.3 inch displays
INT043BTFT (RS 750-2581)
INT043BTFT-TS (RS 750-2584) Touchscreen
5.7 inch displays
INT057ATFT (RS 750-8671)
7 inch displays
INT070ATFT (RS 750-2588)
INT070ATFT-TS (RS 750-2597) Touchscreen
