Bridgetek IDM2040-7A LCD Display Module / Touch Screen, 7in, 800 x 480pixels
- RS 제품 번호:
- 248-7341
- 제조사 부품 번호:
- IDM2040-7A
- 제조업체:
- Bridgetek
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩261,865.20
재고있음
- 7 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩261,865.20 |
| 5 + | ₩256,638.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 248-7341
- 제조사 부품 번호:
- IDM2040-7A
- 제조업체:
- Bridgetek
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bridgetek | |
| Diagonal Display Size | 7in | |
| Interface Type | I2C, SPI | |
| Resolution | 800 x 480pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 154 x 85.92mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bridgetek | ||
Diagonal Display Size 7in | ||
Interface Type I2C, SPI | ||
Resolution 800 x 480pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 154 x 85.92mm | ||

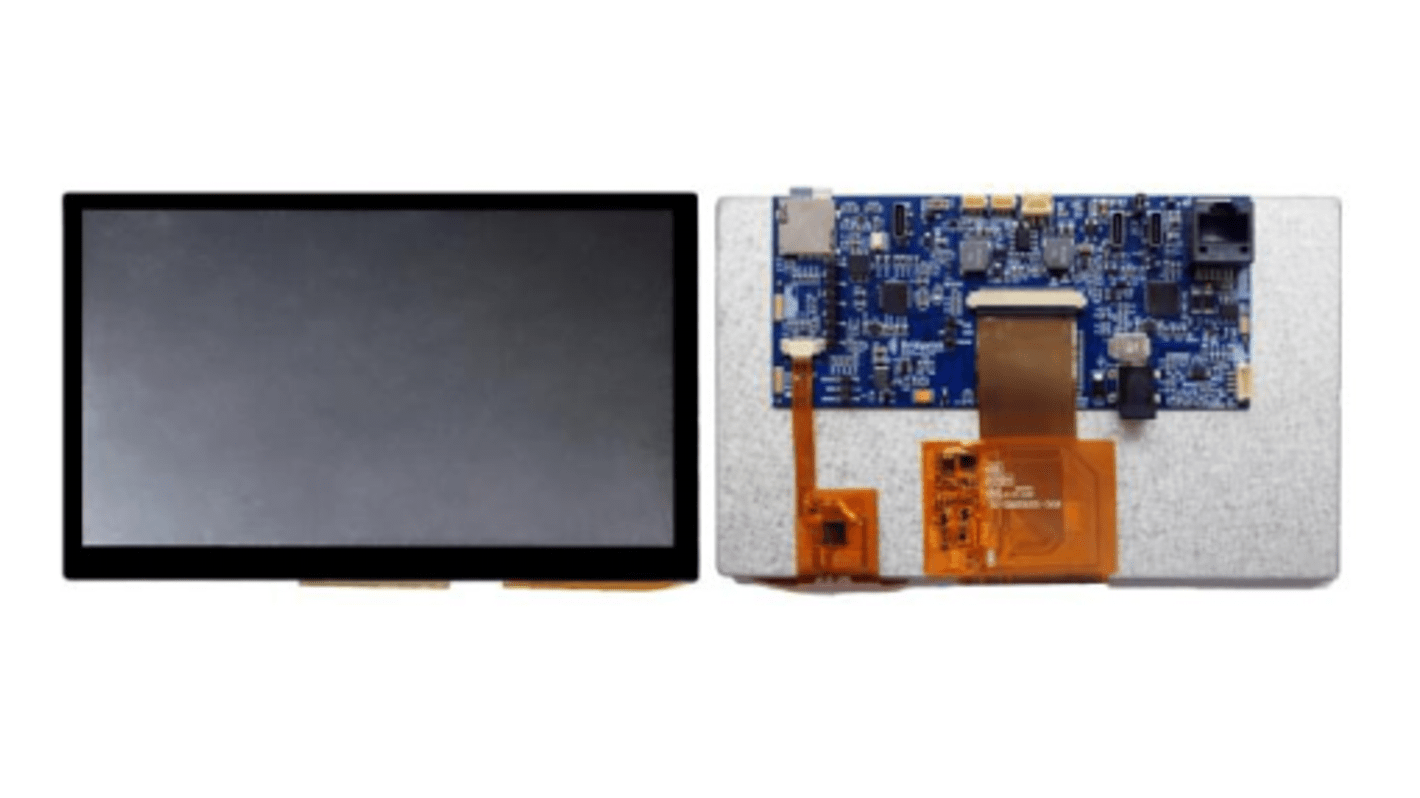

The Bridgetek intelligent display module featuring a 7 inch capacitive touch panel. The module carries the latest generation EVE4 controller BT817 supported by a low-cost high performance RP2040 microcontroller. The on-board RS485 transceiver allows communication with Long Distance Sensor Bus (LDSBus) devices or DMX512 devices through Cat 5/6 cables over an RJ45 connector. With the use of a Raspberry Pi MCU RP2040, the IDM2040-7A module allows easy programming with various circuit python or micro python libraries.
FT232HP high speed USB connectivity with embedded USB PD support
USB type C connectivity throughout for connection reliability
RJ45 connector for controlling LDSBus or DMX512 devices
DC-jack for up to 24V PSU
Micro-SD card socket
SPI pin headers for Adafruit Wi-Fi module or other peripherals
Hardware RESET button
RP2040 DFU button
On board audio power amplifier and audio connector for external speaker and audio line in
USB type C connectivity throughout for connection reliability
RJ45 connector for controlling LDSBus or DMX512 devices
DC-jack for up to 24V PSU
Micro-SD card socket
SPI pin headers for Adafruit Wi-Fi module or other peripherals
Hardware RESET button
RP2040 DFU button
On board audio power amplifier and audio connector for external speaker and audio line in
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
