Bridgetek IDM2040-43A TFT LCD Display Touch Screen, 4.3 in, 480 x 272 pixel

RS 제품 번호:: 351-810
제조사 부품 번호:: IDM2040-43A
제조업체:: Bridgetek

Bridgetek IDM2040-43A TFT LCD Display Touch Screen, 4.3 in, 480 x 272 pixel

Subtotal (1 unit)*

₩339,300.00

마지막 RS 재고

최종적인 1 개 unit(s)이 배송 준비 됨

수량	한팩당
1 +	₩339,300.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 351-810
제조사 부품 번호:: IDM2040-43A
제조업체:: Bridgetek

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Bridgetek
	Product Type	TFT LCD Display
	Diagonal Display Size	4.3in
	Interface Type	Ethernet, USB
	Screen Resolution	480 x 272 pixel
	Current	260mA
	Touch Screen	Yes
	Viewing Area Dimensions	95.04 x 53.86 mm
	Touch Screen Type	5-Finger Capacitive
	Backlight Type	LED
	Minimum Supply Voltage	4.5V
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	70°C
	Width	132.7mm
	Standards/Approvals	RoHS, UKCA, CE, FCC
	Height	93.5mm
	Depth	26mm
	Brightness	450cd/m²
	Display Type	TFT
	Series	IDM2040
	Contrast Ratio	500:1

	모두 선택
	브랜드 Bridgetek
	Product Type TFT LCD Display
	Diagonal Display Size 4.3in
	Interface Type Ethernet, USB
	Screen Resolution 480 x 272 pixel
	Current 260mA
	Touch Screen Yes
	Viewing Area Dimensions 95.04 x 53.86 mm
	Touch Screen Type 5-Finger Capacitive
	Backlight Type LED
	Minimum Supply Voltage 4.5V
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 70°C
	Width 132.7mm
	Standards/Approvals RoHS, UKCA, CE, FCC
	Height 93.5mm
	Depth 26mm
	Brightness 450cd/m²
	Display Type TFT
	Series IDM2040
	Contrast Ratio 500:1

Datasheet - IDM2040-43A

COO (Country of Origin):: CN

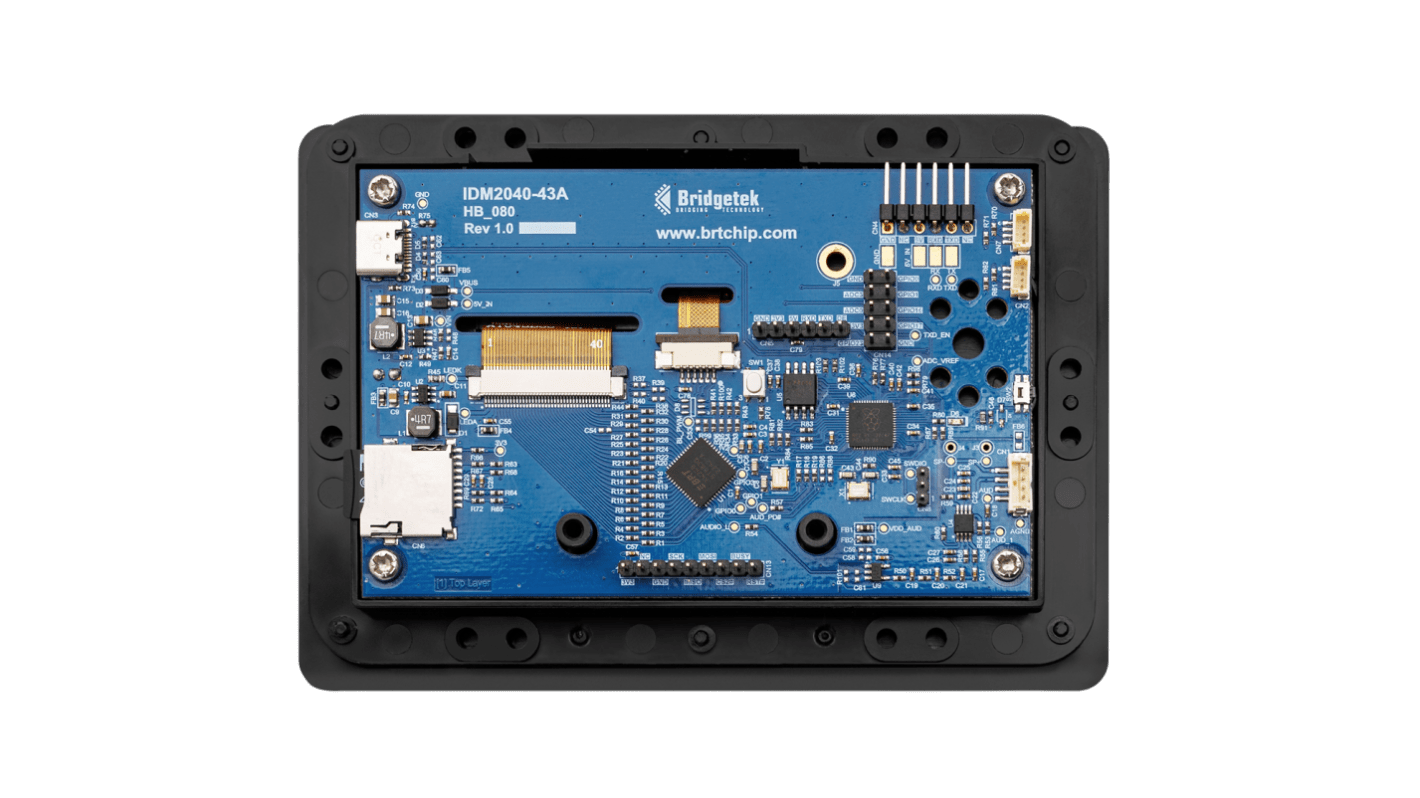

The Bridgetek intelligent display module featuring a 4.3 inch 480x272 resolution TFT LCD panel with capacitive touch panel. The module carries Bridgetek's new embedded video engine controller BT883Q supported by a low-cost high-performance Raspberry PI RP2040 microcontroller. Apart from on board UART, I2C and SPI interfaces, users can also extend communication with two add-on accessories board to include RS232 and RS485 channels. The input power source can either be from USB host or charger or UART-SIP connector.

SPI pin headers for Adafruit Wi-Fi module or other peripherals

6-position header for mating with FTDI TTL cables

RS232 transceiver adaptor (optional add-on module)

RS485 transceiver adaptor (optional add-on module)

Hardware reset button

RP2040 DFU button

Precision fitted bezel in black

CE, FCC and UKCA certified

Bridgetek IDM2040-43A TFT LCD Display Touch Screen, 4.3 in, 480 x 272 pixel
