4D Systems 4DLCD-24320240-IPS TFT LCD Display, 60.96 mm, 240 x 320 pixel
- RS 제품 번호:
- 230-9319
- 제조사 부품 번호:
- 4DLCD-24320240-IPS
- 제조업체:
- 4D Systems
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩39,220.00
재고있음
- 추가로 2026년 11월 23일 부터 3 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩39,220.00 |
| 5 - 9 | ₩39,120.00 |
| 10 + | ₩38,220.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 230-9319
- 제조사 부품 번호:
- 4DLCD-24320240-IPS
- 제조업체:
- 4D Systems
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | 4D Systems | |
| Product Type | TFT LCD Display | |
| Diagonal Display Size | 60.96mm | |
| Interface Type | SPI | |
| Screen Resolution | 240 x 320 pixel | |
| Current | 80mA | |
| Touch Screen | No | |
| Viewing Area Dimensions | 36.72 x 48.96 mm | |
| Backlight Type | LED | |
| Minimum Supply Voltage | 2.8V | |
| Maximum Supply Voltage | 3.3V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 60.26mm | |
| Width | 42.72mm | |
| Standards/Approvals | CE, RoHS Compliant | |
| Depth | 48.96mm | |
| Brightness | 320cd/m² | |
| Series | 4DLCD | |
| Power Supply Included | No | |
| Contrast Ratio | 800:1 | |
| Display Type | TFT | |
| 모두 선택 | ||
|---|---|---|
브랜드 4D Systems | ||
Product Type TFT LCD Display | ||
Diagonal Display Size 60.96mm | ||
Interface Type SPI | ||
Screen Resolution 240 x 320 pixel | ||
Current 80mA | ||
Touch Screen No | ||
Viewing Area Dimensions 36.72 x 48.96 mm | ||
Backlight Type LED | ||
Minimum Supply Voltage 2.8V | ||
Maximum Supply Voltage 3.3V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Height 60.26mm | ||
Width 42.72mm | ||
Standards/Approvals CE, RoHS Compliant | ||
Depth 48.96mm | ||
Brightness 320cd/m² | ||
Series 4DLCD | ||
Power Supply Included No | ||
Contrast Ratio 800:1 | ||
Display Type TFT | ||
- COO (Country of Origin):
- AU

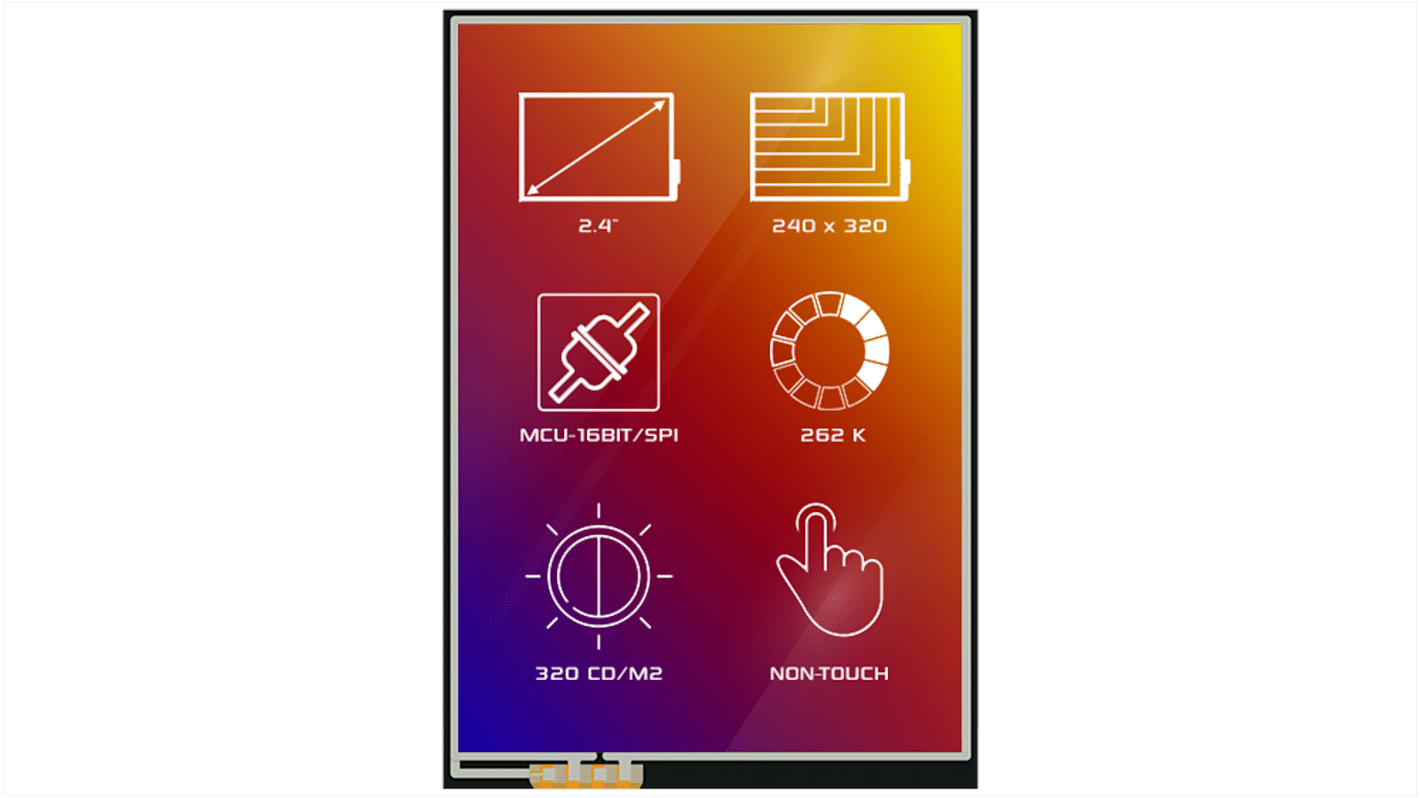

The 4D Systems color active-matrix LCD module incorporating amorphous silicon TFT IPS (Thin Film Transistor). It is composed of a color IPSTFT-LCD panel, driver IC, FPC and a backlight unit. The module display area contains 240X320 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion. \This is a Raw TFT Display, it features no processor and cannot be programmed directly. It needs to be coupled with a Processor and circuitry capable of driving this type of display. For complete modules ready to go, please refer to our Intelligent Display Module products.
RoHS compliant
LED backlight
Operating temperature range from -20 to +70°C
This is a Non-Touch display
The IPS Panel provides wide viewing angles
