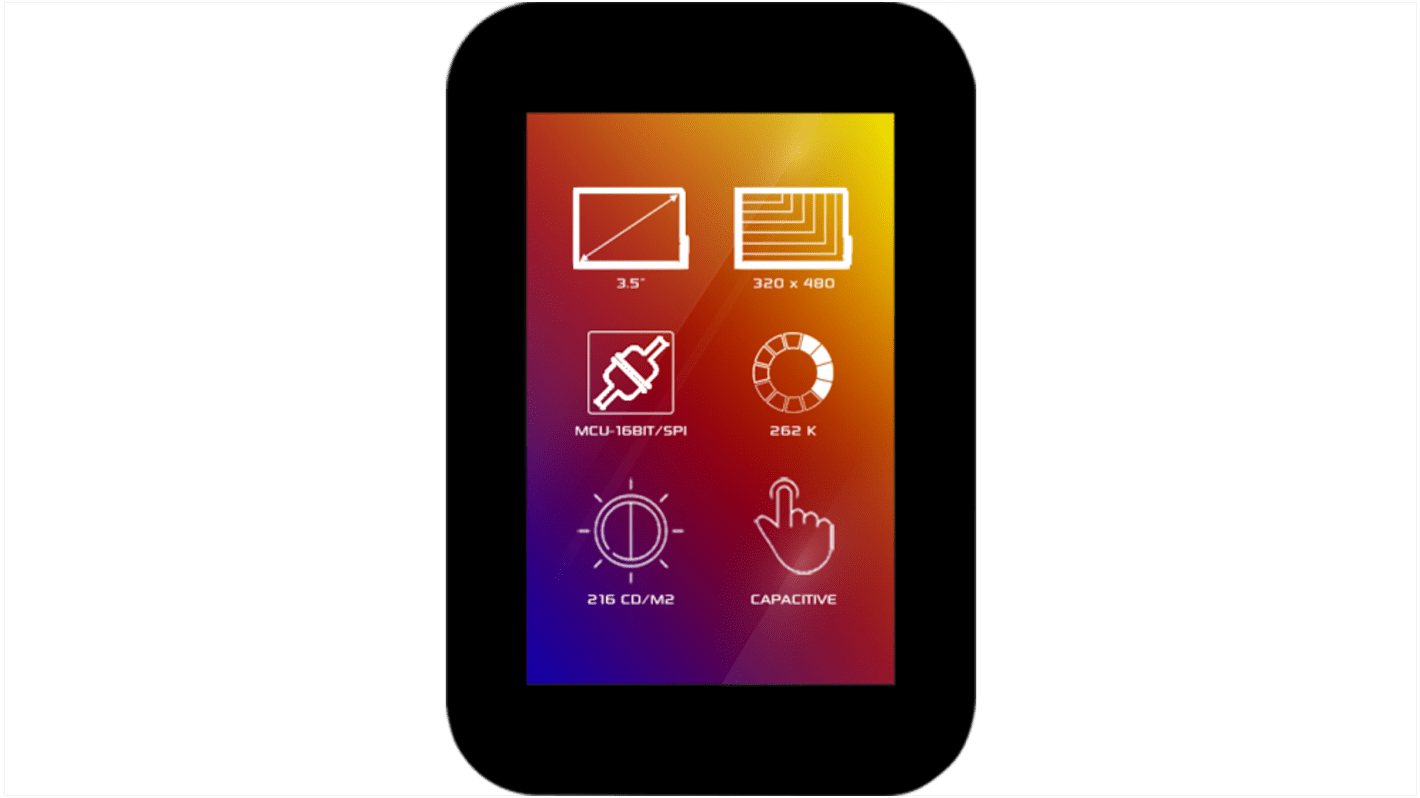

4D Systems 4DLCD-35480320-CTP-CLB-IPS TFT TFT LCD Display / Touch Screen, 3.5in, 320 x 480pixels

모든 LCD Colour Displays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩73,207.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩73,207.20
5 - 9₩70,387.20
10 +₩67,586.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
230-9321
제조사 부품 번호:
4DLCD-35480320-CTP-CLB-IPS
제조업체:
4D Systems
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

4D Systems

Diagonal Display Size

3.5in

Interface Type

SPI

Resolution

320 x 480pixels

Touch Screen

Yes

Viewing Area Dimensions

48.96 x 73.44mm

Supply Voltage

2.8 V

Touch Screen Type

Capacitive

Backlight Type

LED

Display Mode

Transmissive

Dimensions

72.10 x 104.20 x 4.05mm

Display Matrix Technology

TFT

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

Brightness

295cd/m²

Height

104.2mm

Width

72.1mm

Number of Colours

262K

Contrast Ratio

1000

Viewing Area Height

73.44mm

Series

4DLCD

Display Type

TFT

Operating Temperature Range

-20 → +70°C

Depth

4.05mm

Standards Met

CE, RoHS Compliant

Response Time

30ms

Current Rating

120mA

Power Supply Included

No

Viewing Area Width

48.96mm

Voltage Rating

2.8V

COO (Country of Origin):
CN
The 4D Systems color active-matrix LCD module incorporating amorphous silicon TFT IPS (Thin Film Transistor). It is composed of a color IPSTFT-LCD panel, driver IC, FPC and a backlight unit. The module display area contains 320 x 480 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion. This is a Raw TFT Display, it features no processor and cannot be programmed directly. It needs to be coupled with a Processor and circuitry capable of driving this type of display. For complete modules ready to go, please refer to our Intelligent Display Module products.

RoHS compliant
LED backlight
Operating temperature range from -20 to +70°C
This is a Capacitive Touch display with Cover Lens Bezel
