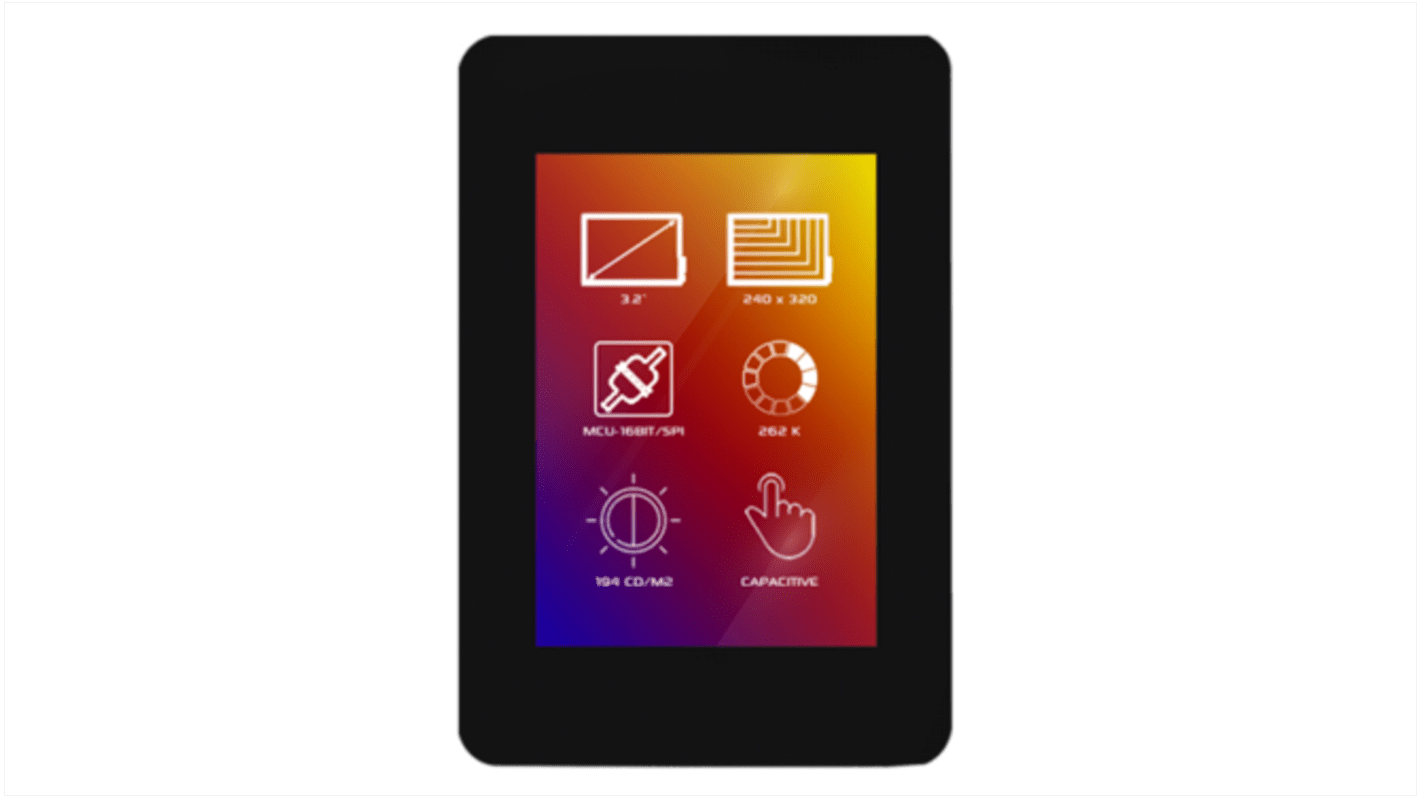

4D Systems 4DLCD-32320240-CTP-CLB TFT LCD Colour Display / Touch Screen, 3.2in, 240 x 320pixels
- RS 제품 번호:
- 205-8695
- 제조사 부품 번호:
- 4DLCD-32320240-CTP-CLB
- 제조업체:
- 4D Systems
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩72,641.32
재고있음
- 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩72,641.32 |
| 10 - 24 | ₩69,736.72 |
| 25 - 49 | ₩66,830.24 |
| 50 + | ₩65,377.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 205-8695
- 제조사 부품 번호:
- 4DLCD-32320240-CTP-CLB
- 제조업체:
- 4D Systems
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | 4D Systems | |
| Diagonal Display Size | 3.2in | |
| Resolution | 240 x 320pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 48.60 x 64.80mm | |
| Touch Screen Type | Capacitive | |
| Supply Voltage | 2.8V | |
| Display Mode | Normally White, Transmissive | |
| Dimensions | 72.60 x 98.80 x 4.52mm | |
| Display Matrix Technology | TFT | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Brightness | 190cd/m² | |
| Viewing Area Height | 64.80mm | |
| Viewing Area Width | 48.60mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 4D Systems | ||
Diagonal Display Size 3.2in | ||
Resolution 240 x 320pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 48.60 x 64.80mm | ||
Touch Screen Type Capacitive | ||
Supply Voltage 2.8V | ||
Display Mode Normally White, Transmissive | ||
Dimensions 72.60 x 98.80 x 4.52mm | ||
Display Matrix Technology TFT | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Brightness 190cd/m² | ||
Viewing Area Height 64.80mm | ||
Viewing Area Width 48.60mm | ||
- COO (Country of Origin):
- AU
3.2” TFT Liquid Crystal Display
4DLCD-32320240-CTP-CLB is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a backlight unit.
The module display area contains 240X320 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.
This is a Capacitive Touch display with Cover Lens Bezel.
This is a Raw TFT Display, it features no processor and cannot be programmed directly. It needs to be coupled with a Processor and circuitry capable of driving this type of display. For complete modules ready to go, please refer to our Intelligent Display Module products.
The module display area contains 240X320 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.
This is a Capacitive Touch display with Cover Lens Bezel.
This is a Raw TFT Display, it features no processor and cannot be programmed directly. It needs to be coupled with a Processor and circuitry capable of driving this type of display. For complete modules ready to go, please refer to our Intelligent Display Module products.
Features
- 3.2" Colour active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor).
- It is composed of a color TFT-LCD panel, driver IC, FPC and a backlight unit.
- The module display area contains 240X320 pixels.
- Capacitive Touch and Cover Lens Bezel
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
