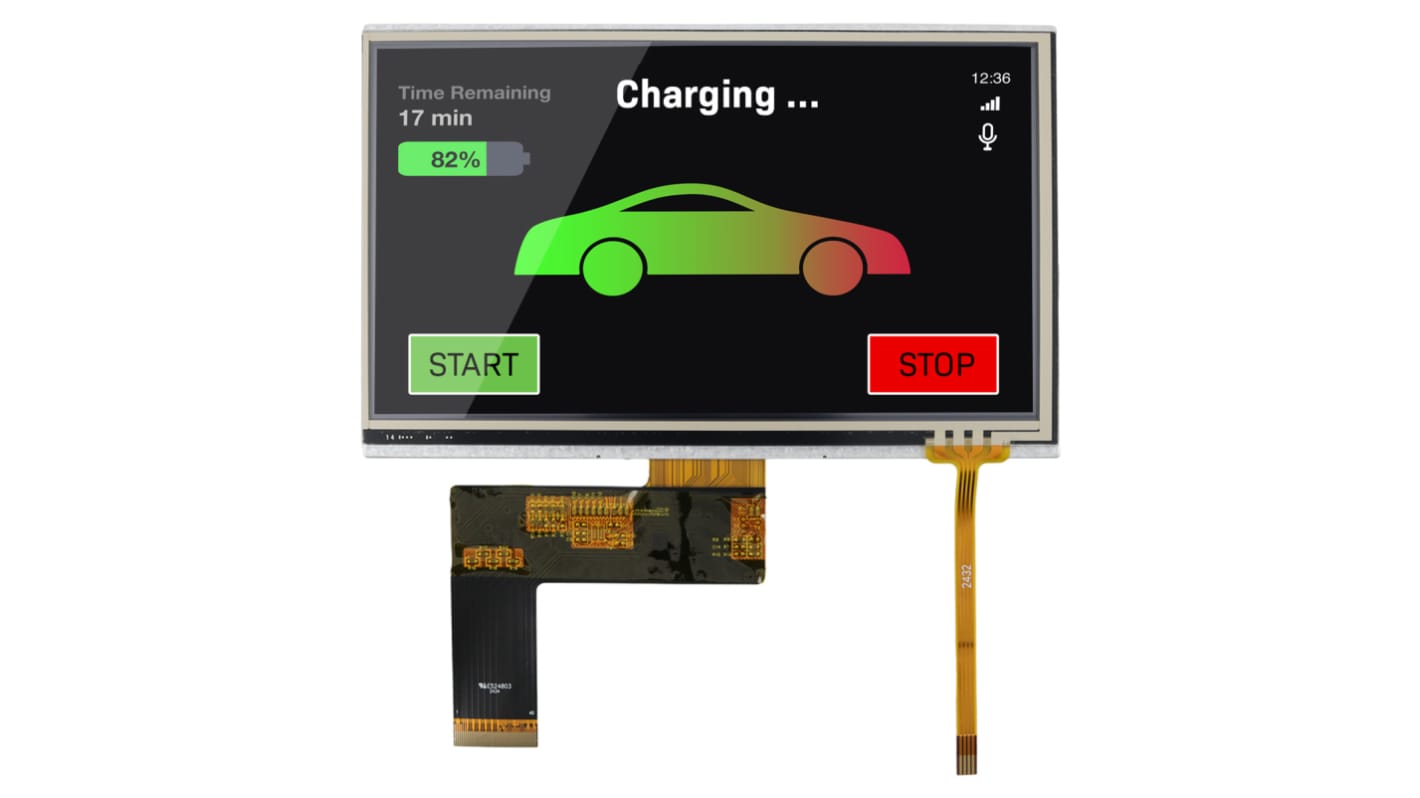

NEWHAVEN DISPLAY INTERNATIONAL NHD-7.0-800480AF-LSXP-T LCD Display Module Touch Screen, 7 in, 800 x 480
- RS 제품 번호:
- 331-034
- 제조사 부품 번호:
- NHD-7.0-800480AF-LSXP-T
- 제조업체:
- NEWHAVEN DISPLAY INTERNATIONAL
Subtotal (1 unit)*
₩152,660.00
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩152,660.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 331-034
- 제조사 부품 번호:
- NHD-7.0-800480AF-LSXP-T
- 제조업체:
- NEWHAVEN DISPLAY INTERNATIONAL
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NEWHAVEN DISPLAY INTERNATIONAL | |
| Product Type | LCD Display Module | |
| Diagonal Display Size | 7in | |
| Interface Type | LVDS | |
| Current | 135mA | |
| Screen Resolution | 800 x 480 | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 156.68 x 88.519 mm | |
| Touch Screen Type | Resistive | |
| Minimum Supply Voltage | 3.1V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS, REACH | |
| Brightness | 780cd/m² | |
| Contrast Ratio | 800:1000 | |
| Display Type | TFT | |
| 모두 선택 | ||
|---|---|---|
브랜드 NEWHAVEN DISPLAY INTERNATIONAL | ||
Product Type LCD Display Module | ||
Diagonal Display Size 7in | ||
Interface Type LVDS | ||
Current 135mA | ||
Screen Resolution 800 x 480 | ||
Touch Screen Yes | ||
Viewing Area Dimensions 156.68 x 88.519 mm | ||
Touch Screen Type Resistive | ||
Minimum Supply Voltage 3.1V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS, REACH | ||
Brightness 780cd/m² | ||
Contrast Ratio 800:1000 | ||
Display Type TFT | ||
- COO (Country of Origin):
- CN
The NEWHAVEN DISPLAY INTERNATIONAL 7.0-inch IPS TFT display module with Resistive Touch that offers exceptional visual performance. With a resolution of 800x480 pixels, this display provides crisp and vibrant images. The resistive touch technology ensures smooth and accurate touch input, making it ideal for various applications. Operating at a voltage of 3.3V, this display offers low power consumption while delivering stunning picture quality. Equipped with LVDS interface and a TFT Driver IC ST7277 controller, this display ensures smooth and accurate color reproduction. Its 40-pin connector and conductor FFC make it easy to integrate into various applications. This display has additional design improvements including built-in EMI shielding and a high brightness backlight. Whether it's for industrial equipment, HMI applications, Portable Medical Equipment, or other display-related projects, it is an excellent choice for those seeking a high-quality display solution.
7 inch diagonal
Display Format 800x480 pixels
Viewing Area 156.68mm x 88.519mm
Active Area 153.84mm x 85.63mm
LVDS interface
With a full viewing angle, users can enjoy clear and detailed visuals from any perspective
