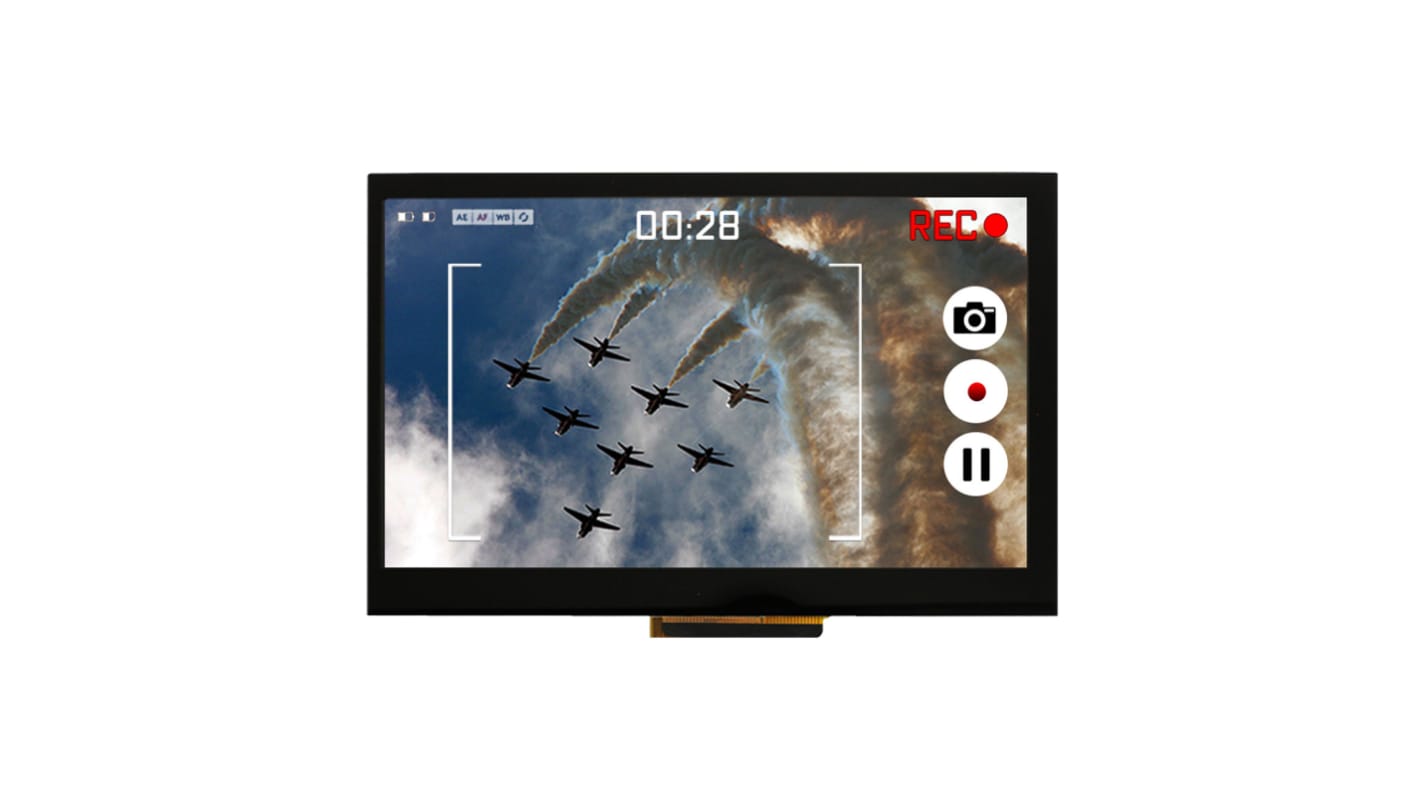

NEWHAVEN DISPLAY INTERNATIONAL NHD-7.0-800480EF-ASXV#-CTP LCD Colour Display Touch Screen, 7 in, 800 x 480 pixel
- RS 제품 번호:
- 264-4037
- 제조사 부품 번호:
- NHD-7.0-800480EF-ASXV#-CTP
- 제조업체:
- NEWHAVEN DISPLAY INTERNATIONAL
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 264-4037
- 제조사 부품 번호:
- NHD-7.0-800480EF-ASXV#-CTP
- 제조업체:
- NEWHAVEN DISPLAY INTERNATIONAL
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NEWHAVEN DISPLAY INTERNATIONAL | |
| Product Type | LCD Colour Display | |
| Diagonal Display Size | 7in | |
| Interface Type | RGB | |
| Current | 180mA | |
| Screen Resolution | 800 x 480 pixel | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 154.84 x 86.63 mm | |
| Touch Screen Type | Capacitive | |
| Backlight Type | LED | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Supply Voltage | 3.3V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS Compliant | |
| Brightness | 660cd/m² | |
| Series | NHD | |
| Power Supply Included | Yes | |
| Contrast Ratio | 500:1 | |
| Display Type | TFT | |
| 모두 선택 | ||
|---|---|---|
브랜드 NEWHAVEN DISPLAY INTERNATIONAL | ||
Product Type LCD Colour Display | ||
Diagonal Display Size 7in | ||
Interface Type RGB | ||
Current 180mA | ||
Screen Resolution 800 x 480 pixel | ||
Touch Screen Yes | ||
Viewing Area Dimensions 154.84 x 86.63 mm | ||
Touch Screen Type Capacitive | ||
Backlight Type LED | ||
Minimum Supply Voltage 3.3V | ||
Maximum Supply Voltage 3.3V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS Compliant | ||
Brightness 660cd/m² | ||
Series NHD | ||
Power Supply Included Yes | ||
Contrast Ratio 500:1 | ||
Display Type TFT | ||
- COO (Country of Origin):
- CN
The NEWHAVEN DISPLAY INTERNATIONAL premium 800 x 480 resolution TFT display provides high brightness and contrast with optimal viewing up to 70° from any direction because of the multi-domain vertical alignment (MVA) technology in this LCD display. This 24-bit true color display is RoHS compliant with RGB interface. It has a 10-point multi-touch capacitive touchscreen.
7 in diagonal display
A built-in driver or no controller
