제조사부품번호

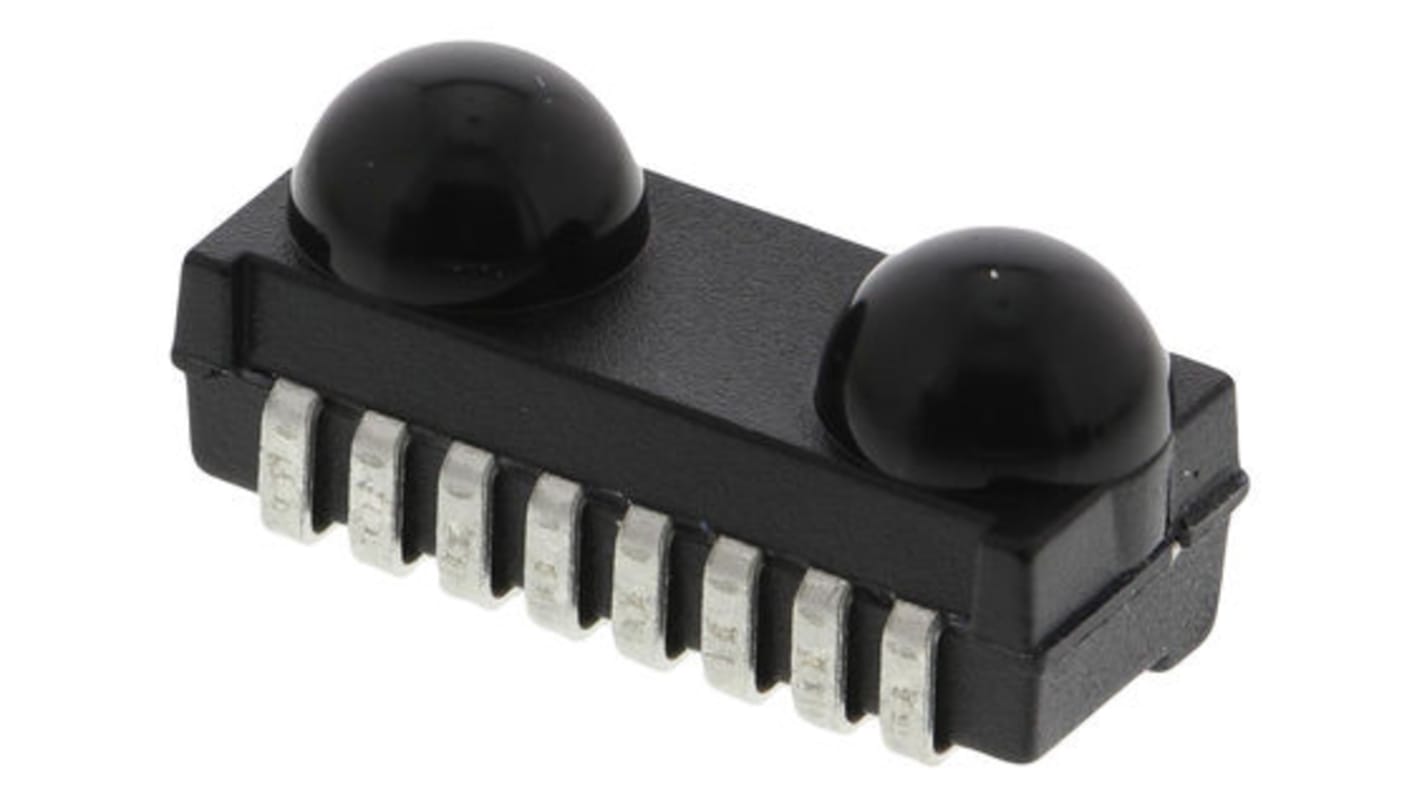

Vishay, Infrared Transceiver ±24 ° Yes, 900 nm 115.2 kbps, 1 m Range 115.2 kbps, Surface Mount 4.7 mm 9.9 mm 4.7 mm

RS 제품 번호:: 919-4444
제조사 부품 번호:: TFDU4101-TR3
제조업체:: Vishay

Vishay, Infrared Transceiver ±24 ° Yes, 900 nm 115.2 kbps, 1 m Range 115.2 kbps, Surface Mount 4.7 mm 9.9 mm 4.7 mm

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 reel of 1000 units)*

₩4,775,200.00

마지막 RS 재고

최종적인 2,000 개 unit(s)이 배송 준비 됨

수량	한팩당	릴당*
1000 - 1000	₩4,775.20	₩4,775,200.00
2000 - 3000	₩4,679.32	₩4,679,696.00
4000 +	₩4,585.32	₩4,586,072.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 919-4444
제조사 부품 번호:: TFDU4101-TR3
제조업체:: Vishay

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Vishay
	Maximum Transmission Distance	1m
	Product Type	Infrared Transceiver
	Emitter Peak Wavelength	900nm
	Maximum Data Receiving Rate	115.2kbps
	Packaging	Tape & Reel
	Mount Type	Surface Mount
	Number of Pins	8
	Package Type	Ultra Small Profile
	Minimum Supply Voltage	2.4V
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	30°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	2006/25/EC Exempt, IEC 62471 Exempt, IEC/EN 60825-1 Class 1
	Width	4.7 mm
	Length	9.9mm
	Height	4.7mm
	Emitter Angle of Half Intensity	±24 °
	Supply Current	0.07mA
	IrDA Compliance	Yes
	Automotive Standard	No
	Series	TFDU4101
	Maximum Data Transmission Rate	115.2kbps

	모두 선택
	브랜드 Vishay
	Maximum Transmission Distance 1m
	Product Type Infrared Transceiver
	Emitter Peak Wavelength 900nm
	Maximum Data Receiving Rate 115.2kbps
	Packaging Tape & Reel
	Mount Type Surface Mount
	Number of Pins 8
	Package Type Ultra Small Profile
	Minimum Supply Voltage 2.4V
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature 30°C
	Maximum Operating Temperature 85°C
	Standards/Approvals 2006/25/EC Exempt, IEC 62471 Exempt, IEC/EN 60825-1 Class 1
	Width 4.7 mm
	Length 9.9mm
	Height 4.7mm
	Emitter Angle of Half Intensity ±24 °
	Supply Current 0.07mA
	IrDA Compliance Yes
	Automotive Standard No
	Series TFDU4101
	Maximum Data Transmission Rate 115.2kbps

Datasheet

COO (Country of Origin):: PH

TFDU4101 IrDA Transceiver Module

Integrated within the transceiver module are a photo PIN diode, an infrared emitter (IRED), and a low-power control IC to provide a total front-end solution in a single package.

supports IrDA speeds up to 115.2 kbit/s (SIR)

Operates from 2.4 to 5.5V

Split power supply, transmitter and receiver can be operated from two power supplies

Low power consumption

Power shutdown mode

Surface mount package dimensions 9.7x4.7x4.0mm

Vishay, Infrared Transceiver ±24 ° Yes, 900 nm 115.2 kbps, 1 m Range 115.2 kbps, Surface Mount 4.7 mm 9.9 mm 4.7 mm

TFDU4101 IrDA Transceiver Module
