제조사부품번호

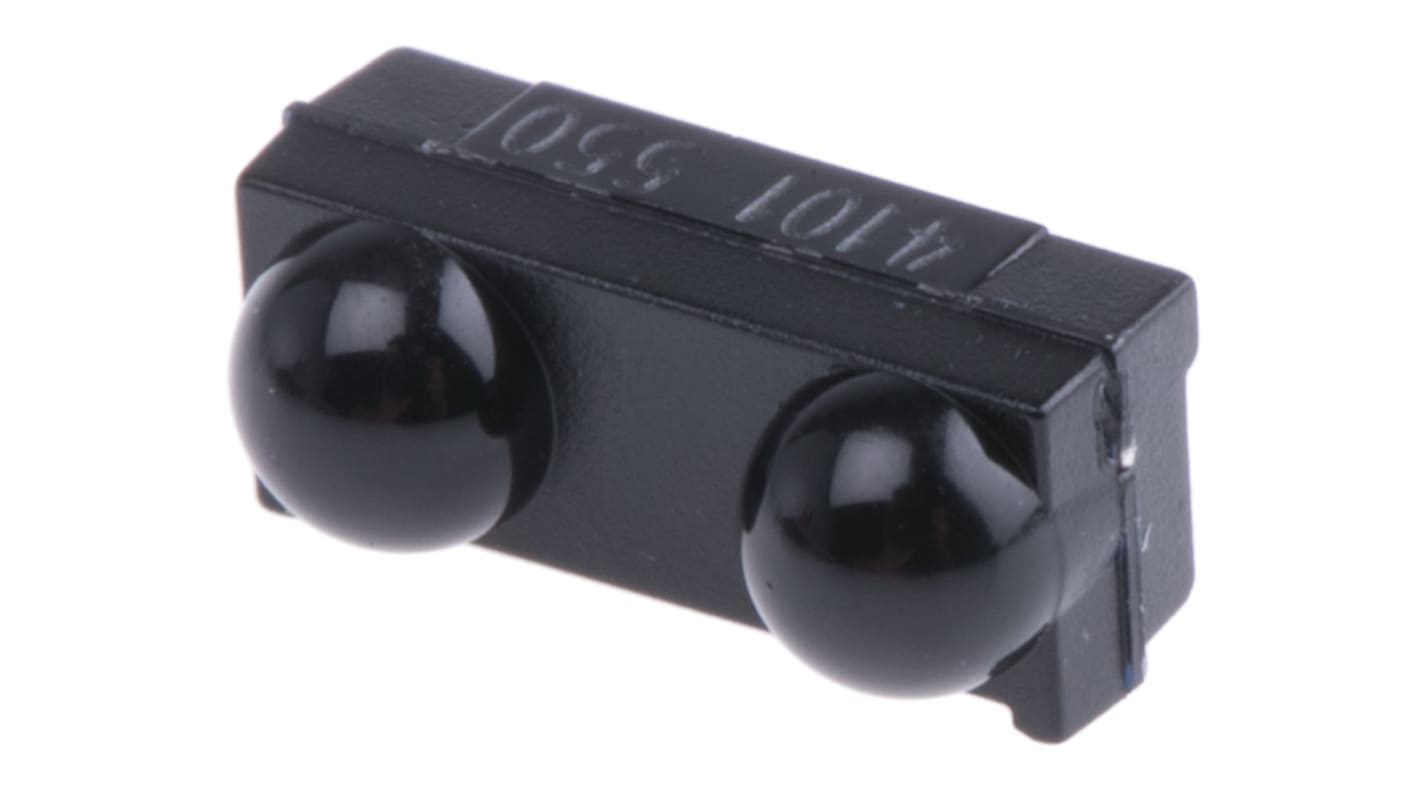

TFDU4101-TR3 Vishay, Infrared Transceiver, 900nm 115.2kbit/s, 1m Range, SMT, 9.7 x 4.7 x 4mm

RS 제품 번호:: 404-691P
제조사 부품 번호:: TFDU4101-TR3
제조업체:: Vishay

TFDU4101-TR3 Vishay, Infrared Transceiver, 900nm 115.2kbit/s, 1m Range, SMT, 9.7 x 4.7 x 4mm

대량 구매 할인 기용 가능

Subtotal 250 units (supplied on a reel)*

₩1,687,300.00

마지막 RS 재고

최종적인 2,359 개 unit(s)이 배송 준비 됨

수량	한팩당
250 - 499	₩6,749.20
500 +	₩6,617.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 404-691P
제조사 부품 번호:: TFDU4101-TR3
제조업체:: Vishay

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Vishay
	Maximum Transmission Distance	1m
	Emitter Peak Wavelength	900nm
	Maximum Data Receiving Rate	115.2kbit/s
	Mounting Type	Surface Mount
	Number of Pins	8
	Package Type	Ultra Small Profile
	Dimensions	9.7 x 4.7 x 4mm
	Height	4.7mm
	Length	9.9mm
	Width	4.2mm

	모두 선택
	브랜드 Vishay
	Maximum Transmission Distance 1m
	Emitter Peak Wavelength 900nm
	Maximum Data Receiving Rate 115.2kbit/s
	Mounting Type Surface Mount
	Number of Pins 8
	Package Type Ultra Small Profile
	Dimensions 9.7 x 4.7 x 4mm
	Height 4.7mm
	Length 9.9mm
	Width 4.2mm

Datasheet

TFDU4101 IrDA Transceiver Module

Integrated within the transceiver module are a photo PIN diode, an infrared emitter (IRED), and a low-power control IC to provide a total front-end solution in a single package.

supports IrDA speeds up to 115.2 kbit/s (SIR)
Operates from 2.4 to 5.5V
Split power supply, transmitter and receiver can be operated from two power supplies
Low power consumption
Power shutdown mode
Surface mount package dimensions 9.7´4.7´4.0mm

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Transceivers

TFDU4101-TR3 Vishay, Infrared Transceiver, 900nm 115.2kbit/s, 1m Range, SMT, 9.7 x 4.7 x 4mm

TFDU4101 IrDA Transceiver Module

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
