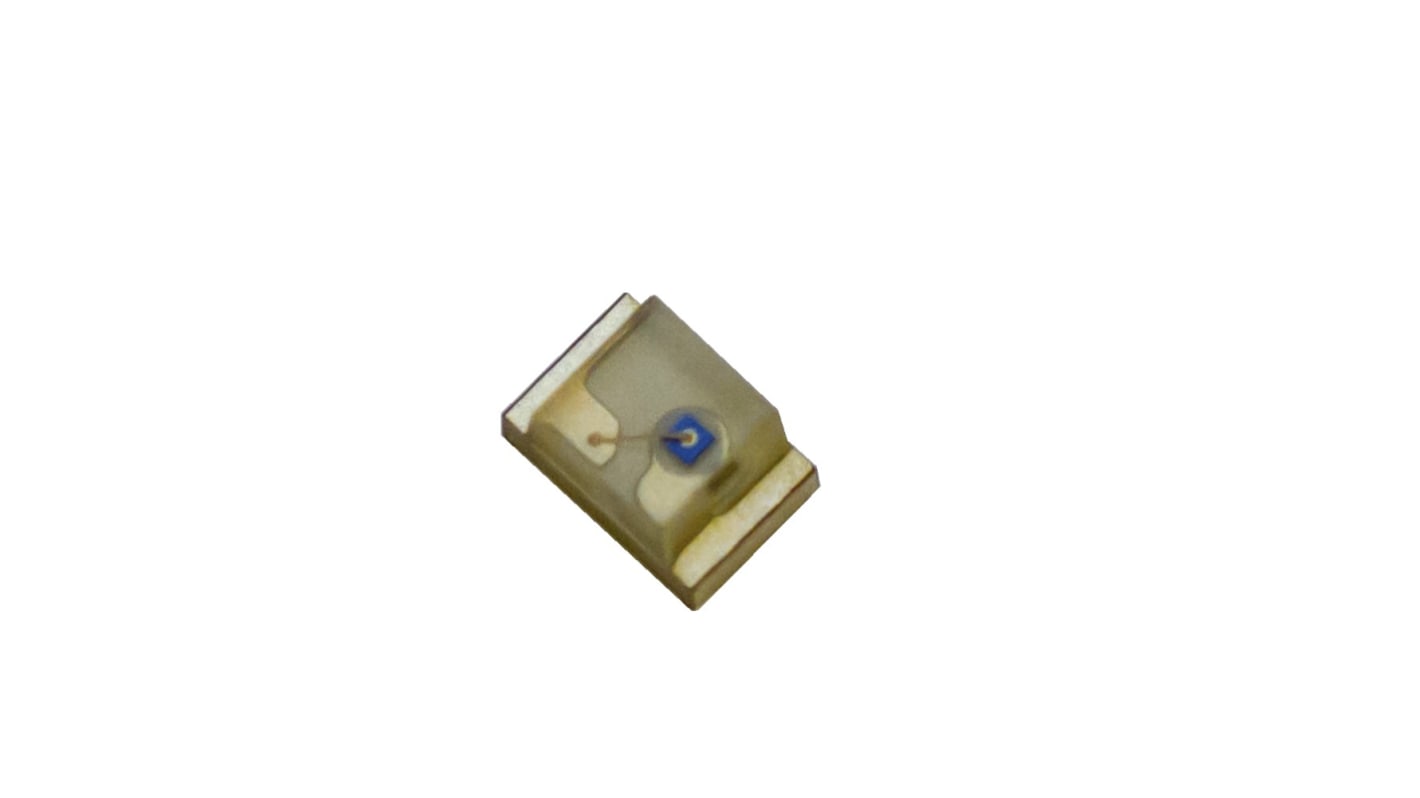

OIS-170-IT940-X-T OSA Opto, OIS-170 940nm IR LED, 0805 SMD package

모든 IR LEDs 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
포장 옵션
RS 제품 번호:
173-6338P
제조사 부품 번호:
OIS-170-IT940-X-T
제조업체:
OSA Opto
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

OSA Opto

Peak Wavelength

940nm

Package Type

0805

Radiant Intensity

4.2mW/sr

Mounting Type

Surface Mount

Number of LEDs

1

Number of Pins

2

Dimensions

1.9 x 1.2 x 1.2mm

Lens Shape

Square

Series

OIS-170

LED Material

AlInGaP, GaAlAs, GaP, InGaN

Maximum Supply Voltage

1.8V

We develop and manufacture special, custom designed and standard High Brightness & High Power LED-Chips , SMD-LEDs and LED-Lamps in the colors white, uv 265-420nm ,vis 420-660nm and ir 660-1650nm. Our custom designed LED-Modules for OEMs are an efficient way for luminaries and other lighting applications.

package: 0805
size: 1.9mm x 1.2mm x 1.2mm
view angle: 140°
technology: GaP, AlInGaP, GaAlAs and InGaN
(un)colored, (un)diffused encapsulation available
soldering pads: gold plated
suitable for all SMT assembly methods

package: 0805
size: 1.9mm x 1.2mm x 1.2mm
circuit substrate:glass laminated epoxy
lead free solderable, soldering pads: Gold plated
taped in 8 mm blister tape, cathod to transporting perforation
all devices sorted into luminous intensity classes

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
