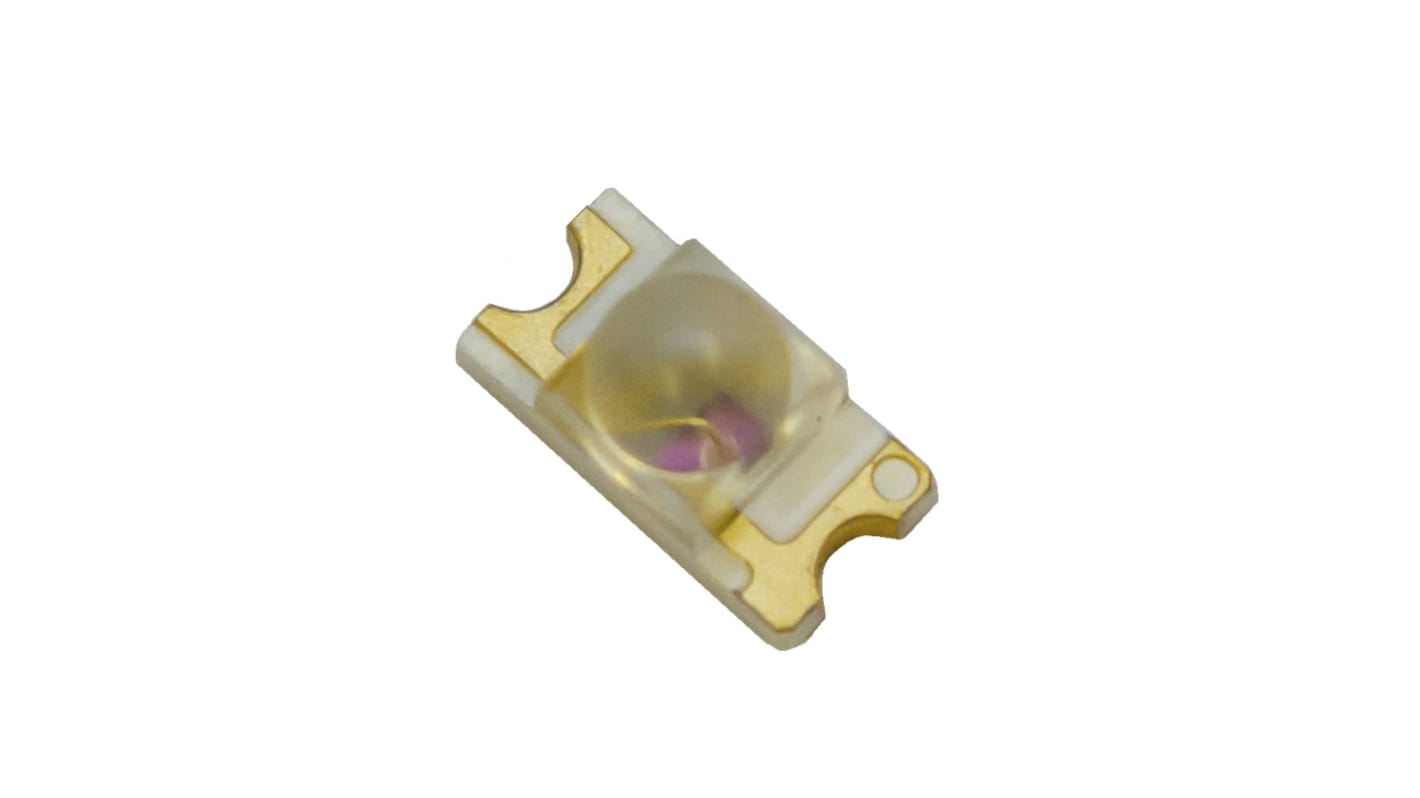

OIS-330-1550p-X-TU EPIGAP OSA Photonics, OIS-330 1550nm IR LED, 1206 SMD package

모든 IR LEDs 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
173-6270
제조사 부품 번호:
OIS-330-1550p-X-TU
제조업체:
EPIGAP OSA Photonics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

EPIGAP OSA Photonics

Peak Wavelength

1550nm

Package Type

1206

Mounting Type

Surface Mount

Number of LEDs

1

Number of Pins

2

Dimensions

3.2 x 1.6 x 1.2mm

Lens Shape

Dome

Series

OIS-330

LED Material

AlInGaP, GaAlAs, GaP, InGaN

OSA Opto IR LED


The OSA OIS-330 series is a 1550nm wavelength, surface mount dome shape IR LED. It is an SSL (Solid State Lighting) type of LED that sends out light with longer wavelengths than the visible light. This LED is 1206 packaged. It has a forward voltage of rating of 1.05V and a forward current rating of 70mA. This IR LED is used in luminaries and other lighting applications.

Features and Benefits


• All the devices are sorted into luminous intensity classes
• Circuit substrate- Glass laminated epoxy
• Face-up or face-down taping possible
• It uses GaP, AlInGaP, GaAlAs and InGaN LED material
• Lead free solder able, gold-plated soldering pads
• Taped in 8mm blister tape, cathode to transporting perforation
• View angle is 40°
• With lens, mounting from the backside of PCB
