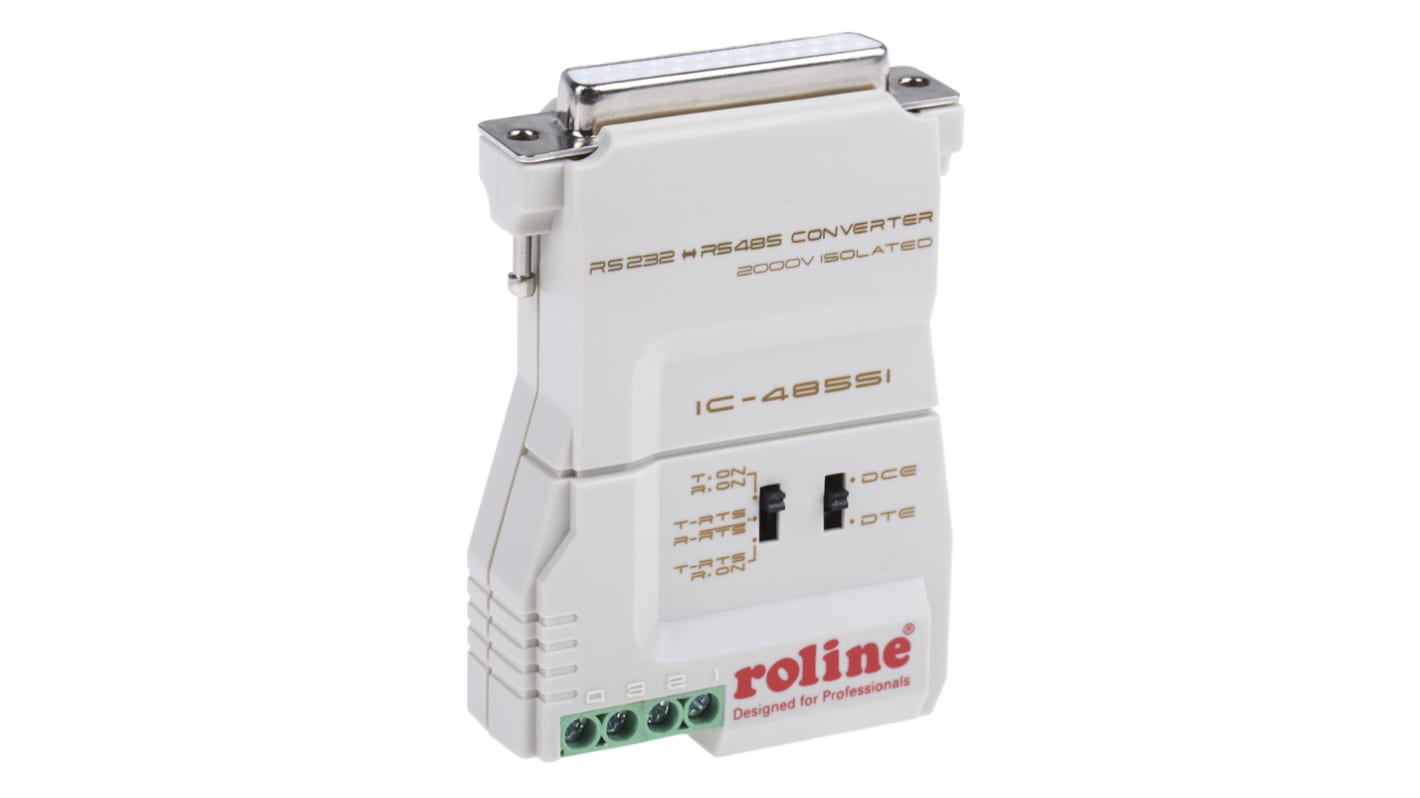

Roline RS232, RS485 Interface Converter 1

본 제품군 열람하기

Subtotal (1 unit)*

₩205,784.80

Add to Basket
수량 선택 또는 입력
단종되는 중
  • 최종적인 4 개 unit(s)이 배송 준비 됨
수량
한팩당
1 +₩205,784.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
255-9762
제조업체:
Roline
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Roline

Bus Type

RS232, RS485

Product Type

Interface Converter

Input Port

RS232

Output Port

Terminal Block

Number of Ports

1

Maximum Baud Rate

100kbps

Standards/Approvals

Class A computing device (FCC Subpart J of Part 15)

COO (Country of Origin):
CN

Roline RS232C TO RS485 Interface Converters


The Roline serial converter allows data to be exchanged between the RS232C and RS485 interfaces, commonly used in the industry. It has a transmission speed up to 108kb/s. This product requires galvanic isolation.

Features and Benefits


Transmission distance of up to 1km with AWG28 (0.14mm2) cable

Point to point or multiple connections possible (simultaneous monitoring of several devices)

DCE/DTE configurable

Monitor function for monitoring the exchange of data between two devices (2 receivers in one device) only with the standard model

Full duplex transmission on 4 lines

Only data lines are converted

Optional connection via RJ11 connector or terminal block (4 terminals)

On the RS232 side is a 25-way sub-D socket

Power is supplied via the included mains adapter which is fitted with a Euro plug

Isolation voltage is 2000V

Connection via terminal block (4 terminals)
