Ixxat IPC Accessory Interface Converter

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩1,127,492.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 11 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩1,127,492.40
5 +₩1,014,748.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
226-2747
제조사 부품 번호:
1.01.0283.22002
제조업체:
Ixxat
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Ixxat

Product Type

IPC Accessory Interface Converter

COO (Country of Origin):
DE

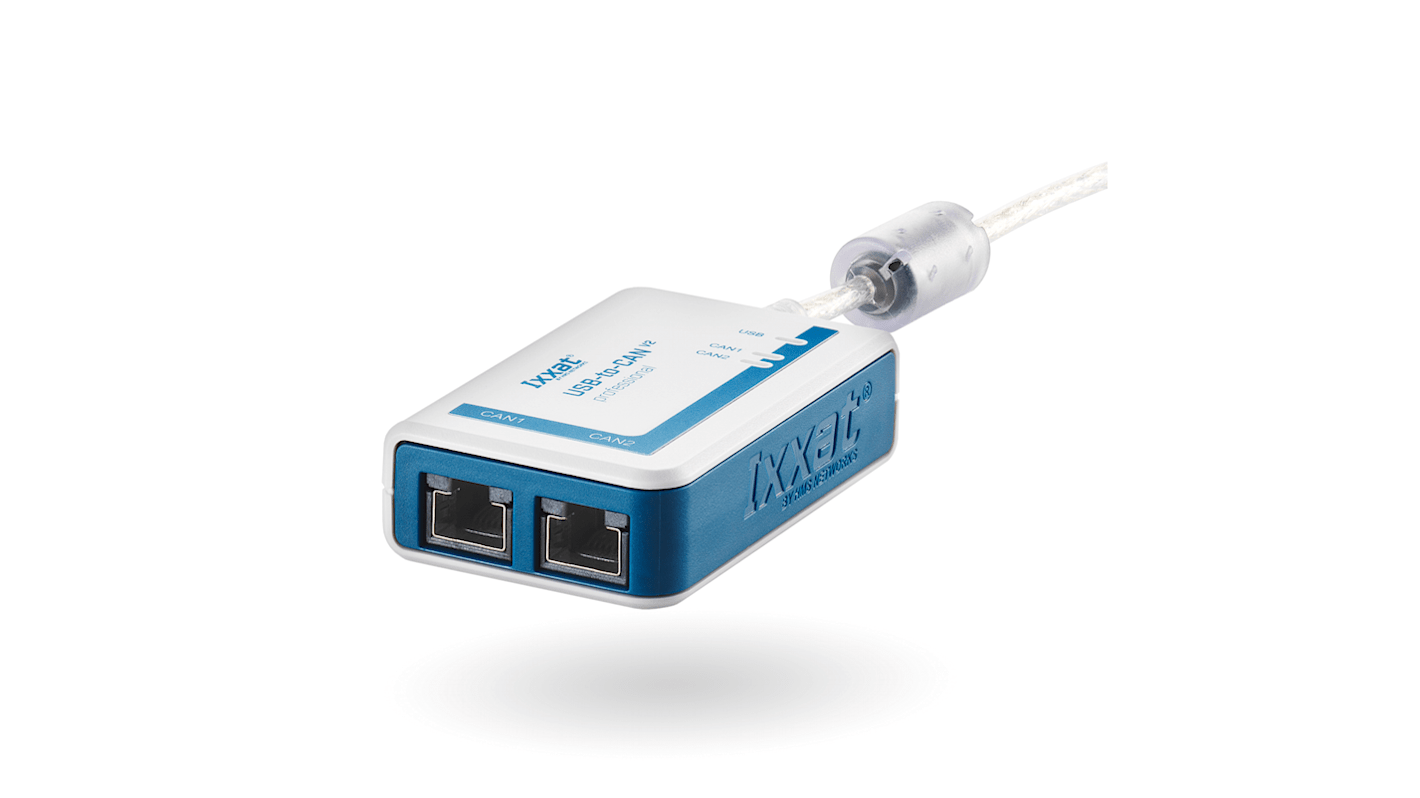

Ixxat USB-to-CAN V2 professional, USB-CAN-Adapter with galvanic isolation and 2 x RJ45 connectors


With its two CAN high-speed interfaces, the Ixxat USB-to-CAN V2 professional enables a simple and flexible CAN bus connection of computers with USB interface. It is a suitable tool for a wide variety of CAN applications in the areas of testing, development, maintenance, and control. The PC connection is established via a native USB 2.0 Hi-Speed port (480 Mbit/s), on the CAN bus side the device is connected via RJ45 connectors with galvanic isolation. The galvanic isolation provides reliable protection of the PC against overvoltage and voltage peaks. Thanks to its high-performance on-board microcontroller system, the Ixxat USB-to-CAN professional is also able to process message bursts (11- and 29-bit identifiers, CAN 2.0 A/B) at bit rates of up to 1 Mbit/s without any loss. This also includes message filtering, accurate time stamping (1 ms resolution) and buffering of CAN frames. A comprehensive driver and software package can be downloaded free of charge from the website (www.ixxat.com/vci).

Features and Benefits


· High quality, extremely versatile and reliable PC interface

· High data throughput combined with low latency

· Native USB 2.0 hi-speed (480 MBit/s), compatible with USB 1.1 and USB 3.x

· Powerful programming interface for Windows (VCI) as well as for Linux (socketCAN or ECI), QNX and VxWorks (ECI)

· 2 x RJ45 to 9-pin D-Sub adapter cables included

Technical Data


· Connectors: 2 x RJ45

· CAN bit rates: 10 kBit/s to 1 Mbit/s

· CAN interface: CAN high-speed (ISO 11898-2: 2016)

· Galvanic isolation: 1 kV for 1 sec.

· Certification: CE, UKCA, FCC
