Rittal Aluminium, Acrylic IP54 Inspection Window for use with AX 1039000, 1339000 and1009000 Enclosures instead of the
- RS 제품 번호:
- 202-3957
- 제조사 부품 번호:
- 2730010
- 제조업체:
- Rittal
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩586,695.36
일시적 품절
- 2026년 4월 10일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩586,695.36 |
| 5 + | ₩563,232.96 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 202-3957
- 제조사 부품 번호:
- 2730010
- 제조업체:
- Rittal
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Rittal | |
| Product Type | Inspection Window | |
| Length | 377mm | |
| Width | 597 mm | |
| Height | 380mm | |
| Material | Aluminium, Acrylic | |
| For Use With | AX 1039000, 1339000 and1009000 Enclosures instead of the Door | |
| IP Rating | IP54 | |
| Series | AX 2730.010 | |
| Standards/Approvals | IEC 60529 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Rittal | ||
Product Type Inspection Window | ||
Length 377mm | ||
Width 597 mm | ||
Height 380mm | ||
Material Aluminium, Acrylic | ||
For Use With AX 1039000, 1339000 and1009000 Enclosures instead of the Door | ||
IP Rating IP54 | ||
Series AX 2730.010 | ||
Standards/Approvals IEC 60529 | ||
- COO (Country of Origin):
- DE

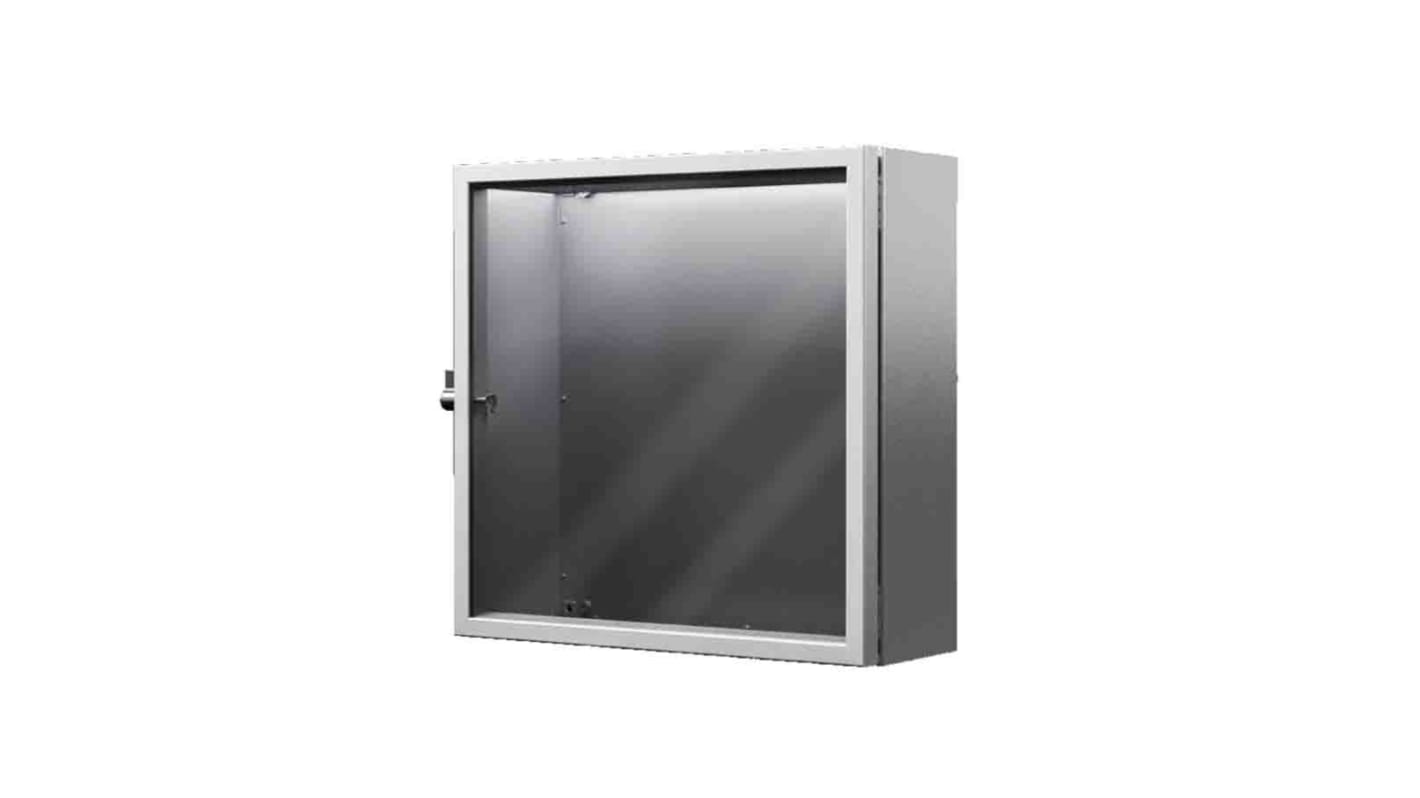

The Rittal FT viewing window is a viewing window for AX. It is used for mounting externally on the AX enclosures instead of door and on surfaces. The frame is made of aluminium and is natural anodised whereas the glass panel is acrylic.
IP 54 protection
Fits Enclosure type: AX
Build depth for components (max.): 32mm
