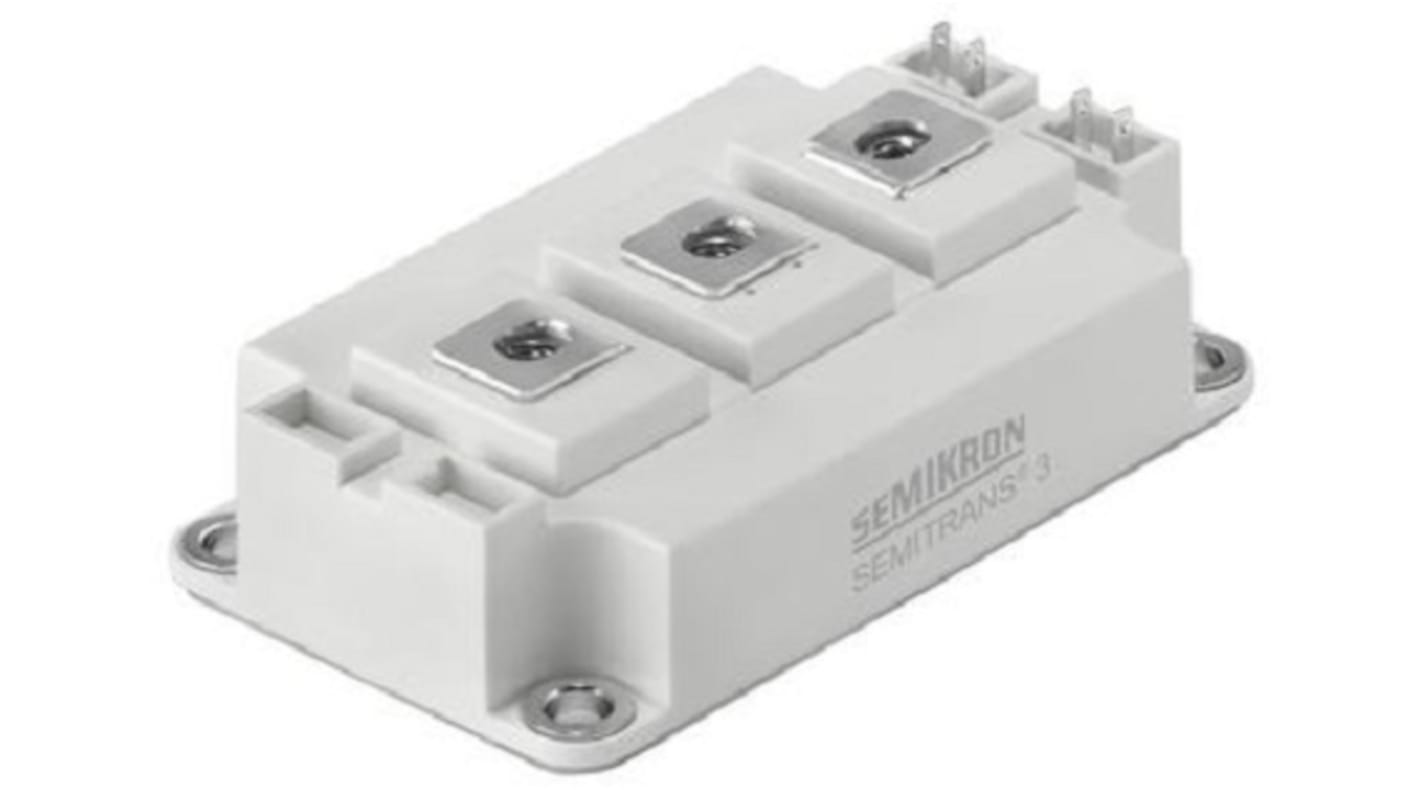

Semikron Danfoss SKM300GB12F4 Half Bridge, 380.29 A 1.28 V
- RS 제품 번호:
- 248-6702P
- 제조사 부품 번호:
- SKM300GB12F4
- 제조업체:
- Semikron Danfoss
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 248-6702P
- 제조사 부품 번호:
- SKM300GB12F4
- 제조업체:
- Semikron Danfoss
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Semikron Danfoss | |
| Configuration | Half Bridge | |
| Maximum Continuous Collector Current (Ic) | 380.29 A | |
| Maximum Collector Emitter Voltage (Vceo) | 1.28 V | |
| Automotive Standard | No | |
| Height | 31 mm | |
| Length | 106 mm | |
| Maximum Collector Emitter Saturation Voltage (Vce(SAT)) | 2.97 V | |
| Maximum Gate Emitter Voltage (VGEO) | ±20 V | |
| Maximum Operating Temperature | 150 °C | |
| Minimum Operating Temperature | -40 °C | |
| Number of Transistors | 2 | |
| Standards/Approvals | No | |
| Width | 62 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Semikron Danfoss | ||
Configuration Half Bridge | ||
Maximum Continuous Collector Current (Ic) 380.29 A | ||
Maximum Collector Emitter Voltage (Vceo) 1.28 V | ||
Automotive Standard No | ||
Height 31 mm | ||
Length 106 mm | ||
Maximum Collector Emitter Saturation Voltage (Vce(SAT)) 2.97 V | ||
Maximum Gate Emitter Voltage (VGEO) ±20 V | ||
Maximum Operating Temperature 150 °C | ||
Minimum Operating Temperature -40 °C | ||
Number of Transistors 2 | ||
Standards/Approvals No | ||
Width 62 mm | ||
The Semikron SEMITRANS series IGBT module has 1200 v collector to emitter voltage. It is mainly used in UPS, electronic welders, inductive heating, Switched Mode power supplies.
Increased power cycling capability
Insulated copper baseplate using DBC technology (Direct Bonded Copper)
For higher switching frequencies above 15kHz
