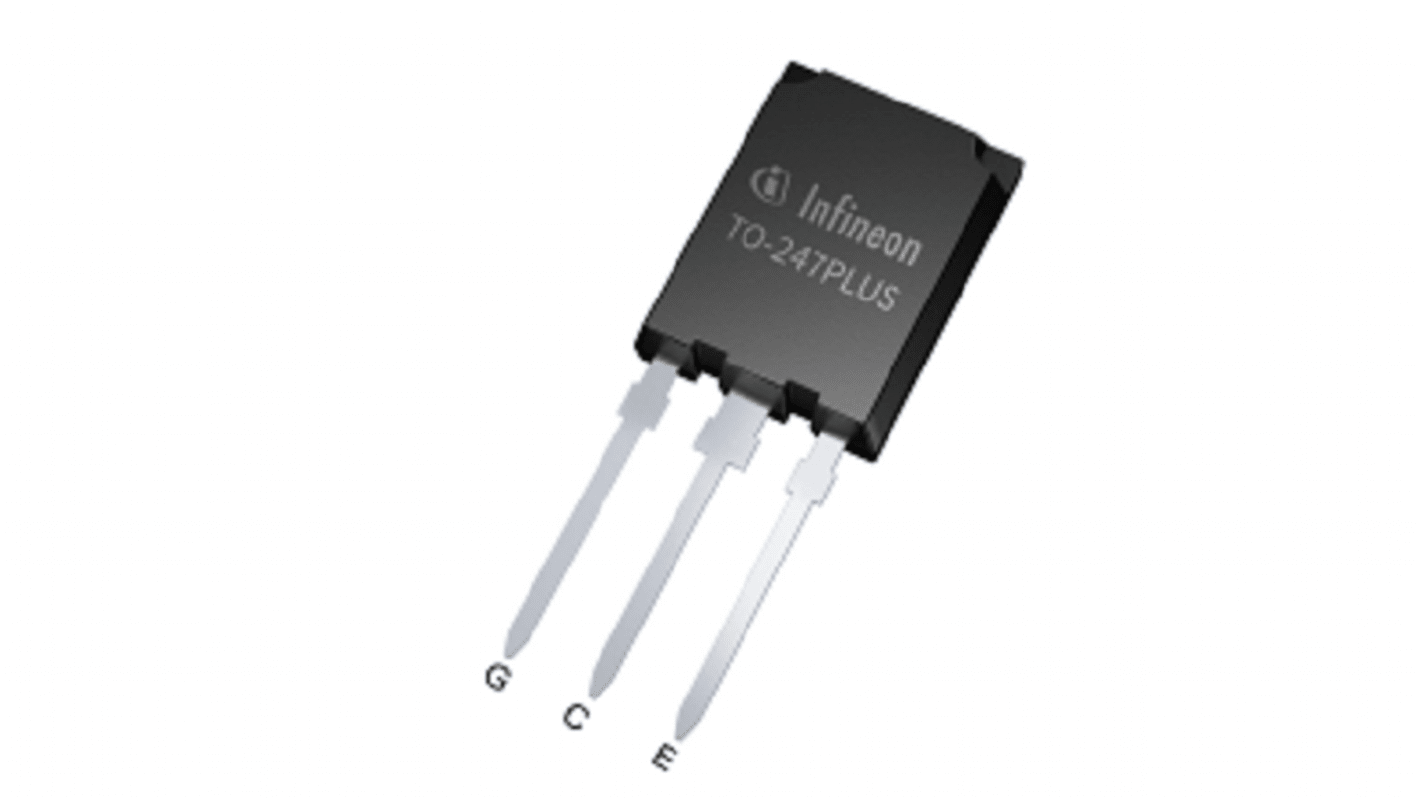

Infineon AIKQ200N75CP2XKSA1 IGBT, 200 A 750 V TO247PLUS

모든 IGBTs 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 240 units)*

₩3,247,286.40

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 4월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Tube*
240 - 240₩13,530.36₩3,247,331.52
480 - 480₩13,205.12₩3,169,409.28
720 +₩12,889.28₩3,093,336.96

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
248-6656
제조사 부품 번호:
AIKQ200N75CP2XKSA1
제조업체:
Infineon
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Infineon

Maximum Continuous Collector Current

200 A

Maximum Collector Emitter Voltage

750 V

Maximum Gate Emitter Voltage

15V

Number of Transistors

3

Maximum Power Dissipation

1.07 kW

Package Type

TO247PLUS

The Infineon Automotive IGBT discrete is an EDT2 IGBT with a co-packed diode in the TO247PLUS package, the EDT2 technology has an extremely tight parameter distribution and a positive thermal coefficient, this enables easy paralleling operation, providing system flexibility and power scalability, and the 750 V EDT technology significantly improves energy efficiency and cooling efforts for high voltage automotive applications by enabling battery voltages up to 470V and safe fast switching due to increased overvoltage margins, thus enabling high performant inverter systems.

Self limiting current under short circuit condition
Positive thermal coefficient and very tight parameter distribution for easy paralleling
Excellent current sharing in parallel operation
Smooth switching characteristics, low EMI signature
Low gate charge
Simple gate drive design
High reliability
