Infineon FF450R12ME7B11BPSA1 IGBT Module, 450 A 1.2 kV, 11-Pin AG-ECONOD, Surface

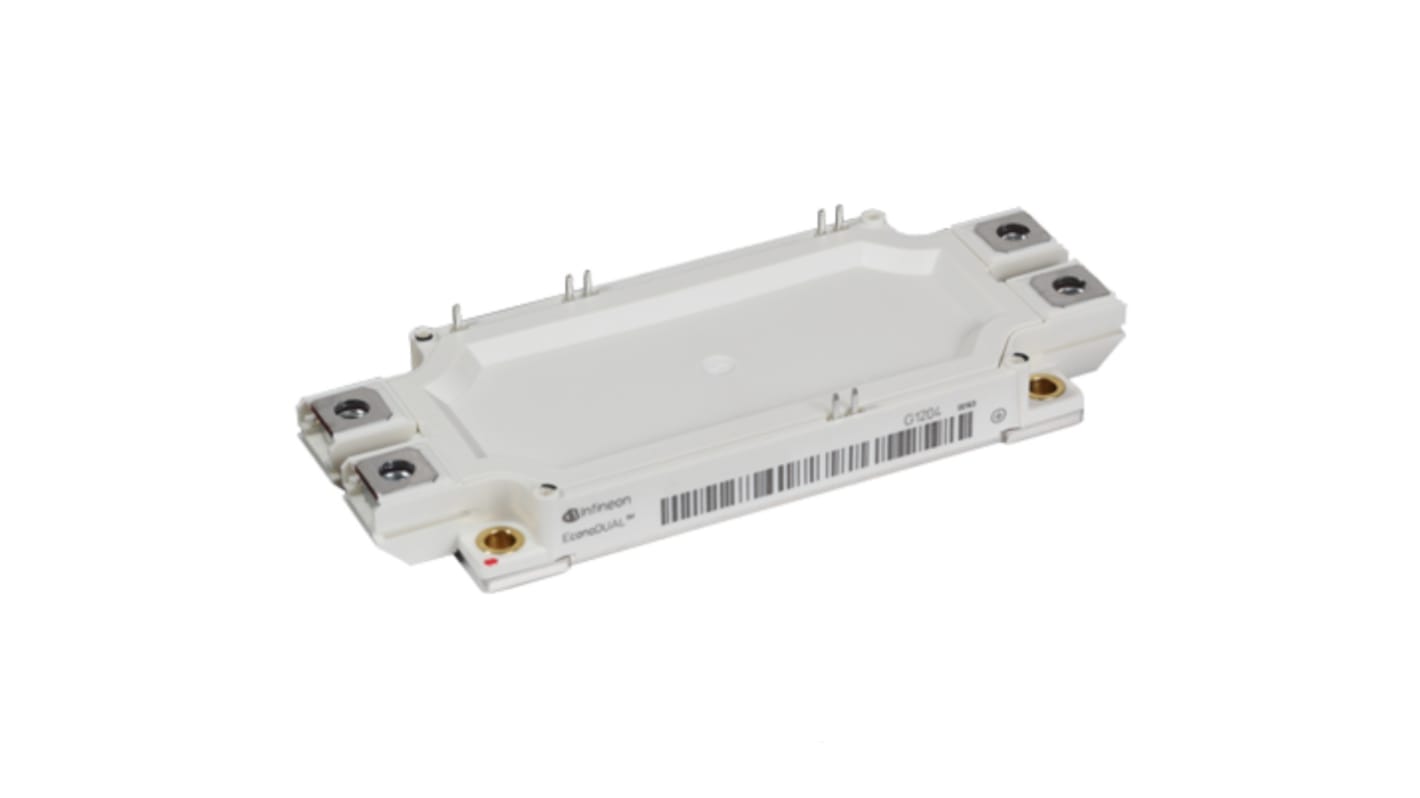

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 제품 번호:
232-3042
제조사 부품 번호:
FF450R12ME7B11BPSA1
제조업체:
Infineon
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Infineon

Maximum Continuous Collector Current Ic

450A

Product Type

IGBT Module

Maximum Collector Emitter Voltage Vceo

1.2kV

Maximum Power Dissipation Pd

20mW

Number of Transistors

2

Package Type

AG-ECONOD

Mount Type

Surface

Pin Count

11

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

1.75V

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Operating Temperature

175°C

Series

FF450R12ME7_B11

Height

20.5mm

Length

152mm

Width

62.5mm

Standards/Approvals

IEC 60747, 60068, 60749

Automotive Standard

No

The Infineon has EconoDUAL 1200 V, 450 A dual TRENCHSTOP IGBT7 module with emitter controlled 7 diode, NTC and PressFIT contact technology. This module has high inter-connection reliability and suitable for press-in and soldering process.

High power density

Isolated base plate

Standard housing
