STMicroelectronics, N-Channel IGBT, 40 A 650 V, 3-Pin TO-220FP, Through Hole

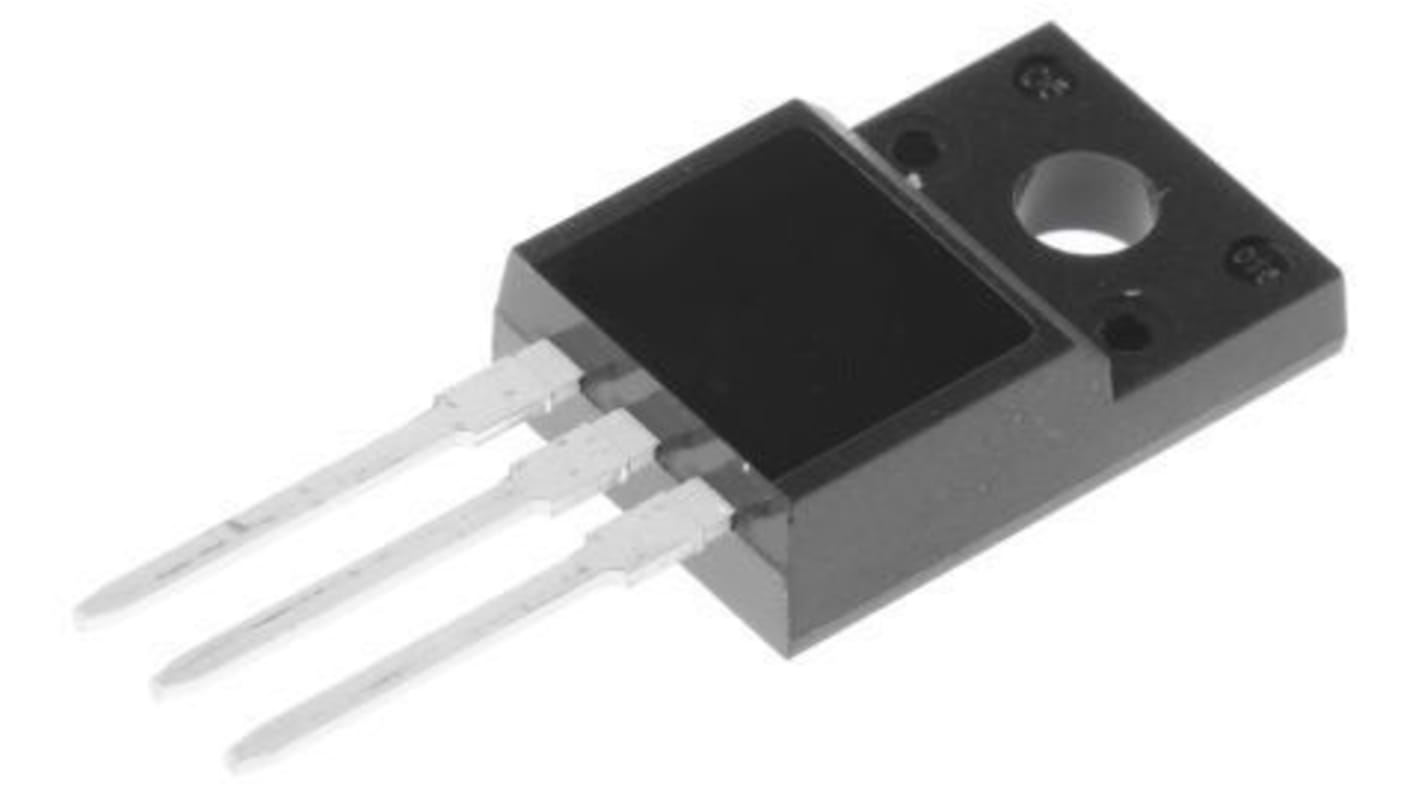

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 받기

25개 더 담고 ₩1,400.00 할인 받기

View bulk pricing options

Subtotal 15 units (supplied in a tube)*

₩57,900.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 25 개 unit(s)이 배송 준비 됨

수량
한팩당
절감
15 - 20₩3,860.00-
25 +₩3,804.00₩1,400.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
204-9872P
제조사 부품 번호:
STGF20H65DFB2
제조업체:
STMicroelectronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

STMicroelectronics

Product Type

IGBT

Maximum Continuous Collector Current Ic

40A

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

45W

Package Type

TO-220FP

Mount Type

Through Hole

Channel Type

N

Pin Count

3

Switching Speed

1MHz

Maximum Collector Emitter Saturation Voltage VceSAT

2.1V

Minimum Operating Temperature

-55°C

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Operating Temperature

175°C

Width

16.4mm

Standards/Approvals

RoHS

Height

4.6mm

Series

STG

Length

10.4mm

Automotive Standard

No

COO (Country of Origin):
CN
The STMicroelectronics IGBT 650 V HB2 series represents an evolution of the advanced proprietary trench gate field-stop structure. The performance of the HB2 series is optimized in terms of conduction, thanks to a better VCE(sat) behaviour at low current values, as well as in terms of reduced switching energy.

Maximum junction temperature : TJ = 175 °C

Low VCE(sat) = 1.65 V (typ.) @ IC = 20 A

Very fast and soft recovery co-packaged diode

Minimized tail current

Tight parameter distribution

Low thermal resistance
