- RS 제품 번호:
- 168-4475
- 제조사 부품 번호:
- MII75-12A3
- 제조업체:
- IXYS
일시 품절-다음 입고 날짜는 24/04/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(6개가 1박스안에)
₩163,225.562
수량 | 한팩당 | Per Box* |
6 - 6 | ₩163,225.562 | ₩979,355.098 |
12 - 18 | ₩158,328.571 | ₩949,971.426 |
24 + | ₩153,579.921 | ₩921,476.078 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 168-4475
- 제조사 부품 번호:
- MII75-12A3
- 제조업체:
- IXYS
제정법과 컴플라이언스
제품 세부 사항

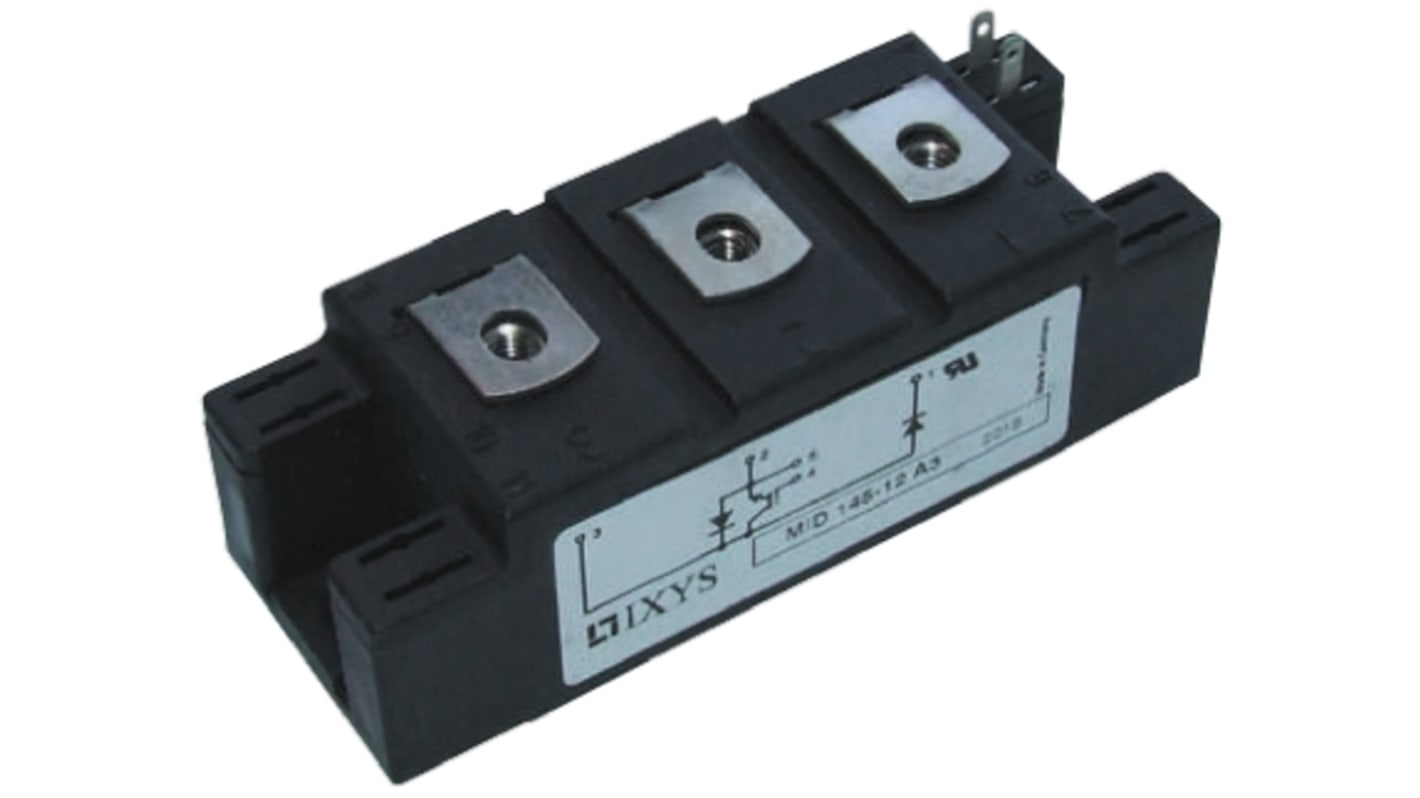

IGBT Modules, IXYS
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IGBT Discretes & Modules, IXYS
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
사양
속성 | 값 |
---|---|
Maximum Continuous Collector Current | 90 A |
Maximum Collector Emitter Voltage | 1200 V |
Maximum Gate Emitter Voltage | ±20V |
Package Type | Y4 M5 |
Configuration | Series |
Mounting Type | Panel Mount |
Channel Type | N |
Pin Count | 7 |
Transistor Configuration | Series |
Dimensions | 94 x 34 x 30mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +150 °C |
