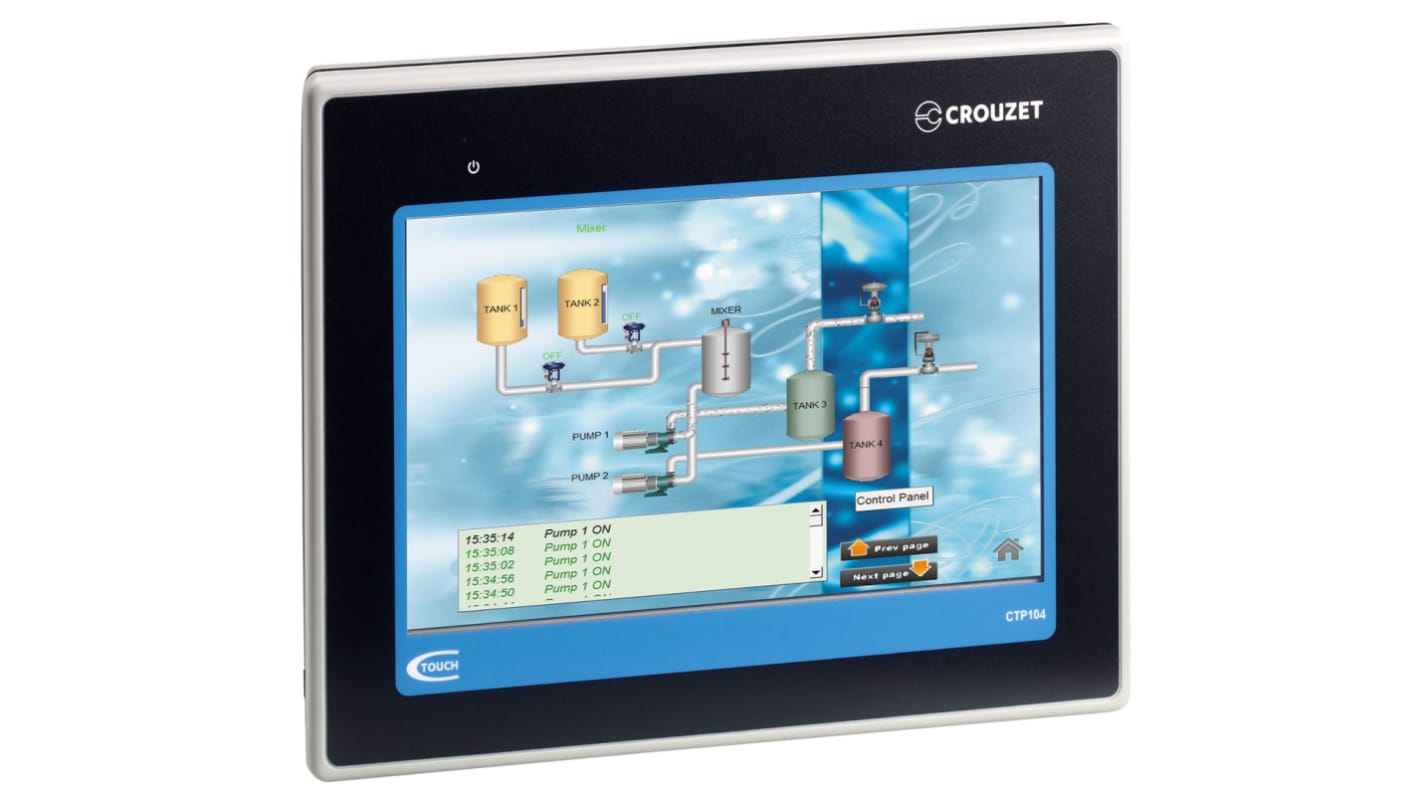

Crouzet em4, Millenium 3 Touch Screen HMI - 4.3 in, TFT LCD Display, 480 x 272
- RS 제품 번호:
- 123-7014
- Distrelec 제품 번호:
- 301-05-251
- 제조사 부품 번호:
- 88970555
- 제조업체:
- Crouzet
Subtotal (1 unit)*
₩1,508,700.00
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,508,700.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 123-7014
- Distrelec 제품 번호:
- 301-05-251
- 제조사 부품 번호:
- 88970555
- 제조업체:
- Crouzet
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Crouzet | |
| Product Range | em4, Millenium 3 | |
| Display Type | TFT LCD | |
| Manufacturer Part No. | 88970555 | |
| Display Resolution | 480 x 272 | |
| Number of Ports | 2 | |
| Port Type | RS-232/RS-485, USB 2.0 | |
| Processor Speed | 400MHz | |
| Onboard Memory | 128 (Flash) MB, 64 (RAM) MB | |
| Backlighting | Yes | |
| Display Size | 4.3 in | |
| IP Rating | IP65 | |
| Display Colour | Colour | |
| Depth | 38.25mm | |
| Width | 102mm | |
| Maximum Operating Temperature | +40°C | |
| Minimum Operating Temperature | 0°C | |
| Dimensions | 128 x 102 x 38.25 mm | |
| Supply Voltage | 24 V dc | |
| Length | 128mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Crouzet | ||
Product Range em4, Millenium 3 | ||
Display Type TFT LCD | ||
Manufacturer Part No. 88970555 | ||
Display Resolution 480 x 272 | ||
Number of Ports 2 | ||
Port Type RS-232/RS-485, USB 2.0 | ||
Processor Speed 400MHz | ||
Onboard Memory 128 (Flash) MB, 64 (RAM) MB | ||
Backlighting Yes | ||
Display Size 4.3 in | ||
IP Rating IP65 | ||
Display Colour Colour | ||
Depth 38.25mm | ||
Width 102mm | ||
Maximum Operating Temperature +40°C | ||
Minimum Operating Temperature 0°C | ||
Dimensions 128 x 102 x 38.25 mm | ||
Supply Voltage 24 V dc | ||
Length 128mm | ||
- COO (Country of Origin):
- TW
CTP104-E Performance Starter Kit
CTP104-E performance starter kit from Crouzet. This C-Touch HMI starter kit offers a high quality and a high performance HMI with a direct connection to Millenium 3 Micro-PLC.
Starter Kit Contains
4.3"" HMI
Millenium 3 Micro-PLC
Programming and connection cables
Crouzet Touch Soft
Features & Benefits
TFT-LCD resistive touch screen
Fan less cooling system
32-bit 600 Mhz or 1 GHz Cortex-A8 processor
Built-in RTC
Direct communication with the Millenium 3 Micro-PLC
MODBUS RS232/485 protocol
MODBUS TCP/IP protocol
Integrated VNC server
Extra function provided; Emails, recipe database, enhanced security and many more
CE mark, cULus listed
Crouzet Millenium 3
The Millenium 3 is the latest generation in the Millenium series. Improvements over the Millenium 2 Plus include:
The Compact Controller has around twice the memory size
The Expandable Controller has around four times the memory size
10 bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bargraph functionality
Choice of ladder or function block programming
The Expandable Controller has around four times the memory size
10 bit analogue input resolution (0 – 10V signal) on dc input types (formerly 8 bit)
18 character (formerly 12), 4 line display with scrolling text and bargraph functionality
Choice of ladder or function block programming
