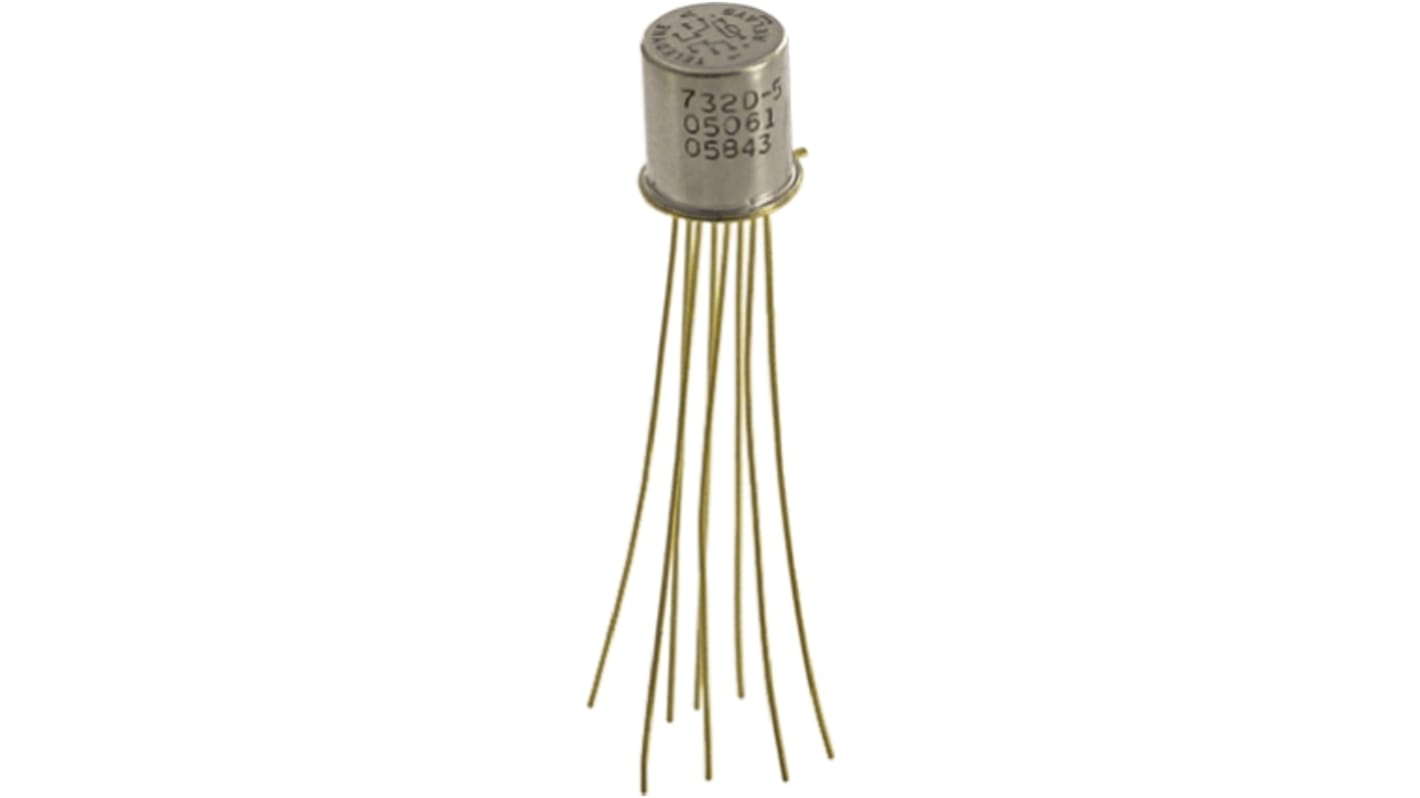

Teledyne PCB RF Relay, 5 V dc Coil, DPDT

모든 HF & RF Relays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩156,453.60

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 9월 30일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩156,453.60
5 - 9₩151,753.60
10 - 24₩147,204.00
25 - 49₩143,932.80
50 +₩140,830.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
758-2467
제조사 부품 번호:
732D-5
제조업체:
Teledyne
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Teledyne

Product Type

RF Relay

Coil Resistance

100Ω

Contact Resistance

150mΩ

Contact Configuration

DPDT

Coil Voltage

5 V dc

Terminal Type

Through Hole

Mount Type

PCB

Minimum Operating Temperature

-55°C

Contact Current

1A

Maximum Operating Temperature

85°C

Length

9.76mm

Standards/Approvals

RoHS

Series

732

Coil Power

200mW

Height

9.76mm

Contact Material

Gold Plated

Diameter

9.4 mm

COO (Country of Origin):
US

TO-5 RF Relay - 732 Series


Teledyne's TO-5 DPDT relays have become one of the industry standards for low level switching from dry circuit to 1 Amp. Designed for use when close PCB spacing is required, the 732 series have a low coil power dissipation in an sub-miniature relay package.

With a low inter-contact capacitance and contact circuit losses, the 732 series of TO-5 relays are an excellent sub-miniature RF switch for frequencies well into the UHF spectrum (see datasheet for performance curves). In addition to the standard types there are the 732D relays which have an internal discrete silicon diode that provides coil transient suppression.

A typical RF application for the TO-5 relay is in hand held radio transceivers, the combined features of good RF performance, small size, low coil power dissipation and high reliability make it a preferred method of Transmit/Receive switching.

Hermetically sealed

High resistance to shock and vibration

Gold plated contacts

Low insertion loss - isolation and intercontact capacitance of 0.4pF

Uni-frame design provides high magnetic efficiency and mechanical rigidity

High reliability and excellent resistance to environmental extremes
