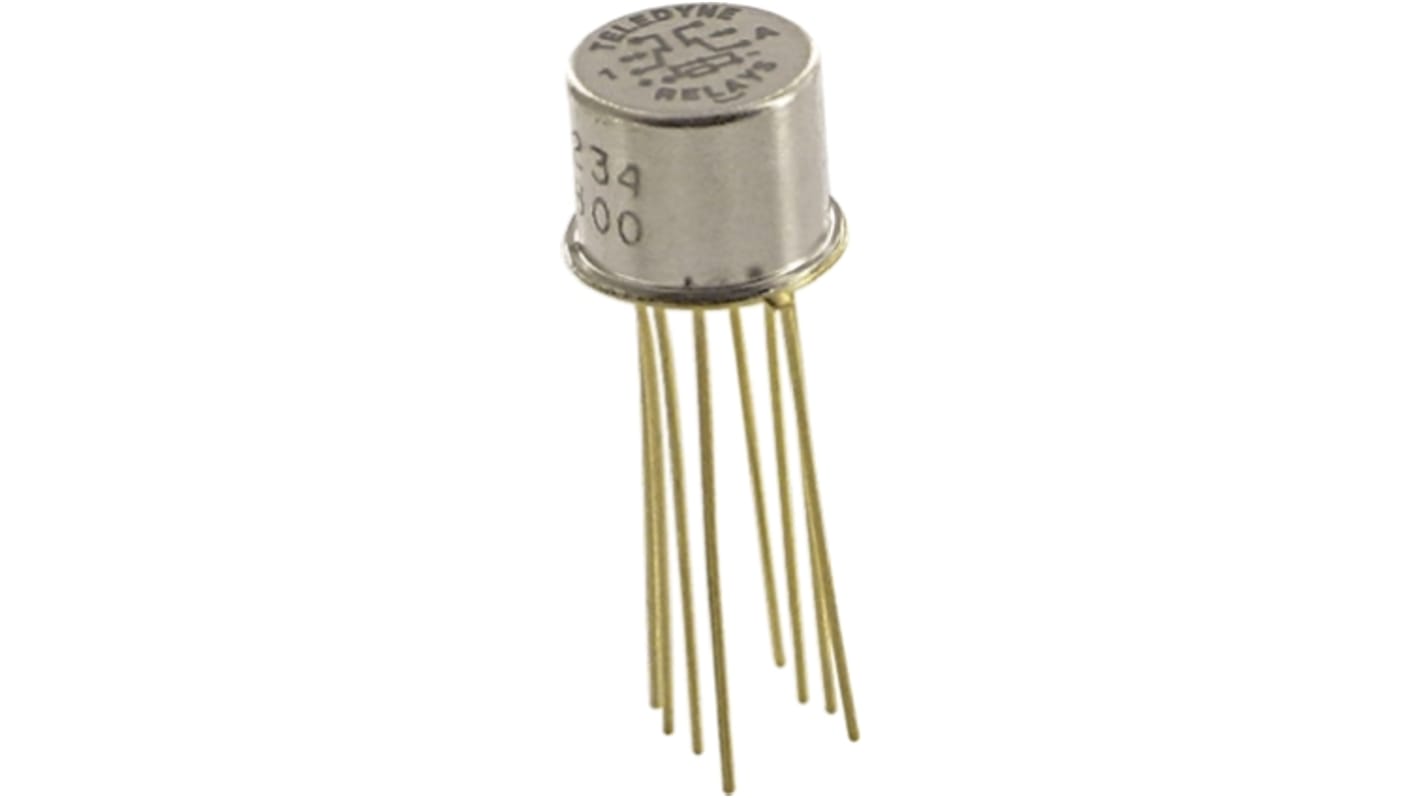

Teledyne PCB RF Relay, 12V dc Coil, DPDT
- RS 제품 번호:
- 758-2433
- 제조사 부품 번호:
- 712D-12
- 제조업체:
- Teledyne
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩179,460.00
일시적 품절
- 2026년 10월 06일 부터 152 개 단위 배송
- 추가로 2026년 10월 09일 부터 58 개 단위 배송
- 추가로 2026년 12월 04일 부터 44 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩179,460.00 |
| 5 - 9 | ₩174,080.00 |
| 10 + | ₩170,580.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 758-2433
- 제조사 부품 번호:
- 712D-12
- 제조업체:
- Teledyne
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Teledyne | |
| Product Type | RF Relay | |
| Coil Resistance | 390Ω | |
| Contact Resistance | 150mΩ | |
| Contact Configuration | DPDT | |
| Terminal Type | Through Hole | |
| Mount Type | PCB | |
| Contact Current | 1A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Height | 6.99mm | |
| Length | 9.4mm | |
| Coil Power | 450mW | |
| Contact Material | Gold Plated | |
| 모두 선택 | ||
|---|---|---|
브랜드 Teledyne | ||
Product Type RF Relay | ||
Coil Resistance 390Ω | ||
Contact Resistance 150mΩ | ||
Contact Configuration DPDT | ||
Terminal Type Through Hole | ||
Mount Type PCB | ||
Contact Current 1A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Height 6.99mm | ||
Length 9.4mm | ||
Coil Power 450mW | ||
Contact Material Gold Plated | ||
Teledyne RF Relay
The Teledyne 712D series PCB mount DPDT ultra-miniature RF relay is actuated with 12VDC coil voltage at a frequency of 1GHz. It is a relay with an internal diode for coil transient suppression. This relay has a low profile height of 6.99mm and is designed for use when close PCB spacing is required. This relay has unique construction features and manufacturing techniques that provide excellent resistance to environmental extremes and overall high reliability. It is hermetically sealed and gives excellent switching performance from Dry circuit to 1A. A typical RF application for this relay is in handheld radio transceivers which combines the features of good RF performance, small size, low coil power dissipation and high reliability, making it a preferred method of transmitting/receive switching.
Features and Benefits
Coil power is 450mW
Coil resistance is 390ohm
Contact termination is solder pin
Dimensions are 9.4mm x 6.99mm
Gold-plated contacts
High reliability
High resistance to shock and vibration
Low insertion loss i.e. isolation and intercontact capacitance of 0.4pF
Operating temperature ranging between -55°C and 85°C
Uniframe design provides high magnetic efficiency and mechanical rigidity
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
