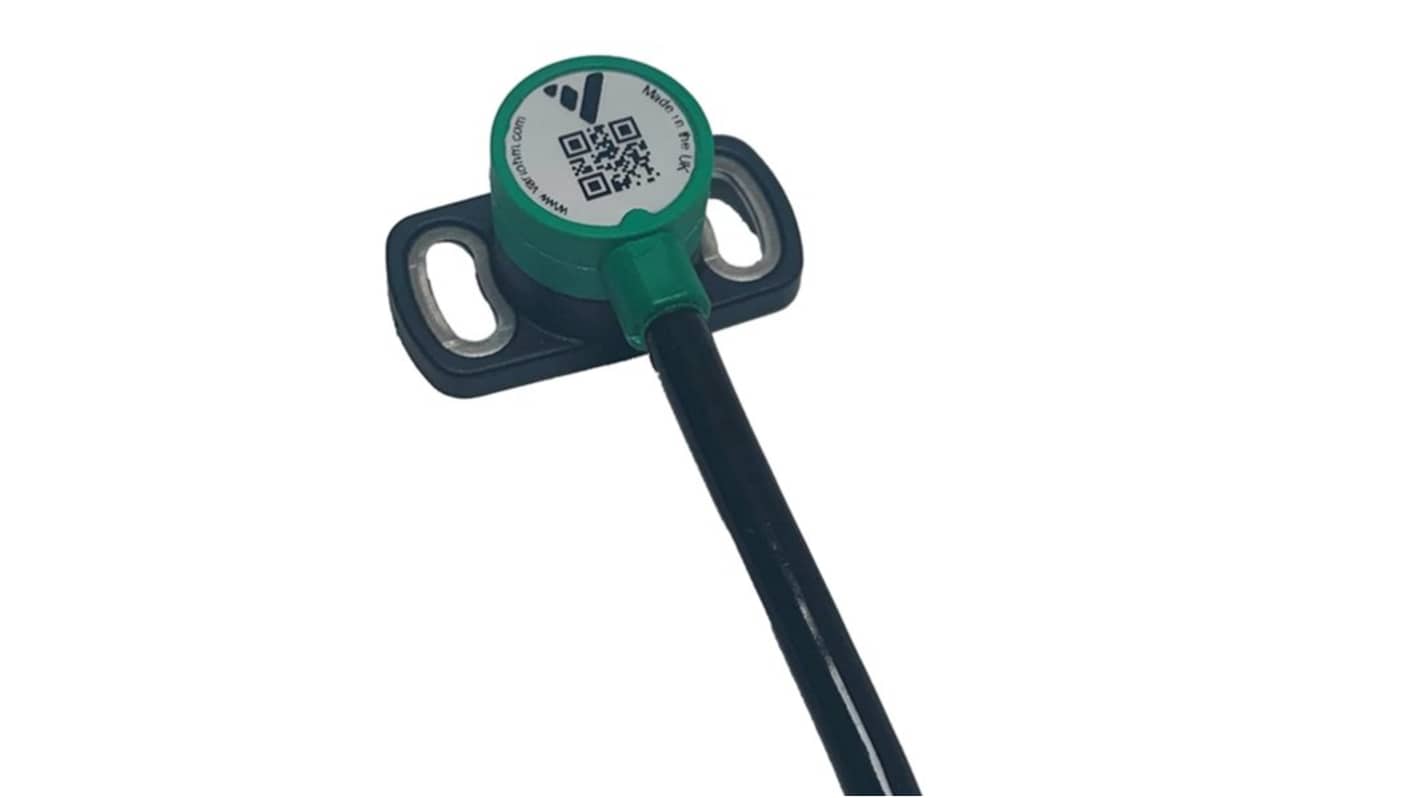

Variohm Group Hall Effect Sensor Bolt Mount, Analogue Output, Circular Body, 5 V dc 5V

모든 Hall Effect Sensors 열람하기

Subtotal (1 unit)*

₩214,120.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 15 개 unit(s)이 배송 준비 됨
수량
한팩당
1 +₩214,120.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
315-244
Distrelec 제품 번호:
304-26-378
제조사 부품 번호:
Euro-MXPD-112-1521-360-1178-50
제조업체:
Variohm Group
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Variohm Group

Output Type

Analogue

Product Type

Hall Effect Sensor

Body Style

Circular

Terminal Type

Insulated Cable Sheathed

Mount Type

Bolt Mount

Maximum DC Voltage

5V dc

Maximum Supply Voltage

5V

Switching Frequency

1000Hz

Minimum Operating Temperature

-40°C

Series

Euro-MXPD

Standards/Approvals

IEC 60068-2-6

Width

3mm

Maximum Operating Temperature

125°C

IP Rating

IP68

Housing Material

High grade Temperature Resistant Plastic

COO (Country of Origin):
GB
The Variohm Group Angle Sensor boasts the same features in a 30 mm outer diameter package. With programmable angle selection and redundant output, this extremely compact and contactless Hall-Effect sensor features IP68 sealing and will suit arduous, high-duty cycle position feedback applications in all industries.

Hall Effect non contact technology

Long life extremely robust

Programmable angles from 30 degree up to 360 degrees

IP68 protection
