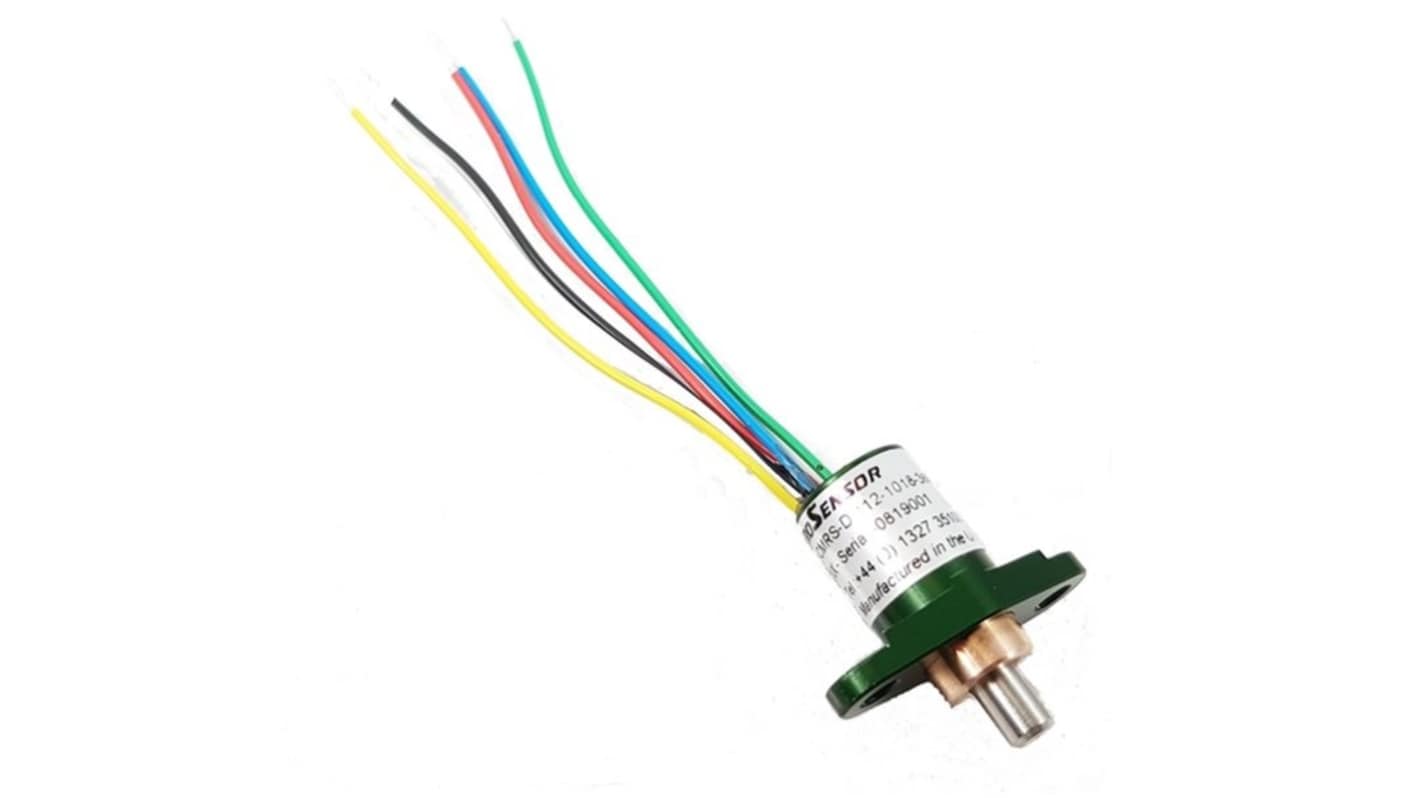

Variohm Group Hall Effect Sensor Bolt Mount, Analogue Output, 5 V dc 5V
- RS 제품 번호:
- 315-233
- Distrelec 제품 번호:
- 304-26-370
- 제조사 부품 번호:
- Euro-CMRS-D-112-1018-060-1178-50
- 제조업체:
- Variohm Group
Subtotal (1 unit)*
₩448,104.15
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩448,104.15 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 315-233
- Distrelec 제품 번호:
- 304-26-370
- 제조사 부품 번호:
- Euro-CMRS-D-112-1018-060-1178-50
- 제조업체:
- Variohm Group
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Variohm Group | |
| Product Type | Hall Effect Sensor | |
| Output Type | Analogue | |
| Terminal Type | Cable | |
| Mount Type | Bolt Mount | |
| Maximum DC Voltage | 5V dc | |
| Switching Frequency | 1000Hz | |
| Maximum Supply Voltage | 5V | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | IEC 60068-2-6 | |
| Depth | 3mm | |
| Series | Euro-CMRS | |
| IP Rating | IP68 | |
| Maximum Operating Temperature | 125°C | |
| Housing Material | High Grade Anodised Aluminium | |
| 모두 선택 | ||
|---|---|---|
브랜드 Variohm Group | ||
Product Type Hall Effect Sensor | ||
Output Type Analogue | ||
Terminal Type Cable | ||
Mount Type Bolt Mount | ||
Maximum DC Voltage 5V dc | ||
Switching Frequency 1000Hz | ||
Maximum Supply Voltage 5V | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals IEC 60068-2-6 | ||
Depth 3mm | ||
Series Euro-CMRS | ||
IP Rating IP68 | ||
Maximum Operating Temperature 125°C | ||
Housing Material High Grade Anodised Aluminium | ||
- COO (Country of Origin):
- GB
The Variohm Group Angle Sensor is specifically aimed at arduous high-duty cycle position feedback applications where miniaturisation is a key factor. With programmable angle selection, this compact and contactless IP68 rated Hall Effect sensor features a high grade aluminium housing with stainless steel shaft that are both mechanically customisable to suit the customer's application.
Hall Effect non contact technology
Long life extremely robust
Programmable angles from 30 degree up to 360 degrees
IP68 protection
