Variohm Group Hall Effect Sensor Screw, Analogue Output, 5 V dc 5.5V

Subtotal (1 unit)*

₩339,192.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 1 개 unit(s)이 배송 준비 됨
수량
한팩당
1 +₩339,192.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
315-237
Distrelec 제품 번호:
304-26-373
제조사 부품 번호:
Euro-CMRT-D-111-10M8-360-17-50
제조업체:
Variohm Group
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Variohm Group

Output Type

Analogue

Product Type

Hall Effect Sensor

Terminal Type

Cable

Mount Type

Screw

Maximum DC Voltage

5V dc

Switching Frequency

1000Hz

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Series

Euro-CMRT

Width

10mm

Standards/Approvals

IEC 60068-2-6

Depth

15mm

Length

520mm

IP Rating

IP68

Maximum Operating Temperature

125°C

Housing Material

High Grade Anodised Aluminium

COO (Country of Origin):
GB

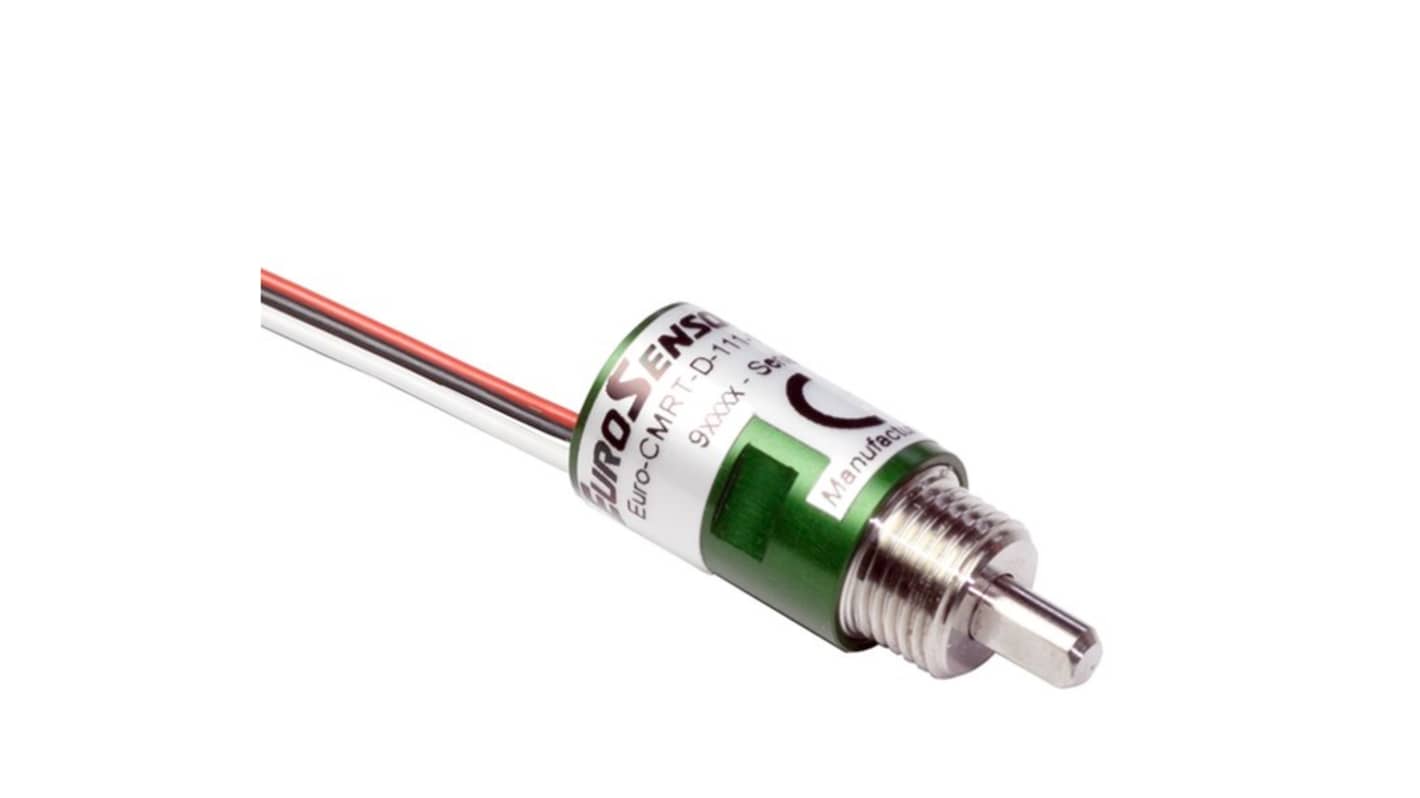

The Variohm Group Angle Sensor is specifically aimed at arduous high-duty cycle position feedback applications where miniaturisation is a key factor. With programmable angle selection, this compact and contactless IP68 rated Hall Effect sensor features a high grade aluminium housing and a stainless steel shaft which together with the M8 mounting thread are all customisable to suit the customer's application.

Hall Effect non contact technology

Long life extremely robust

Programmable angles from 30 degree up to 360 degrees
