Hammond 1590 Series Natural Natural Lid Die Cast Aluminium Enclosure, IP65, 52.4 mm x 188 mm x 120 mm
- RS 제품 번호:
- 364-2281
- 제조사 부품 번호:
- 1590WD
- 제조업체:
- Hammond
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩41,800.00
재고있음
- 추가로 2026년 10월 12일 부터 18 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 49 | ₩41,800.00 |
| 50 - 99 | ₩40,560.00 |
| 100 + | ₩39,300.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 364-2281
- 제조사 부품 번호:
- 1590WD
- 제조업체:
- Hammond
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Hammond | |
| Product Type | Enclosure | |
| Body Material | Die Cast Aluminium | |
| External Height | 52.4mm | |
| External Length | 188mm | |
| External Width | 120mm | |
| IP Rating | IP65 | |
| Lid Colour | Natural | |
| Colour | Natural | |
| Flanged | No | |
| Shielding | Shielded | |
| Hazardous Area Certification | No | |
| Series | 1590 | |
| Number of Knockouts | 0 | |
| Weight | 500g | |
| Standards/Approvals | RoHS | |
| Transparent Door | No | |
| Gasket Material | Silicone | |
| Explosion Proof | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Hammond | ||
Product Type Enclosure | ||
Body Material Die Cast Aluminium | ||
External Height 52.4mm | ||
External Length 188mm | ||
External Width 120mm | ||
IP Rating IP65 | ||
Lid Colour Natural | ||
Colour Natural | ||
Flanged No | ||
Shielding Shielded | ||
Hazardous Area Certification No | ||
Series 1590 | ||
Number of Knockouts 0 | ||
Weight 500g | ||
Standards/Approvals RoHS | ||
Transparent Door No | ||
Gasket Material Silicone | ||
Explosion Proof No | ||
- COO (Country of Origin):
- CA

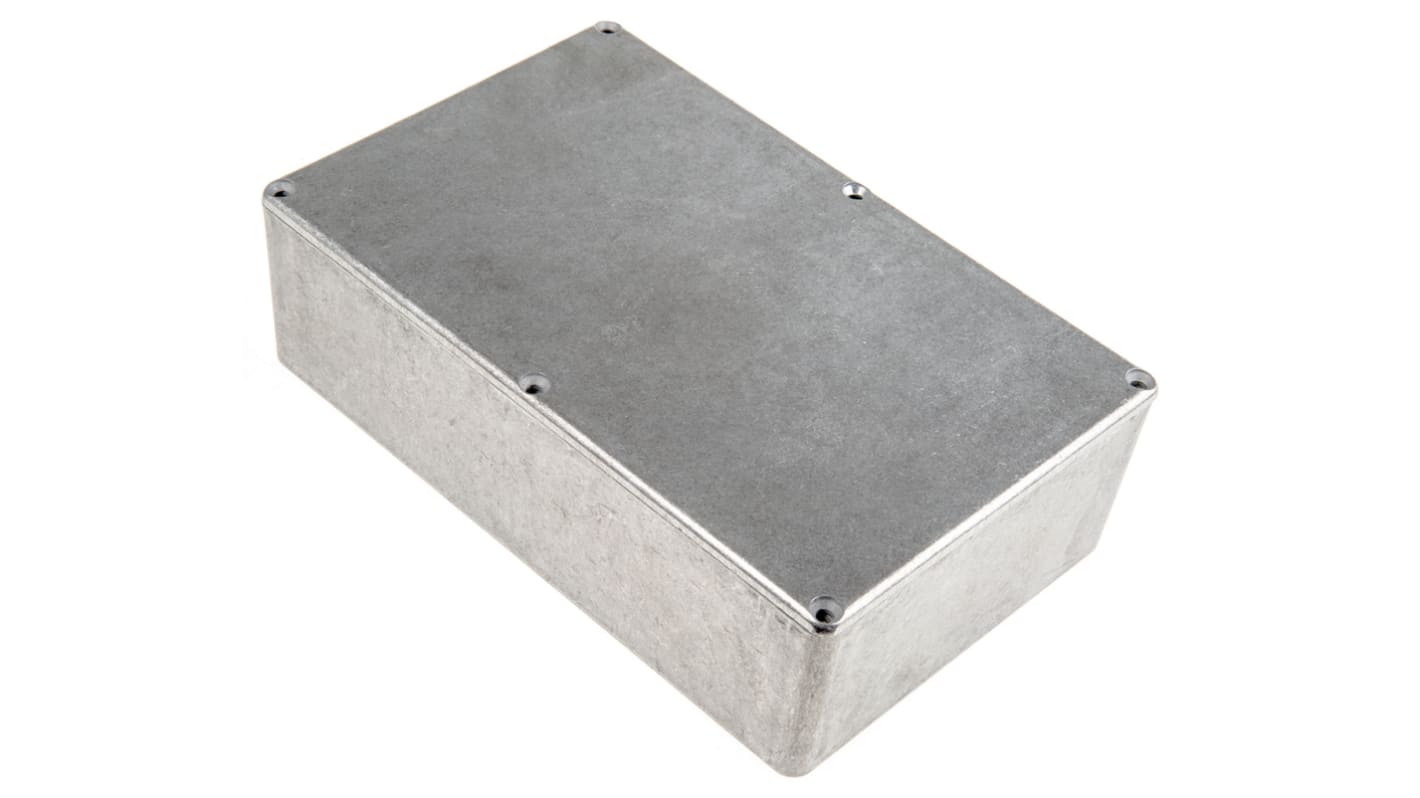

Hammond Enclosure, 188 (L) x 120 (W) x 52.43mm (H), Shielded, Four Cover Screws Included - 1590 Series - 1590WD
Need a safe space to house electronic devices in your contaminated workplace? Get them under cover with this enclosure from Hammond. It has an IP65 rating and a robust silicone gasket around the lid, so you can be sure dirt particles and water spray can't get inside. The gasket is self-adhesive, so there's no need to muck around with messy glue. Impacts and corrosion have got nothing on this unit, thanks to its rugged die-cast aluminium alloy housing.
Features & Benefits
• External dimensions of 188 (L) x 120 (W) x 52.43mm (D), so there's space to house multiple items
• Screws have neoprene O-rings to stop moisture from creeping in
• Silicone gasket resists oils and solvents for durability
• Pre-tapped holes for accurate insertion of screws
Applications
• Construction sites
• Marine engineering
• Manufacturing industry
Is this enclosure protected against EMI and RFI?
Yes. The silicone gasket around the lid acts as a shield that protects it from EMI and RFI. This helps to reduce the risk of signal disturbance.
What are the enclosure's screws made of?
They're made from stainless steel, so they're hardwearing and resistant to corrosion.
