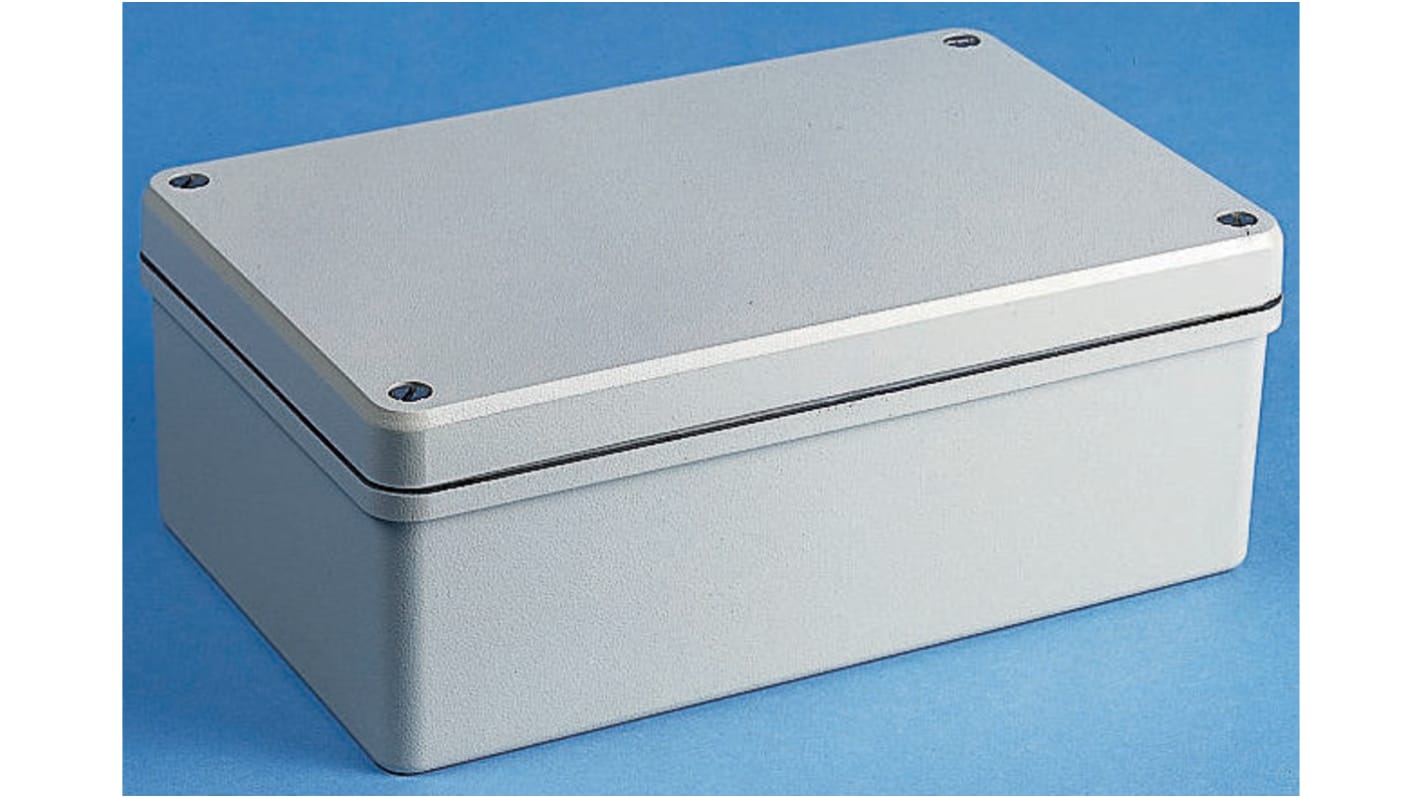

ROLEC Conform Series Grey Die Cast Aluminium Enclosure, IP66, IP67 60 mm, 225.5 mm, 125.5 mm
- RS 제품 번호:
- 202-2052
- 제조사 부품 번호:
- 111.123.101
- 제조업체:
- ROLEC
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩152,470.50
일시적 품절
- 2026년 6월 22일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩152,470.50 |
| 25 - 49 | ₩146,367.00 |
| 50 + | ₩140,283.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 202-2052
- 제조사 부품 번호:
- 111.123.101
- 제조업체:
- ROLEC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ROLEC | |
| Body Material | Die Cast Aluminium | |
| Product Type | Enclosure | |
| External Height | 60mm | |
| External Length | 225.5mm | |
| External Width | 125.5mm | |
| IP Rating | IP66, IP67 | |
| Colour | Grey | |
| Lid Colour | Grey | |
| Shielding | Shielded | |
| Hazardous Area Certification | No | |
| Series | Conform | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 ROLEC | ||
Body Material Die Cast Aluminium | ||
Product Type Enclosure | ||
External Height 60mm | ||
External Length 225.5mm | ||
External Width 125.5mm | ||
IP Rating IP66, IP67 | ||
Colour Grey | ||
Lid Colour Grey | ||
Shielding Shielded | ||
Hazardous Area Certification No | ||
Series Conform | ||
Standards/Approvals No | ||
RFI Shielded Boxes
This RS Pro Aluminium Enclosure is a highly versatile and economic enclosure that has in-built shielding. The pre-cast lid and base has tooth system, which ensures continuous contact.;The threaded screw bosses are provided insude for fitting types of boards to be fitted. ;An IP66 seal, ensures this enclosure is dust proof and weather resistant..
Features and Benefits
Baked enamel heavy-duty boxes with overlapping tongue and groove to provide a high level of RFI screening
Neoprene sealing gasket provides protection to IP66
Internal mounts for PCBs, earth tags etc (supplied with copper plated screws)
Lid to box fixing screws and mounting holes are outside gasket area
Temperature range of -40 to +80°C
Body colour grey (RAL7032)
Typical Applications
Test and Measurement Instrumentation;Medical Tools;Transportation Equipment;Industrial Controls;Lighting Applications
What is Supplied?
This enclosure comes complete with captive screws
