Perancea MIMRAM Series Black Polycarbonate Enclosure 50 mm, 78 mm, 50 mm
- RS 제품 번호:
- 582-041
- 제조사 부품 번호:
- RS01/582041.000
- 제조업체:
- Perancea
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩11,953.50
재고있음
- 141 개 단위 배송 준비 완료
- 추가로 2026년 5월 08일 부터 134 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 49 | ₩11,953.50 |
| 50 - 99 | ₩11,485.50 |
| 100 + | ₩10,998.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 582-041
- 제조사 부품 번호:
- RS01/582041.000
- 제조업체:
- Perancea
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Perancea | |
| Product Type | Enclosure | |
| Body Material | Polycarbonate | |
| External Height | 50mm | |
| External Width | 50mm | |
| External Length | 78mm | |
| Colour | Black | |
| Lid Colour | Black | |
| Shielding | Unshielded | |
| Hazardous Area Certification | No | |
| Series | MIMRAM | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Perancea | ||
Product Type Enclosure | ||
Body Material Polycarbonate | ||
External Height 50mm | ||
External Width 50mm | ||
External Length 78mm | ||
Colour Black | ||
Lid Colour Black | ||
Shielding Unshielded | ||
Hazardous Area Certification No | ||
Series MIMRAM | ||
Standards/Approvals No | ||
For easy assembly the base and 76 mm cover feature moulded-in PCB support guides
What do you get one with this item RS01/582041.000?

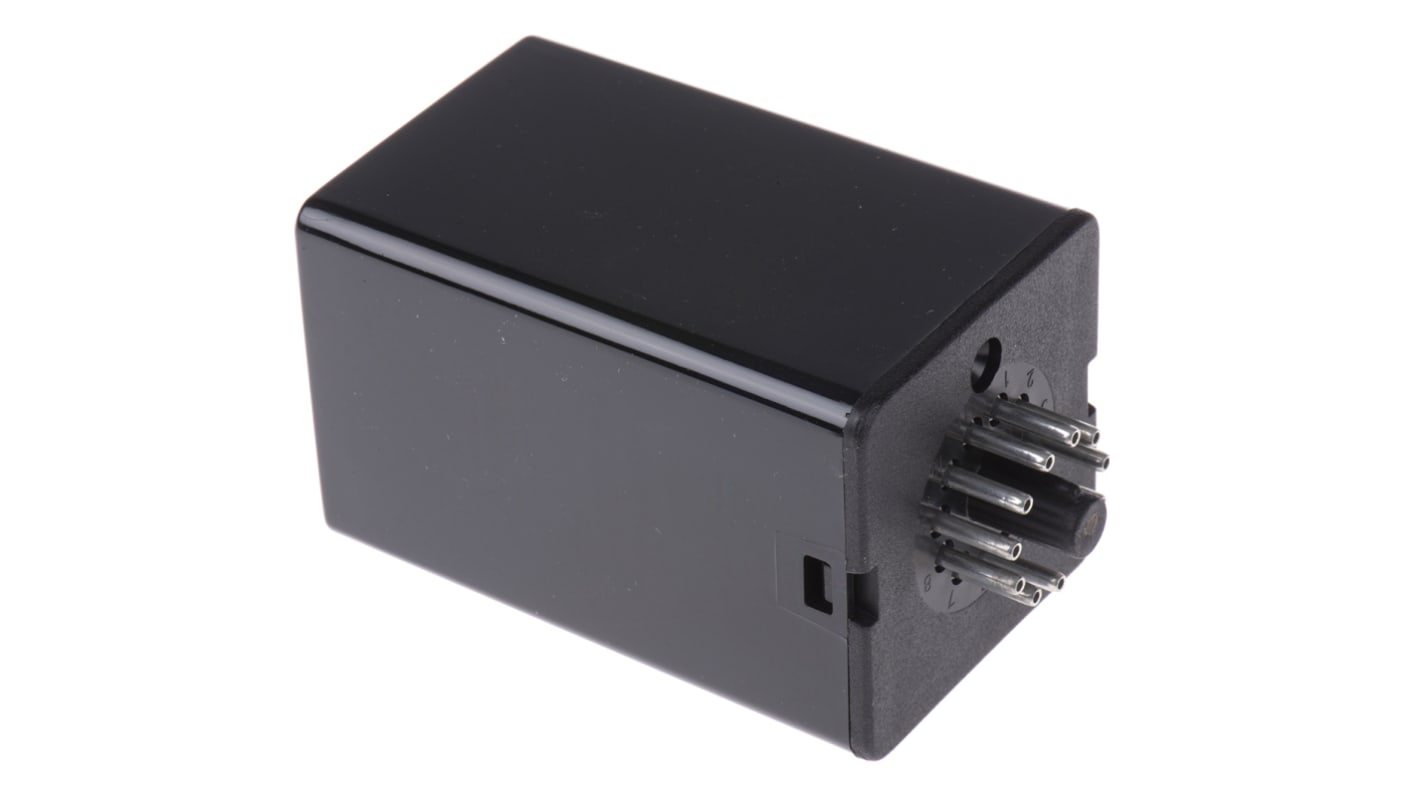

A black 11-Pin base plug-in case and a 76 mm black enclosure cover
8-Pin (octal) and 11-Pin (B11A) Plug-in Cases with covers
Perancea’s plug-in cases provide environmental protection for packaging small assemblies in applications including timers, machine tool cycling, light controllers and control panels in the electronics and electrical industry sectors. Tubular brass electrical pins are electro-tinned over a nickel flash for easy wire insertion and solderability. They are manufactured for high reliability and repeated plugging and unplugging.
Features and Benefits:
Black glass-filled nylon bases, incorporating location for PC cards
Easy plug-in replacements that are interchangeable
High impact resistant snap-fit polycarbonate covers
Label recess is moulded into the cover top
Finish: external surfaces are textured except central area around pins and numbering
Typical Applications
Test and Measurement Equipment
CCTV/Surveillance Tools
Traffic Management Equipment
Water Treatment
Different sizes available which include:
582-041 – 11-Pin base with 76 mm cover
582-013 – 8-Pin base with 41 mm cover
582-029 – 8-Pin base with 76 mm cover
582-035 – 11-Pin base with 41 mm cover
Frequently Asked Questions
Does this product have FRI shielding?
No, this product is not FRI Shielded
Note
Kit consists of 1 x base and 1 x case.
