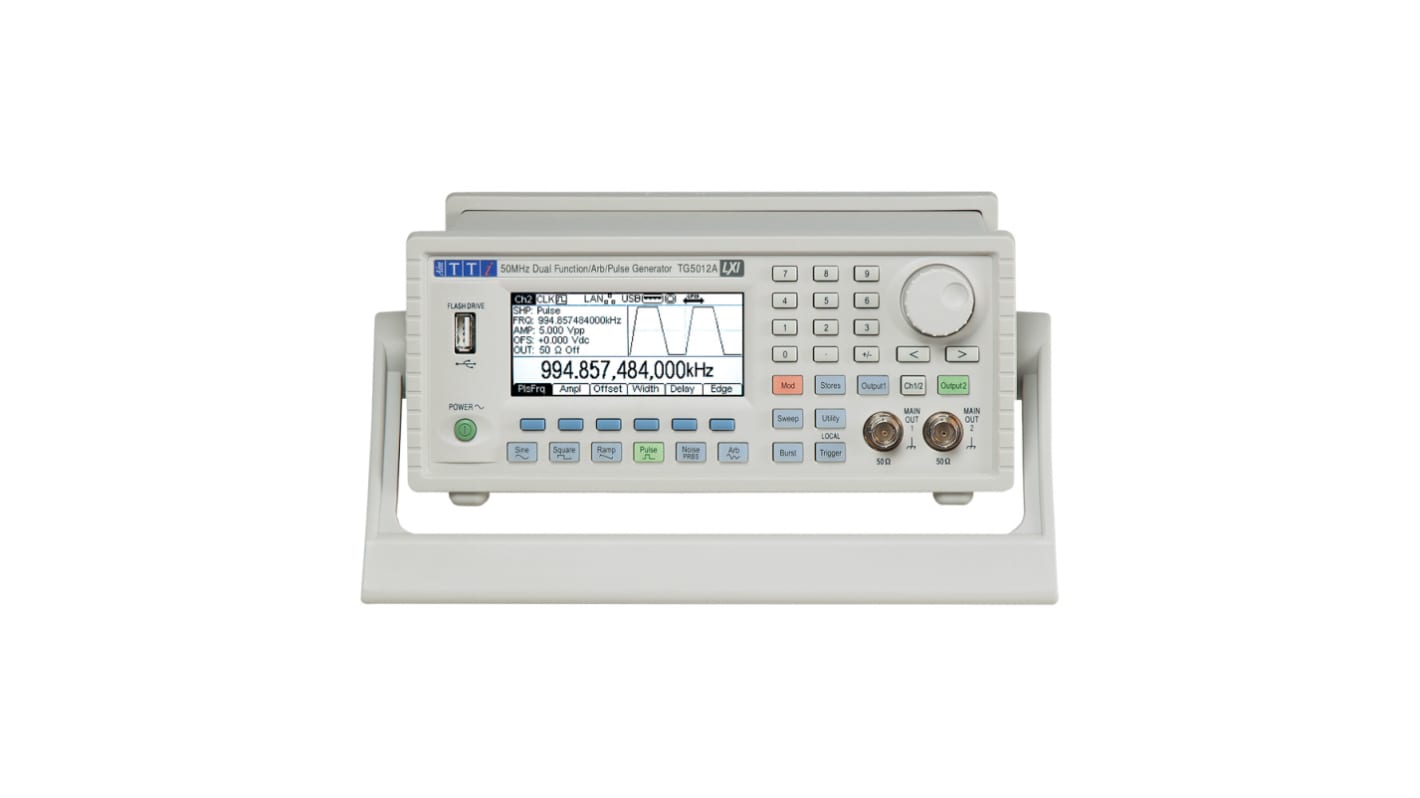

Aim-TTi TG5012A Function Generator, 1μHz Min, 50MHz Max, FM Modulation, Variable Sweep

RS 제품 번호:: 800-8239
제조사 부품 번호:: TG5012A
제조업체:: Aim-TTi

Aim-TTi TG5012A Function Generator, 1μHz Min, 50MHz Max, FM Modulation, Variable Sweep

Subtotal (1 unit)*

₩2,298,644.04

재고있음

2 개 단위 배송 준비 완료
추가로 2026년 1월 30일 부터 2 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩2,298,644.04

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 800-8239
제조사 부품 번호:: TG5012A
제조업체:: Aim-TTi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Aim-TTi
	Maximum Frequency Range Sinewave	50MHz
	Number of Channels	2
	Maximum Frequency Range Square Pulse and Arbitrary Waveform	10 MHz, 12.5 MHz, 50 MHz
	Series	TGxA
	Output Impedance	50Ω
	Minimum Frequency Range Sinewave	1µHz
	Variable Sweep	Yes
	Minimum Frequency Range Square Pulse and Arbitrary Waveform	1 μHz, 500 μHz
	FM Modulation	Yes
	Time Base Accuracy	1ppm
	Digital Frequency	Yes
	Maximum Frequency Range Triangle/Saw	1MHz
	Minimum Frequency Range Triangle/Saw	1µHz
	Maximum Operating Temperature	+40°C
	Output Amplitude	20V Pk-Pk
	Internal and External Amplitude Modulation	Yes
	Operating Temperature Range	+5 → +40 °C
	Input Impedance	5 kΩ
	Interface Type	LAN, USB
	Model Number	TG5012A
	Height	97mm
	Minimum Operating Temperature	+5°C
	Frequency Range Square Pulse and Arbitrary Waveform	1 μHz → 10 MHz, 1 μHz → 50 MHz, 500 μHz → 12.5 MHz
	Dimensions	295 x 250 x 97mm
	Internal Linear and Log Sweep	Yes
	Length	295mm
	Digital Amplitude and Offset	Yes
	Weight	2.7kg
	Width	250mm

	모두 선택
	브랜드 Aim-TTi
	Maximum Frequency Range Sinewave 50MHz
	Number of Channels 2
	Maximum Frequency Range Square Pulse and Arbitrary Waveform 10 MHz, 12.5 MHz, 50 MHz
	Series TGxA
	Output Impedance 50Ω
	Minimum Frequency Range Sinewave 1µHz
	Variable Sweep Yes
	Minimum Frequency Range Square Pulse and Arbitrary Waveform 1 μHz, 500 μHz
	FM Modulation Yes
	Time Base Accuracy 1ppm
	Digital Frequency Yes
	Maximum Frequency Range Triangle/Saw 1MHz
	Minimum Frequency Range Triangle/Saw 1µHz
	Maximum Operating Temperature +40°C
	Output Amplitude 20V Pk-Pk
	Internal and External Amplitude Modulation Yes
	Operating Temperature Range +5 → +40 °C
	Input Impedance 5 kΩ
	Interface Type LAN, USB
	Model Number TG5012A
	Height 97mm
	Minimum Operating Temperature +5°C
	Frequency Range Square Pulse and Arbitrary Waveform 1 μHz → 10 MHz, 1 μHz → 50 MHz, 500 μHz → 12.5 MHz
	Dimensions 295 x 250 x 97mm
	Internal Linear and Log Sweep Yes
	Length 295mm
	Digital Amplitude and Offset Yes
	Weight 2.7kg
	Width 250mm

해당 안됨

COO (Country of Origin):: GB

Aim-TTi Function Generator, 5 kΩ Input Impedance, 295 x 250 x 97mm - TG5012A

This function generator by Aim-TTi is a versatile and advanced tool designed for a wide range of applications in the fields of automation, electronics, and electrical industries. With digital amplitude and offset capabilities, this function generator offers precise waveform generation up to 50MHz.

Features & Benefits

• Digital amplitude and offset for accurate waveform control
• Frequency range from 1μHz to 50MHz for versatility
• FM modulation for added signal flexibility
• LAN Interface and USB connectivity for easy operation

Applications

• Signal testing and analysis
• Circuit development and troubleshooting
• Calibration and precision measurements

Can it generate waveforms with high frequency accuracy?

Yes, the Aim-TTi function generator offers a frequency range up to 50MHz with exceptional accuracy.

Is the function generator suitable for signal modulation?

Yes, it supports FM modulation along with other digital modulation capabilities for signal manipulation.

Can the function generator be controlled remotely?

Yes, it can be controlled remotely via the LAN interface and USB connectivity options.
