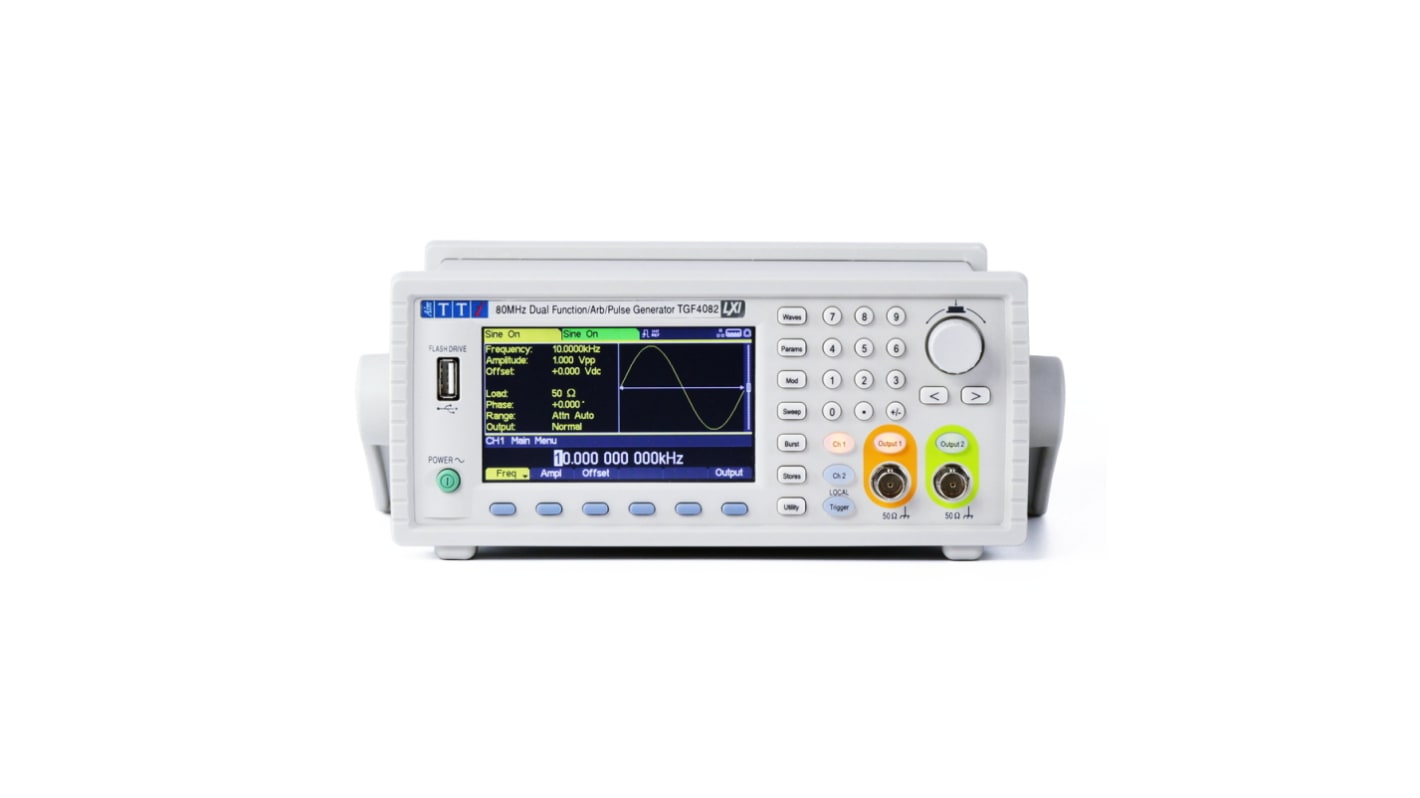

Aim-TTi TGF4082 Function Generator, 1 μHz Min, 80 MHz Max FM Modulation Variable Sweep

RS 제품 번호:: 181-3541
Distrelec 제품 번호:: 301-43-772
제조사 부품 번호:: TGF4082
제조업체:: Aim-TTi

Aim-TTi TGF4082 Function Generator, 1 μHz Min, 80 MHz Max FM Modulation Variable Sweep

Subtotal (1 unit)*

₩1,905,293.52

재고있음

추가로 2026년 2월 23일 부터 3 개 단위 배송
추가로 2026년 2월 27일 부터 2 개 단위 배송
추가로 2026년 3월 13일 부터 2 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩1,905,293.52

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 181-3541
Distrelec 제품 번호:: 301-43-772
제조사 부품 번호:: TGF4082
제조업체:: Aim-TTi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Aim-TTi
	Product Type	Function Generator
	Maximum Frequency Range Sinewave	80MHz
	Number of Channels	2
	Minimum Frequency Range Sinewave	1μHz
	Variable Sweep	Yes
	FM Modulation	Yes
	Maximum Frequency Range Square Pulse/Arbitrary Waveform	125MHz
	Minimum Frequency Range Square Pulse/Arbitrary Waveform	0.1Hz
	Time Base Accuracy	±1 ppm
	Digital Frequency	Yes
	Standards/Approvals	ISO
	Weight	3.1kg
	Maximum Frequency Range Triangle/Saw	5MHz
	Height	97mm
	Width	295 mm
	Length	250mm
	Minimum Frequency Range Triangle/Saw	1μHz
	Minimum Operating Temperature	5°C
	Digital Amplitude and Offset	Yes
	Internal Linear and Log Sweep	Yes
	Model Number	TGF4082
	TTL Output Level	10V Pk-Pk
	Maximum Operating Temperature	40°C
	Internal and External Amplitude Modulation	Yes
	Input Impedance	10kΩ
	Interface Type	LAN, USB, GPIB
	Output Amplitude	10 V Pk-Pk

	모두 선택
	브랜드 Aim-TTi
	Product Type Function Generator
	Maximum Frequency Range Sinewave 80MHz
	Number of Channels 2
	Minimum Frequency Range Sinewave 1μHz
	Variable Sweep Yes
	FM Modulation Yes
	Maximum Frequency Range Square Pulse/Arbitrary Waveform 125MHz
	Minimum Frequency Range Square Pulse/Arbitrary Waveform 0.1Hz
	Time Base Accuracy ±1 ppm
	Digital Frequency Yes
	Standards/Approvals ISO
	Weight 3.1kg
	Maximum Frequency Range Triangle/Saw 5MHz
	Height 97mm
	Width 295 mm
	Length 250mm
	Minimum Frequency Range Triangle/Saw 1μHz
	Minimum Operating Temperature 5°C
	Digital Amplitude and Offset Yes
	Internal Linear and Log Sweep Yes
	Model Number TGF4082
	TTL Output Level 10V Pk-Pk
	Maximum Operating Temperature 40°C
	Internal and External Amplitude Modulation Yes
	Input Impedance 10kΩ
	Interface Type LAN, USB, GPIB
	Output Amplitude 10 V Pk-Pk

COO (Country of Origin):: GB

Aim-TTi TGF4000 Series Function Generator, Digital Frequency, FM Modulation - TGF4082

This dual-channel function generator provides a frequency range up to 40MHz, offering high-quality signal generation for various applications.

Features & Benefits

• 40MHz frequency range allowing for versatile waveform generation

• Dual-channel output for independent or linked operation

• High resolution pulse generator with up to 100MHz

• 16-bit arbitrary waveforms at 800MSa/s for precise control

• Wideband noise generator for comprehensive modulation options

• Comprehensive built-in waveforms and modulation types for diverse applications

• Remote control via USB, GPIB, and LAN interfaces for ease of use

Applications

• Digital Amplitude and Offset control for precise signal generation

• Wide frequency range suitable for research and development in electronics

• Ideal for use in laboratory settings for testing and calibration

• Suitable for educational purposes in electronics and engineering courses

Can it provide high-resolution pulse generation?

Yes, it offers a high-resolution pulse generator up to 100MHz for detailed pulse waveform generation.

Will it allow remote control via different interfaces?

Yes, this function generator supports remote control through USB, GPIB, and LAN interfaces for enhanced usability.

Is the frequency range suitable for educational purposes?

The 40MHz frequency range of the TGF4082 makes it ideal for educational settings offering diverse application scenarios.
