모두 선택	제품 정보	값
	브랜드	BK Precision
	Product Type	Frequency Counter
	Maximum Frequency	6GHz
	Minimum Frequency	0.001Hz
	Resolution	10 Digits
	Pulse Width Resolution	20ns
	Display Type	LCD
	Maximum Input Voltage	30V
	Minimum Input Voltage	15V
	Input Impedance	50Ω
	Minimum Operating Temperature	5°C
	Maximum Operating Temperature	40°C
	Measurement Time	100s
	Connector Type	Type N
	Standards/Approvals	Complies EN610101, Complies EN61326
	Height	3.5in
	Length	235mm
	Width	10.2 in
	Model Number	1826B
	Plug Type	AC Adapter

	모두 선택
	브랜드 BK Precision
	Product Type Frequency Counter
	Maximum Frequency 6GHz
	Minimum Frequency 0.001Hz
	Resolution 10 Digits
	Pulse Width Resolution 20ns
	Display Type LCD
	Maximum Input Voltage 30V
	Minimum Input Voltage 15V
	Input Impedance 50Ω
	Minimum Operating Temperature 5°C
	Maximum Operating Temperature 40°C
	Measurement Time 100s
	Connector Type Type N
	Standards/Approvals Complies EN610101, Complies EN61326
	Height 3.5in
	Length 235mm
	Width 10.2 in
	Model Number 1826B
	Plug Type AC Adapter

COO (Country of Origin):: GB

The BK1820B Series Universal Frequency Counters are Compact instruments designed for versatile frequency measurements. They’re equipped with a high-quality temperature-compensated internal frequency reference to provide exceptional stability and accuracy, with a low aging rate of ±1 ppm across the entire temperature range.

Featured on the front is a 0.5 in LCD for displaying frequency, period, ratio, Pulse width, or event count measurements. Multiple input channels allow for precise measurements across a broad range of frequencies. Input A offers flexible signal conditioning, with configurable coupling (AC or DC), input impedance (1 MΩ or 50 Ω), attenuation (1:1 or 5:1), threshold (fully variable) and Active edge. With the BK1826B, an additional input C offers an N-type connector with 50 Ω input impedance and frequency range of 3 GHz to 6 GHz.

3 GHz (BK1823B) and 6 GHz (BK1826B) models

Dedicated microwave channel with N-type connector (BK1826B only)

10-digit display resolution with 0.5 in LCD

±1 ppm time base stability

Internal rechargeable batteries allow for up 24 hours of operating life

Frequency ratio measurement function

Time interval measurement

Remote control with USB (VCOM) Interface

Selectable measurement time, 100 s, 10 s, 1 s, and 0.3 s

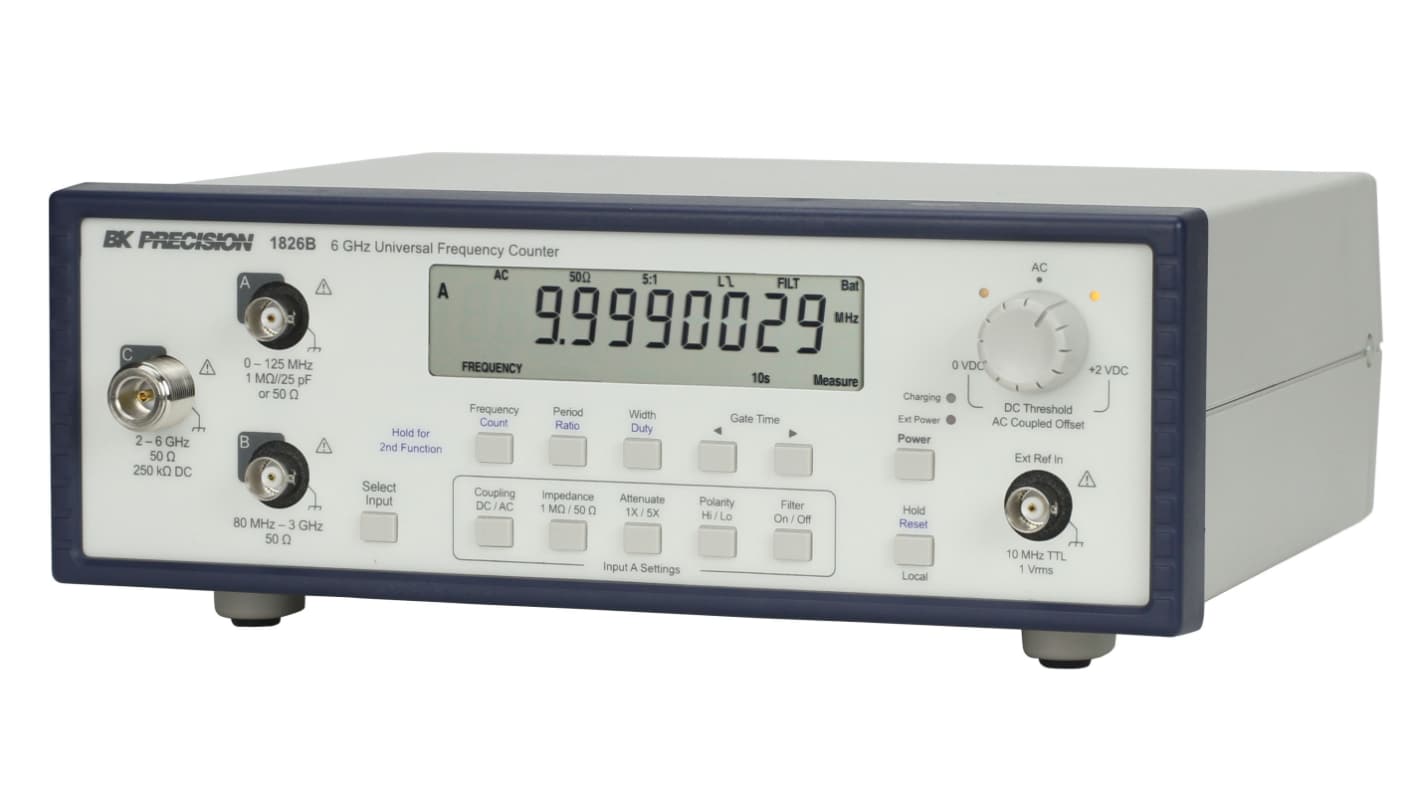

BK Precision 1826B Frequency Counter, 0.001 Hz Min, 6 GHz Max, 10 Digits Resolution
