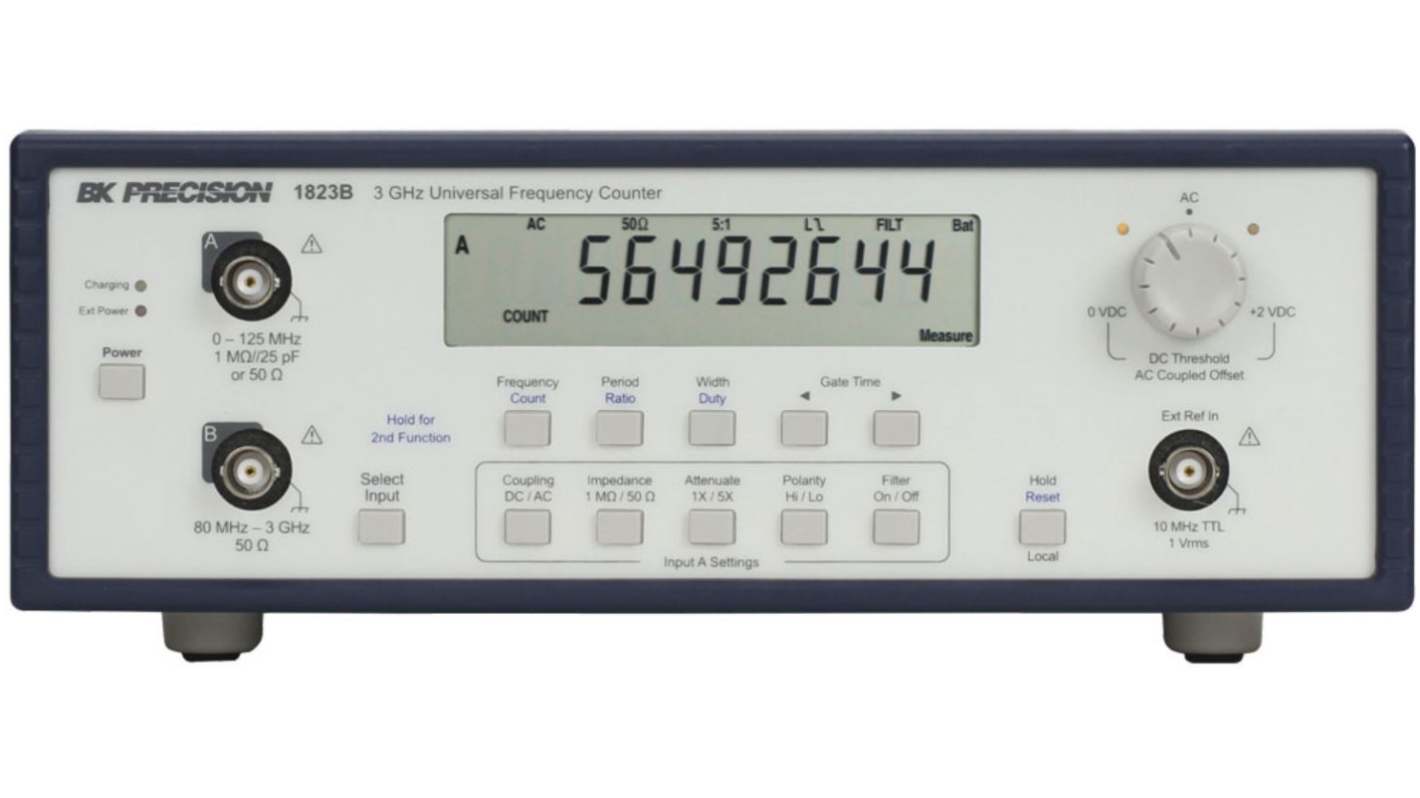

BK Precision 1823B Frequency Counter, 0.001 Hz Min, 3 GHz Max, 10 Digits Resolution

모든 Frequency Counters 열람하기

Subtotal (1 unit)*

₩1,146,950.40

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 4월 01일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,146,950.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
296-892
제조사 부품 번호:
BK1823B
제조업체:
BK Precision
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

BK Precision

Maximum Frequency

3GHz

Product Type

Frequency Counter

Minimum Frequency

0.001Hz

Resolution

10 Digits

Pulse Width Resolution

20ns

Display Type

LCD

Maximum Input Voltage

30V

Minimum Operating Temperature

5°C

Measurement Time

100s

Maximum Operating Temperature

40°C

Connector Type

N-type Connector

Standards/Approvals

EN61326, EN610101

Weight

2.1lb

Height

3.5in

Length

235mm

Width

10.2 in

Model Number

1823B

COO (Country of Origin):
GB
The BK1820B Series Universal Frequency Counters are compact instruments designed for versatile frequency measurements. They’re equipped with a high-quality temperature-compensated internal frequency reference to provide exceptional stability and accuracy, with a low aging rate of ±1 ppm across the entire temperature range.

Featured on the front is a 0.5 in LCD for displaying frequency, period, ratio, pulse width, or event count measurements. Multiple input channels allow for precise measurements across a broad range of frequencies. Input A offers flexible signal conditioning, with configurable coupling (AC or DC), input impedance (1 MΩ or 50 Ω), attenuation (1:1 or 5:1), threshold (fully variable) and active edge. With the BK1826B, an additional input C offers an N-type connector with 50 Ω input impedance and frequency range of 3 GHz to 6 GHz.

3 GHz (BK1823B) and 6 GHz (BK1826B) models

Dedicated microwave channel with N-type connector (BK1826B only)

10-digit display resolution with 0.5 in LCD

±1 ppm time base stability

Internal rechargeable batteries allow for up 24 hours of operating life

Frequency ratio measurement function

Time interval measurement

Remote control with USB (VCOM) interface

Selectable measurement time, 100 s, 10 s, 1 s, and 0.3 s
