Infineon 256 kB Parallel FRAM 28-Pin SOIC

RS 제품 번호:: 188-5426
제조사 부품 번호:: FM28V020-SG
제조업체:: Infineon

Infineon 256 kB Parallel FRAM 28-Pin SOIC

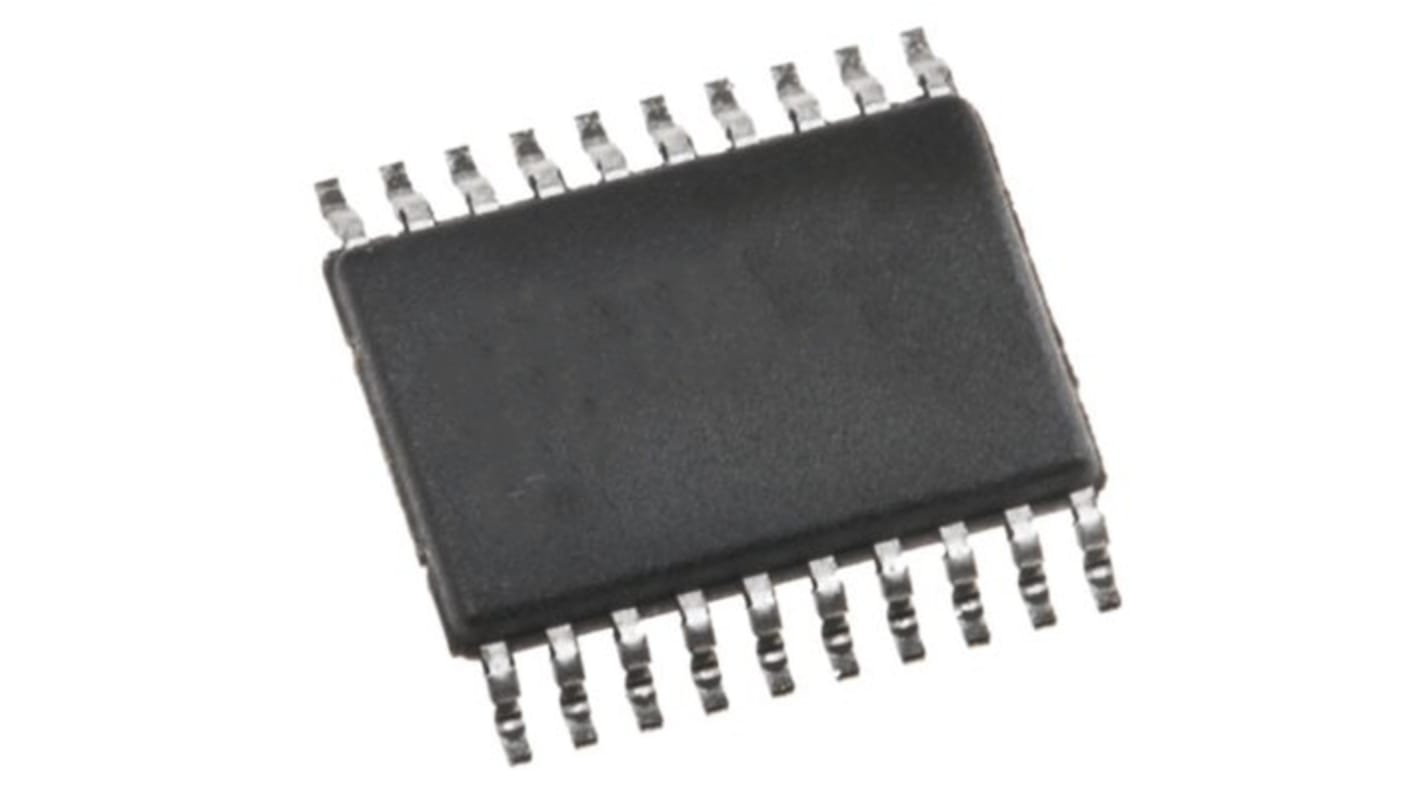

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 tube of 27 units)*

₩573,480.00

243 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tube*
27 - 27	₩21,240.00	₩573,480.00
54 - 81	₩20,602.00	₩556,260.00
108 +	₩19,986.00	₩539,600.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 188-5426
제조사 부품 번호:: FM28V020-SG
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Memory Size	256kB
	Product Type	FRAM
	Organisation	32K x 8 bit
	Interface Type	Parallel
	Data Bus Width	8bit
	Maximum Random Access Time	70ns
	Mount Type	Surface
	Package Type	SOIC
	Pin Count	28
	Height	2.37mm
	Length	18.11mm
	Standards/Approvals	No
	Width	7.62mm
	Maximum Operating Temperature	85°C
	Number of Bits per Word	8
	Number of Words	32k
	Maximum Supply Voltage	3.6V
	Minimum Supply Voltage	2V
	Automotive Standard	AEC-Q100
	Minimum Operating Temperature	-40°C

	모두 선택
	브랜드 Infineon
	Memory Size 256kB
	Product Type FRAM
	Organisation 32K x 8 bit
	Interface Type Parallel
	Data Bus Width 8bit
	Maximum Random Access Time 70ns
	Mount Type Surface
	Package Type SOIC
	Pin Count 28
	Height 2.37mm
	Length 18.11mm
	Standards/Approvals No
	Width 7.62mm
	Maximum Operating Temperature 85°C
	Number of Bits per Word 8
	Number of Words 32k
	Maximum Supply Voltage 3.6V
	Minimum Supply Voltage 2V
	Automotive Standard AEC-Q100
	Minimum Operating Temperature -40°C

Datasheet FM28V020-SG

COO (Country of Origin):: US

Infineon FRAM, 256kB Memory Size, 3.6V Maximum Supply Voltage - FM28V020-SG

This FRAM is a non-volatile memory device designed for embedded systems requiring frequent write cycles and low-power operation. It operates across a reduced-voltage range suitable for battery-powered and mixed-voltage environments and communicates via a parallel interface for rapid data transfer in compact electronic assemblies.

Features and Benefits:

• 256kB capacity offering substantial persistent storage
• 8-bit data bus enabling byte-wide read/write operations
• 70ns maximum random access time supporting fast retrieval
• Operates from 2.0-3.6V to minimise power consumption
• Qualified to Automotive AEC-Q100 for vehicular use
• 28-pin SOIC surface-mount package for automated assembly

Applications

• Suitable for automotive control unit data logging
• Ideal for industrial sensor calibration storage
• Used with low-voltage embedded devices requiring endurance
• Can be used for parameter storage in safety systems
• Used for rapid-read lookup tables in control firmware

What temperature range can it withstand during operation?

It functions across an industrial span from -40 to 85°C, allowing deployment in harsh ambient conditions.

What physical size should designers allow on the PCB?

The device mounts as a surface component with a footprint corresponding to a 28-pin SOIC and a package envelope measuring 4.97mm by 3.98mm with a height of 1.38 mm.

How is memory organised for software addressing?

The memory is arranged as 32K words of 8 bits, providing straightforward byte-addressable storage for firmware.

Which interface should be routed for connection?

A parallel bus must be implemented to match the device’s parallel interface operation and 8-bit data width.
