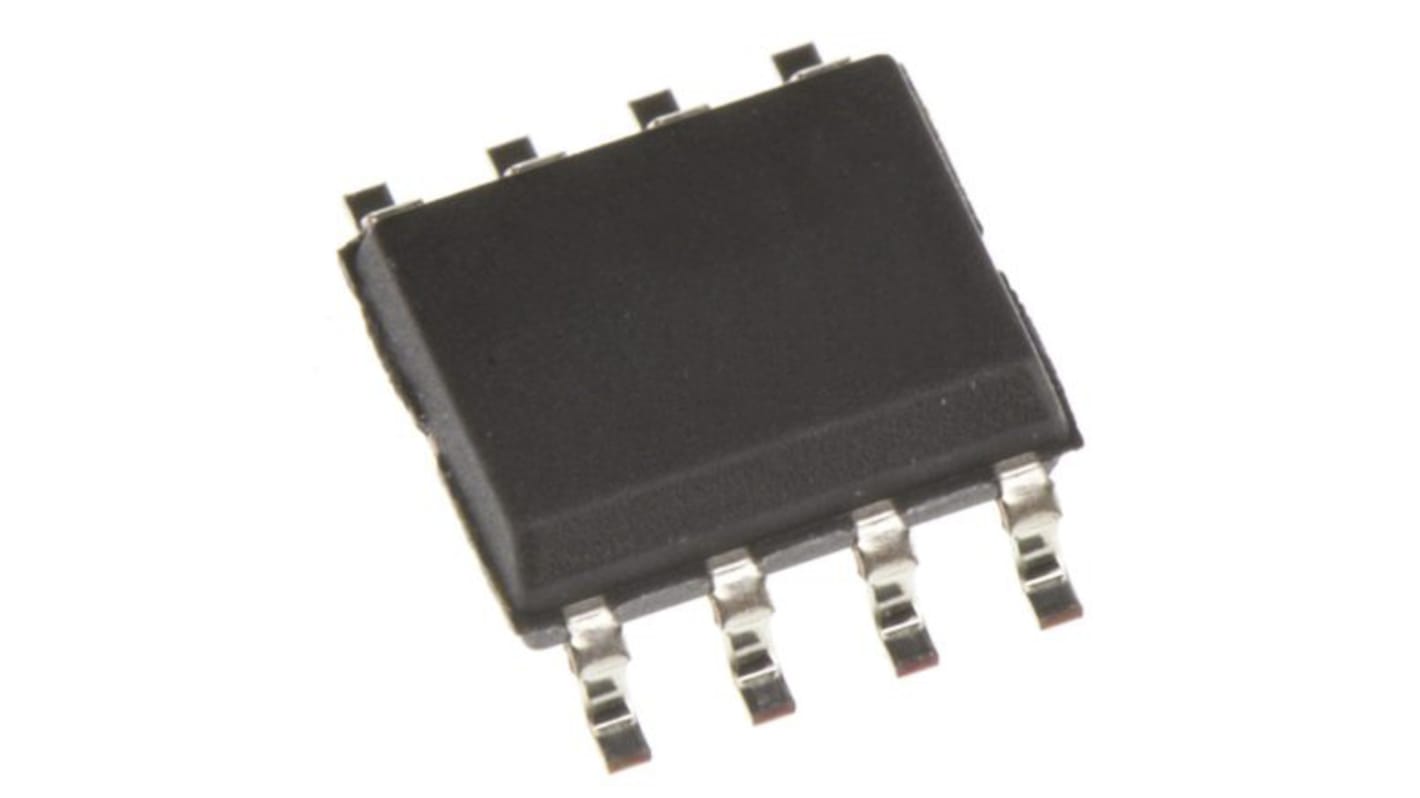

Infineon 2Mbit Serial-SPI FRAM Memory 8-Pin SOIC, CY15V102QN-50SXE

모든 FRAM Memory 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 94 units)*

₩1,618,755.20

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2027년 1월 04일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Tube*
94 - 94₩17,220.80₩1,618,738.28
188 - 282₩16,876.76₩1,586,344.00
376 +₩16,538.36₩1,554,622.76

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
188-3437
제조사 부품 번호:
CY15V102QN-50SXE
제조업체:
Infineon
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Infineon

Memory Size

2Mbit

Organisation

256K x 8 bit

Interface Type

Serial-SPI

Data Bus Width

8bit

Maximum Random Access Time

9ns

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

8

Dimensions

5.33 x 5.33 x 1.78mm

Length

5.33mm

Width

5.33mm

Maximum Operating Supply Voltage

1.89 V

Height

1.78mm

Maximum Operating Temperature

+125 °C

Minimum Operating Supply Voltage

1.71 V

Minimum Operating Temperature

-40 °C

Automotive Standard

AEC-Q100

Number of Words

256K

Number of Bits per Word

8bit

2-Mbit ferroelectric random access memory (F-RAM) logically organized as 256K x 8
Virtually unlimited endurance of 10 trillion (1013) read/write cycles
121-year data retention
NoDelay™ writes
Advanced high-reliability ferroelectric process
Fast serial peripheral interface (SPI)
Up to 50 MHz frequency
Supports SPI mode 0 (0, 0) and mode 3 (1, 1)
Sophisticated write protection scheme
Hardware protection using the Write Protect (WP) pin
Software protection using Write Disable (WRDI) instruction
Software block protection for 1/4, 1/2, or entire array
Device ID and Serial Number
Device ID includes manufacturer ID and product ID
Unique ID
Serial Number
Dedicated 256-byte special sector F-RAM
Dedicated special sector write and read
Stored content can survive up to 3 standard reflow soldering cycles
Low-power consumption
3.7 mA (typ) active current at 40 MHz
2.7 μA (typ) standby current
1.1 μA (typ) Deep Power Down mode current
0.1 μA (typ) Hibernate mode current
Low-voltage operation:
CY15V102QN: VDD = 1.71 V to 1.89 V
CY15B102QN: VDD = 1.8 V to 3.6 V
Automotive operating temperature: -40 °C to +125 °C
AEC-Q100 Grade 1 compliant
8-pin Small Outline Integrated Circuit (SOIC) package

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
