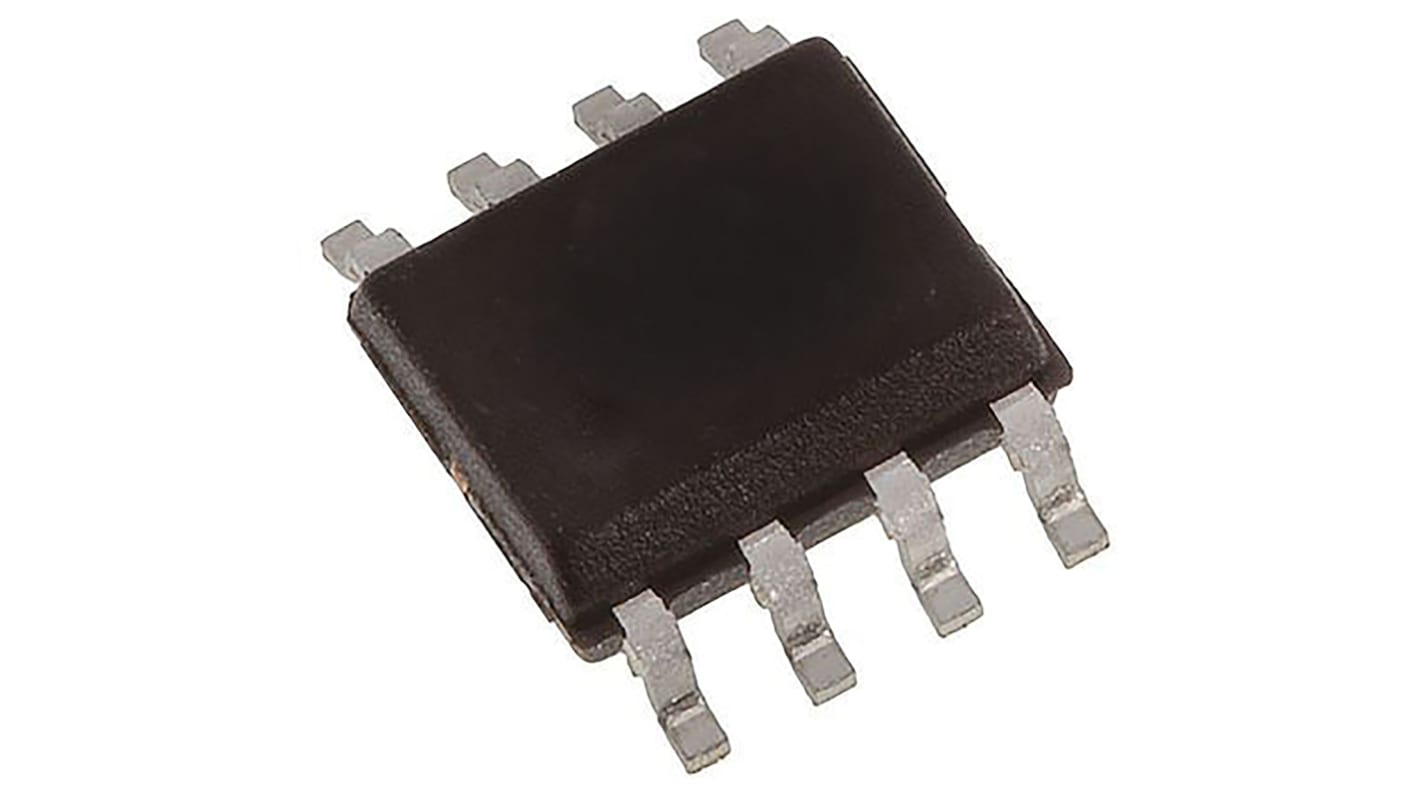

Infineon 16 kB FRAM 8-Pin SOIC, FM24CL16B-GTR
- RS 제품 번호:
- 184-0061P
- 제조사 부품 번호:
- FM24CL16B-GTR
- 제조업체:
- Infineon
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 받기
1250개 더 담고 ₩90,000.00 할인 받기
View bulk pricing optionsSubtotal 625 units (supplied on a reel)*
₩1,965,000.00
일시적 품절
- 2027년 5월 19일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 절감 |
|---|---|---|
| 625 - 1245 | ₩3,144.00 | - |
| 1250 + | ₩3,072.00 | ₩90,000.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 184-0061P
- 제조사 부품 번호:
- FM24CL16B-GTR
- 제조업체:
- Infineon
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Infineon | |
| Memory Size | 16kB | |
| Product Type | FRAM | |
| Organisation | 2K x 8 bit | |
| Data Bus Width | 8bit | |
| Maximum Clock Frequency | 1MHz | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Height | 1.38mm | |
| Standards/Approvals | No | |
| Width | 3.98mm | |
| Length | 4.97mm | |
| Maximum Operating Temperature | 85°C | |
| Number of Words | 2k | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 3.6V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Infineon | ||
Memory Size 16kB | ||
Product Type FRAM | ||
Organisation 2K x 8 bit | ||
Data Bus Width 8bit | ||
Maximum Clock Frequency 1MHz | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
Height 1.38mm | ||
Standards/Approvals No | ||
Width 3.98mm | ||
Length 4.97mm | ||
Maximum Operating Temperature 85°C | ||
Number of Words 2k | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 3.6V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard AEC-Q100 | ||
Infineon FRAM, 16kB Memory Size, 3.6V Maximum Supply Voltage - FM24CL16B-GTR
This FRAM is a non-volatile ferroelectric memory device intended for low-power data storage in embedded and automotive environments. It operates within a narrow supply range and provides byte-wide access for systems requiring frequent writes and long data retention without battery backup. The component is supplied in a compact surface-mount package suited to space-constrained assemblies.
Features and Benefits:
• 8‑bit parallel organisation enabling straightforward byte transfers
• 16kB total storage supporting frequent write cycles
• 1MHz maximum clock for timely data access
• 2.7-3.6V supply range permitting stable low‑voltage operation
• AEC‑Q100 qualification ensuring suitability for automotive use
• -40 to 85°C operating range for varied temperature environments
• 16kB total storage supporting frequent write cycles
• 1MHz maximum clock for timely data access
• 2.7-3.6V supply range permitting stable low‑voltage operation
• AEC‑Q100 qualification ensuring suitability for automotive use
• -40 to 85°C operating range for varied temperature environments
Applications
• Suitable for in-vehicle event logging and parameter storage
• Ideal for industrial sensor data buffering and logging
• Used with microcontrollers requiring non-volatile scratch memory
• Can be used for calibration and configuration retention in control units
• Used for low-power data-logging modules in portable equipment
• Ideal for industrial sensor data buffering and logging
• Used with microcontrollers requiring non-volatile scratch memory
• Can be used for calibration and configuration retention in control units
• Used for low-power data-logging modules in portable equipment
What package and mounting method does it use?
It is supplied in an 8‑pin SOIC package intended for surface‑mount soldering.
How many addressable words and bit organisation are provided?
The memory is organised as 2k words of 8 bits each, delivering 2kx8bit addressing.
What are the physical profile constraints for PCB layout?
The package footprint measures 3.98mm in width and 4.97mm in length with a component height of 1.38mm.
What supply voltage extremes and clock limits apply during design?
Designs should accommodate a minimum supply of 2.7V, a maximum of 3.6V, and a maximum clock frequency of 1MHz.
