Infineon 4 kB FRAM 8-Pin SOIC
- RS 제품 번호:
- 181-8319P
- 제조사 부품 번호:
- FM24CL04B-GTR
- 제조업체:
- Infineon

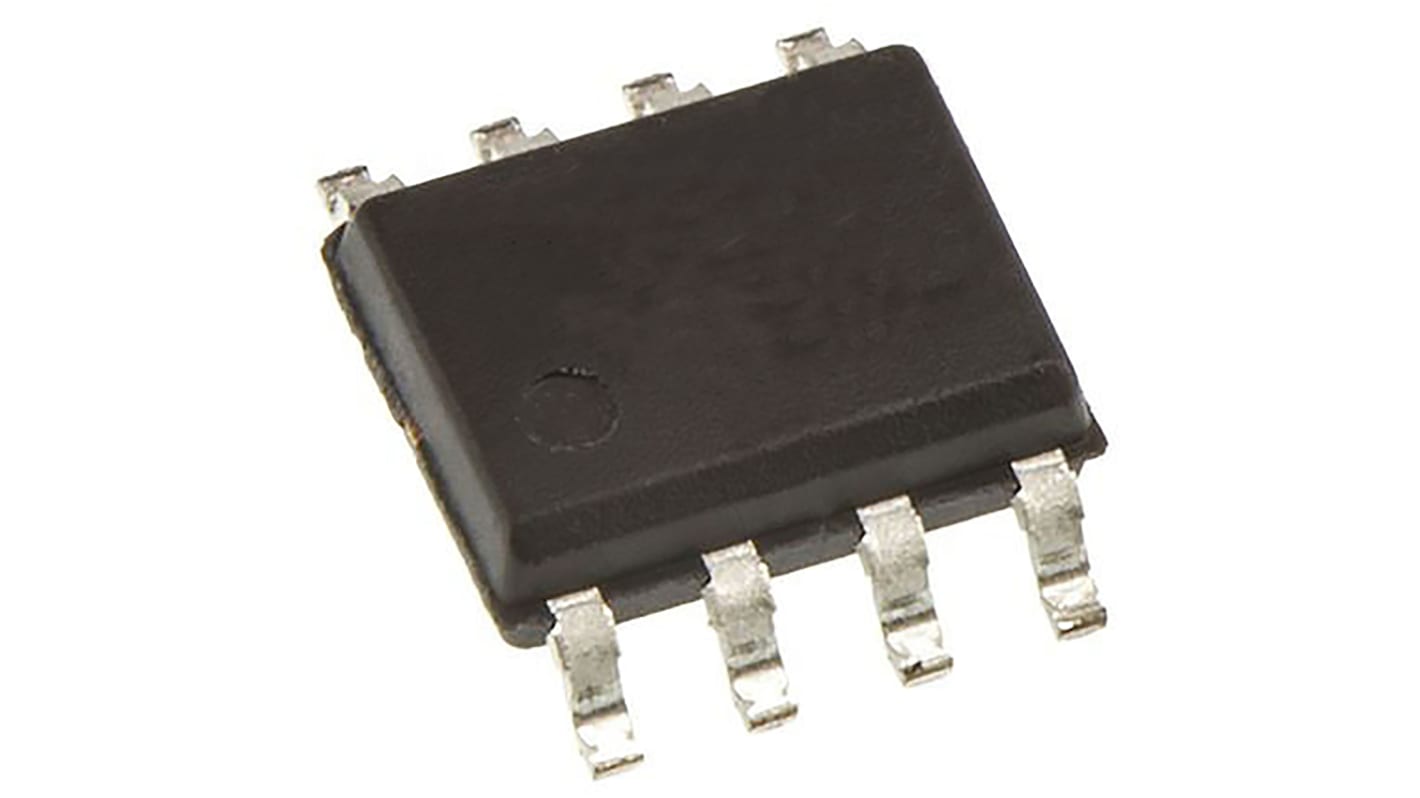

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal 625 units (supplied on a reel)*
₩2,242,500.00
일시적 품절
- 2027년 5월 19일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 625 - 1245 | ₩3,588.00 |
| 1250 + | ₩3,516.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 181-8319P
- 제조사 부품 번호:
- FM24CL04B-GTR
- 제조업체:
- Infineon
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Infineon | |
| Product Type | FRAM | |
| Memory Size | 4kB | |
| Organisation | 512M x 8 bit | |
| Data Bus Width | 8bit | |
| Maximum Random Access Time | 550ns | |
| Maximum Clock Frequency | 1MHz | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Width | 3.98mm | |
| Standards/Approvals | No | |
| Length | 4.97mm | |
| Height | 1.38mm | |
| Maximum Operating Temperature | 85°C | |
| Maximum Supply Voltage | 3.65V | |
| Number of Bits per Word | 8 | |
| Automotive Standard | AEC-Q100 | |
| Minimum Supply Voltage | 2.7V | |
| Number of Words | 512M | |
| Minimum Operating Temperature | -40°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Infineon | ||
Product Type FRAM | ||
Memory Size 4kB | ||
Organisation 512M x 8 bit | ||
Data Bus Width 8bit | ||
Maximum Random Access Time 550ns | ||
Maximum Clock Frequency 1MHz | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
Width 3.98mm | ||
Standards/Approvals No | ||
Length 4.97mm | ||
Height 1.38mm | ||
Maximum Operating Temperature 85°C | ||
Maximum Supply Voltage 3.65V | ||
Number of Bits per Word 8 | ||
Automotive Standard AEC-Q100 | ||
Minimum Supply Voltage 2.7V | ||
Number of Words 512M | ||
Minimum Operating Temperature -40°C | ||
Infineon FRAM, 4kB Memory Size, 3.65V Maximum Supply Voltage - FM24CL04B-GTR
This FRAM is a non-volatile memory device designed for low-power data storage in embedded and automotive systems. It operates within a typical single-supply range and provides byte-wide data access for firmware, calibration tables and logging tasks in space-constrained surface-mount designs. The component meets automotive stress requirements and is suitable for use across a broad industrial temperature range.
Features and Benefits:
• 8-bit data bus enabling simple byte-wise interfacing and firmware updates
• 1MHz clock supporting timely serial access for control systems
• 550ns maximum random access time reducing read latency in real-time tasks
• Operates from 2.7V to 3.65V providing compatibility with common supply rails
• AEC‑Q100 qualification permitting deployment in automotive electronic modules
• Surface-mount SOIC package allowing automated assembly on compact PCBs
• 1MHz clock supporting timely serial access for control systems
• 550ns maximum random access time reducing read latency in real-time tasks
• Operates from 2.7V to 3.65V providing compatibility with common supply rails
• AEC‑Q100 qualification permitting deployment in automotive electronic modules
• Surface-mount SOIC package allowing automated assembly on compact PCBs
Applications
• Suitable for automotive CAN node parameter storage
• Ideal for instrumentation requiring frequent non-volatile writes
• Used with microcontroller systems for calibration data retention
• Can be used for event logging in industrial control equipment
• Used for low-power battery-backed data buffering in sensors
• Ideal for instrumentation requiring frequent non-volatile writes
• Used with microcontroller systems for calibration data retention
• Can be used for event logging in industrial control equipment
• Used for low-power battery-backed data buffering in sensors
What voltage margins should designers expect when integrating this device?
The device functions across a minimum supply of 2.7V up to a maximum of 3.65V, allowing designers to select regulators and supervision thresholds that maintain reliable operation within that window.
How does the device perform under varying ambient temperatures?
It is specified to operate between -40°C and 85°C, ensuring predictable electrical behaviour for applications spanning industrial to automotive thermal environments.
What package considerations affect PCB layout for this component?
The package is a surface-mounted SOIC with a pin count of 8, so footprint clearance and solder fillet control should follow standard SOIC assembly practices to maintain mechanical and thermal integrity.
What is the organisation and capacity relevant to addressing?
Memory is organised as 512M words by 8 bits, providing a total count of addressable 8-bit locations appropriate for compact non-volatile storage needs.
