Infineon 256kbit Serial-I2C FRAM Memory 8-Pin SOIC, FM24V02A-G

Ferroelectric Random Access Memory (F-RAM) is energy-efficient and it has the highest-reliability of the non-volatile RAMs for both serial and parallel interfaces. Parts with suffix A are designed for automotive applications and are AEC-Q100 qualified.

Nonvolatile Ferroelectric RAM Memory
Fast write speed
High endurance
Low power consumption

256-Kbit ferroelectric random access memory (F-RAM logically organized as 32K x 8
High-endurance 100 trillion (1014) read/writes
151-year data retention (See the Data Retention an Endurance table)
NoDelay™ writes
Advanced high-reliability ferroelectric process
Fast two-wire serial interface (I2C)
Up to 3.4-MHz frequency[1]
Direct hardware replacement for serial EEPROM
Supports legacy timings for 100 kHz and 400 kHz
Device ID
Manufacturer ID and Product ID
Low power consumption
175-μA active current at 100 kHz
150-μA standby current
8-μA sleep mode current
Low-voltage operation: VDD = 2.0 V to 3.6 V
Industrial temperature: –40 °C to +85 °C

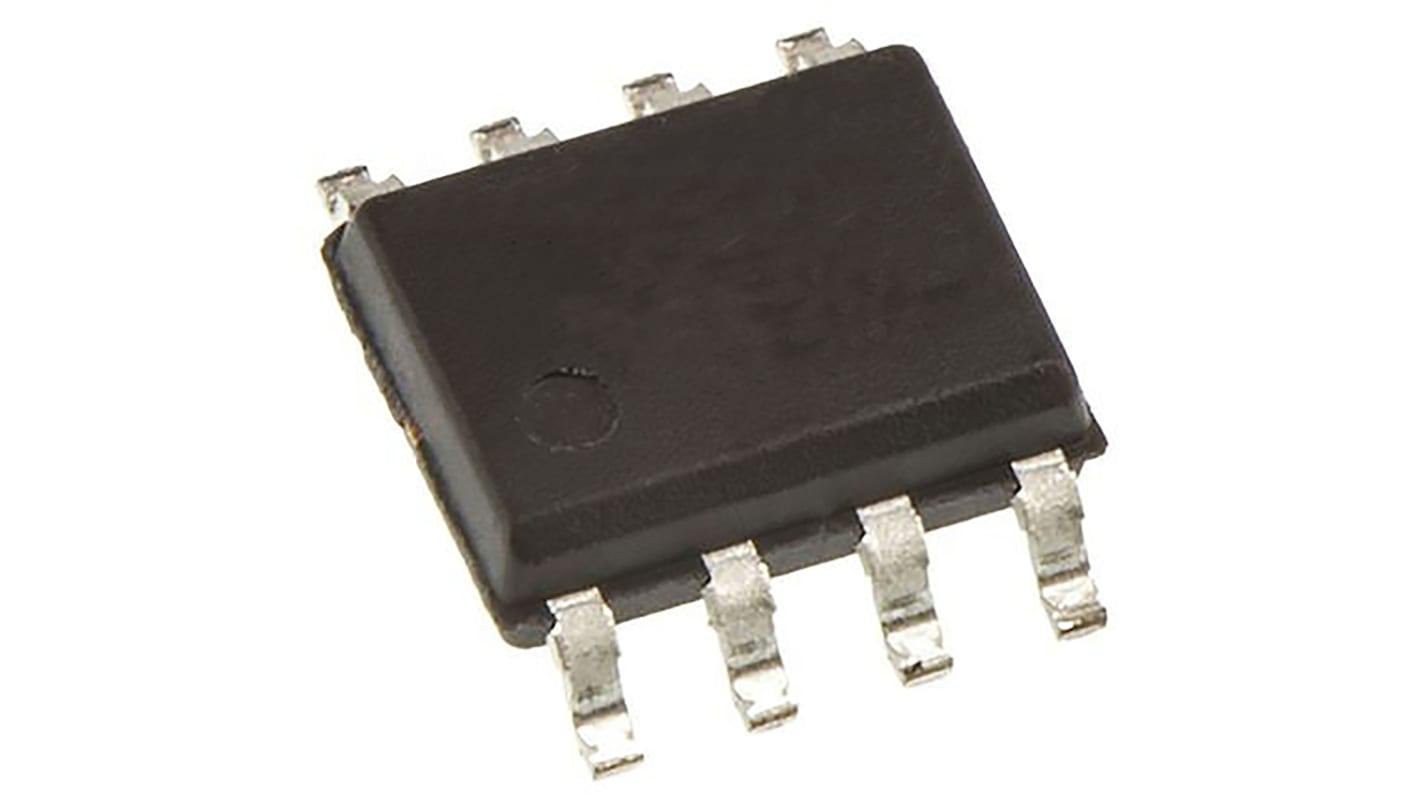

8-pin small outline integrated circuit (SOIC) package

FRAM (Ferroelectric RAM)

FRAM (Ferroelectric Random Access Memory) is a non-volatile memory that uses ferroelectric film as a capacitor for storing data. Possessing characteristics of both ROM and RAM devices, F-RAM features high-speed access, high endurance in write mode, low power consumption, non-volatility, and excellent tamper resistance. It is therefore ideal memory for use in smart cards which need high security and low power consumption, as well as cellular phones and other devices.
