Microchip MPF300-VIDEO-KIT-NS PolarFire SoC Video Kit Accessory Kit FPGA for MPFS250TS-1FCG1152I
- RS 제품 번호:
- 352-085
- 제조사 부품 번호:
- MPF300-VIDEO-KIT-NS
- 제조업체:
- Microchip
Subtotal (1 unit)*
₩3,150,259.60
재고있음
- 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩3,150,259.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 352-085
- 제조사 부품 번호:
- MPF300-VIDEO-KIT-NS
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Classification | Accessory Kit | |
| Programmable Logic Technology | FPGA | |
| Technology | Video | |
| Kit Classification | Accessory Kit | |
| For Use With | MPFS250TS-1FCG1152I | |
| Featured Device | FPGA | |
| Kit Name | PolarFire SoC Video Kit | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Classification Accessory Kit | ||
Programmable Logic Technology FPGA | ||
Technology Video | ||
Kit Classification Accessory Kit | ||
For Use With MPFS250TS-1FCG1152I | ||
Featured Device FPGA | ||
Kit Name PolarFire SoC Video Kit | ||

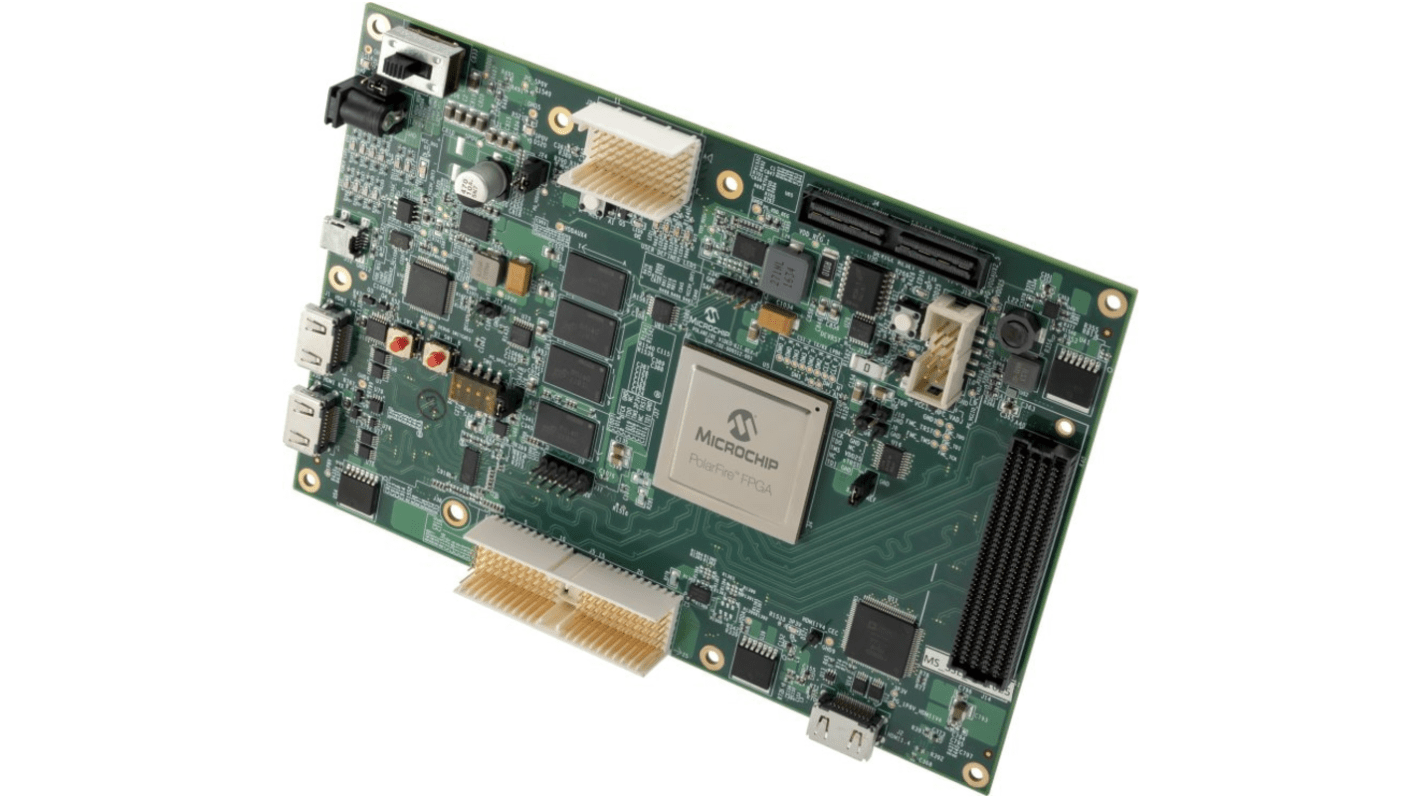

The Microchip PolarFire Video and Imaging Kit offers a high-performance evaluation of 4K image processing and rendering using dual camera sensors as well as numerous display interfaces. The kit is purpose-built for effortless prototyping of popular imaging and video protocols including MIPI CSI-2 TX, MIPI CSI-2 RX, HDMI 1.4 TX, HDMI2.0, DSI, and HD or 3G SDI. With a 300K logic element (LE) PolarFire FPGA with DDR4 and SPI-flash the kit is ideally suited for mid-bandwidth imaging and video applications. The PolarFire device on-board optimizes input/outputs (I/Os), transceiver rates, look-up table (LUT4) architecture, memories and DSPs for mid-density/mid-bandwidth ranges, to deliver a superior solution at a much lower power and lower total cost of ownership.
300K LE PolarFire FPGA in an FCG1152 Package
Sony Dual Camera Sensor (IMX334) over Amphenol FCI connector CSI-2 RX
HPC FMC Connector
4GB DDR4 x32
Power Management Unit for 1 or 1.05v PolarFire FPGA core voltage
USB to UART Interface
Embedded programming and debugging using SPI and JTAG
Sony Dual Camera Sensor (IMX334) over Amphenol FCI connector CSI-2 RX
HPC FMC Connector
4GB DDR4 x32
Power Management Unit for 1 or 1.05v PolarFire FPGA core voltage
USB to UART Interface
Embedded programming and debugging using SPI and JTAG
