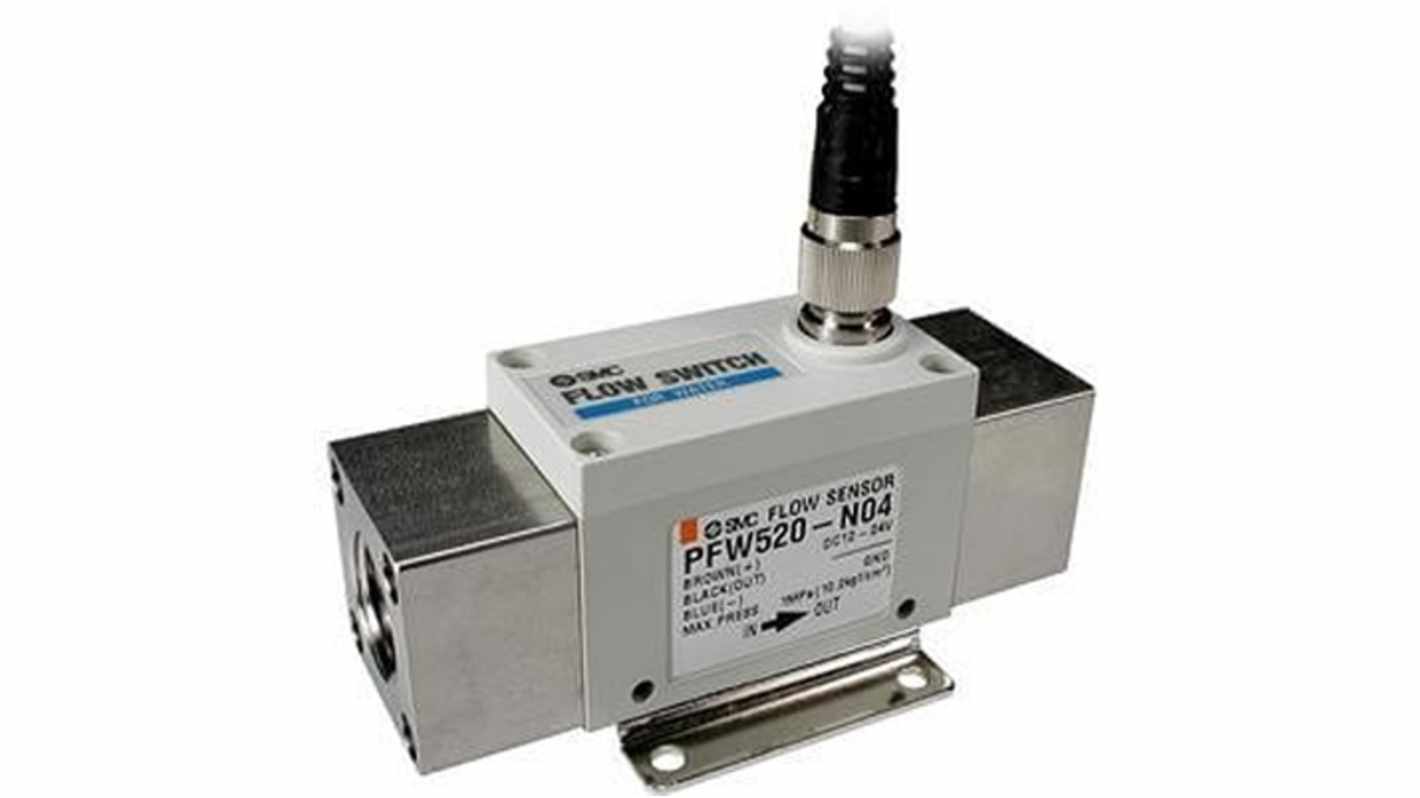

SMC PF2W520 Series Flow Sensor Flow Sensor for Water, 2L/min Min, 16 L/min Max
- RS 제품 번호:
- 402-849
- 제조사 부품 번호:
- PF2W520-F04N-2
- 제조업체:
- SMC
Subtotal (1 unit)*
₩861,284.40
일시적 품절
- 2026년 3월 23일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩861,284.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 402-849
- 제조사 부품 번호:
- PF2W520-F04N-2
- 제조업체:
- SMC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SMC | |
| Media Monitored | Water | |
| Product Type | Flow Sensor | |
| Device Type | Flow Sensor | |
| Minimum Flow Rate | 2L/min | |
| Housing Material | Nickel Plated Brass, ABS, Polycarbonate, Thermoplastic Polyester | |
| Maximum Flow Rate | 16L/min | |
| Maximum Pressure | 1.0MPa | |
| Minimum Media Temperature | 0°C | |
| IP Rating | IP65 | |
| Maximum Supply Voltage | 24V dc | |
| Minimum Operating Temperature | 0°C | |
| Maximum Media Temperature | 50°C | |
| Maximum Operating Temperature | 50°C | |
| Series | PF2W520 | |
| Standards/Approvals | RoHS, UKCA, CE | |
| Current Rating | 80 mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 SMC | ||
Media Monitored Water | ||
Product Type Flow Sensor | ||
Device Type Flow Sensor | ||
Minimum Flow Rate 2L/min | ||
Housing Material Nickel Plated Brass, ABS, Polycarbonate, Thermoplastic Polyester | ||
Maximum Flow Rate 16L/min | ||
Maximum Pressure 1.0MPa | ||
Minimum Media Temperature 0°C | ||
IP Rating IP65 | ||
Maximum Supply Voltage 24V dc | ||
Minimum Operating Temperature 0°C | ||
Maximum Media Temperature 50°C | ||
Maximum Operating Temperature 50°C | ||
Series PF2W520 | ||
Standards/Approvals RoHS, UKCA, CE | ||
Current Rating 80 mA | ||
- COO (Country of Origin):
- JP
The SMC Digital flow meter is engineered to provide precise pressure measurement and control, making it an essential component for fluid power applications. This product integrates advanced sensing technology with robust construction, ensuring reliability in demanding environments. Designed for versatility, it features compatibility with various pneumatic circuits, enhancing operational efficiency. With an emphasis on simplicity, setup and maintenance are streamlined, allowing for quick adaptation in dynamic workplace settings. The ergonomic design facilitates easy integration, making it an ideal choice for engineers seeking quality and performance in automation.
Delivers accurate pressure readings for enhanced process control
Compact design allows for installation in tight spaces
Robust construction guarantees longevity even in harsh conditions
User-friendly interface simplifies adjustments and monitoring
Versatile compatibility with multiple pneumatic systems
Lightweight build reduces installation strain
Maintains performance consistency to support critical applications
Easily adjustable settings cater to varied operational needs
