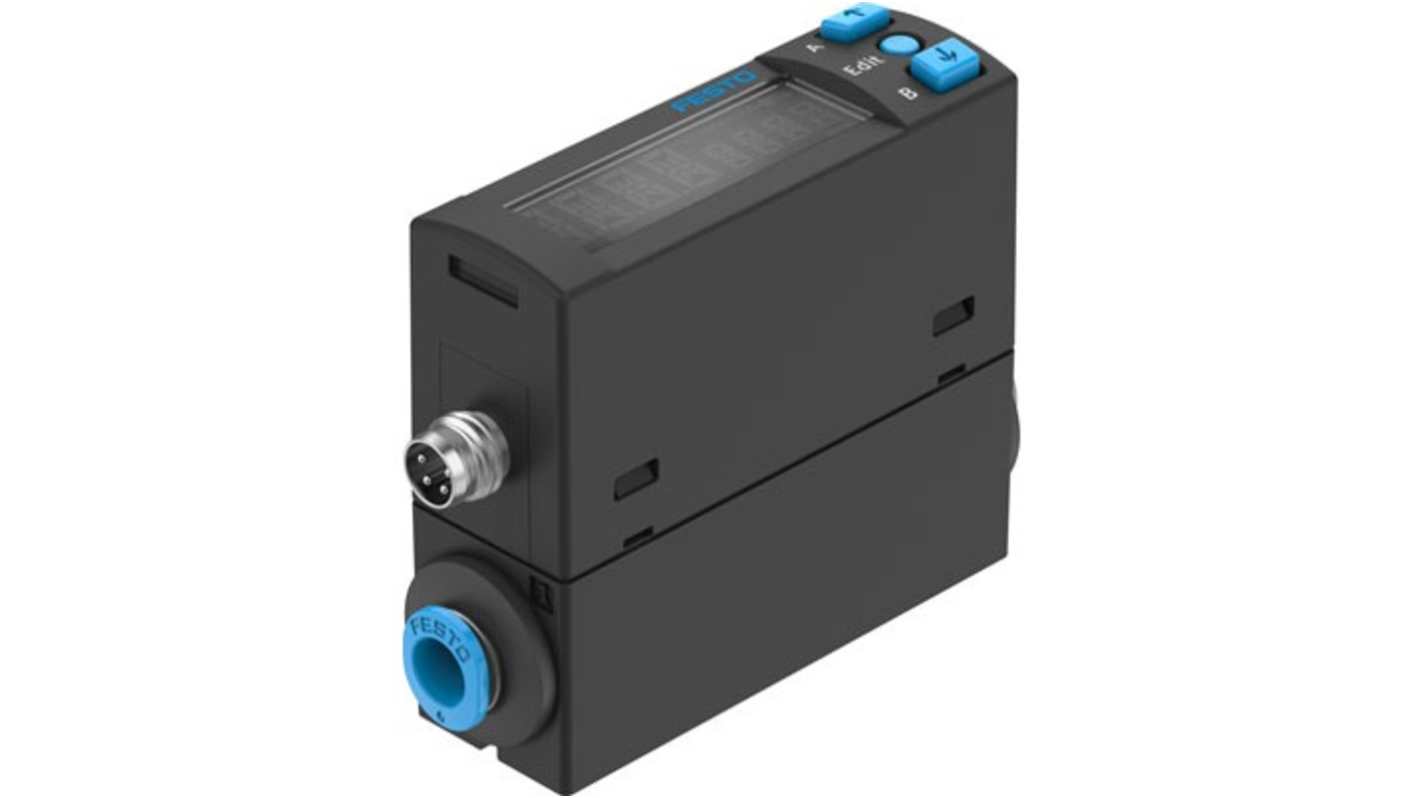

Festo SFAH Series Flow Rate Monitoring Sensor Flow Sensor for Air, 0.1L/min Min, 5L/min Max

RS 제품 번호:: 362-498
제조사 부품 번호:: SFAH-5B-Q6S-PNLK-PNVBA-M8
제조업체:: Festo

Festo SFAH Series Flow Rate Monitoring Sensor Flow Sensor for Air, 0.1L/min Min, 5L/min Max

Subtotal (1 unit)*

₩607,795.50

일시적 품절

2026년 6월 12일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩607,795.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 362-498
제조사 부품 번호:: SFAH-5B-Q6S-PNLK-PNVBA-M8
제조업체:: Festo

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Festo
	Media Monitored	Air
	Product Type	Flow Sensor
	Device Type	Flow Rate Monitoring Sensor
	Minimum Flow Rate	0.1L/min
	Maximum Flow Rate	5L/min
	Housing Material	Reinforced Polyamide
	Connection Type	Plug
	Maximum Pressure	10bar
	IP Rating	IP40
	Minimum Media Temperature	0°C
	Maximum Supply Voltage	26V
	Minimum Operating Temperature	0°C
	Maximum Media Temperature	50°C
	Maximum Operating Temperature	50°C
	Series	SFAH
	Standards/Approvals	cUL, CE, RoHS
	Current Rating	100mA

	모두 선택
	브랜드 Festo
	Media Monitored Air
	Product Type Flow Sensor
	Device Type Flow Rate Monitoring Sensor
	Minimum Flow Rate 0.1L/min
	Maximum Flow Rate 5L/min
	Housing Material Reinforced Polyamide
	Connection Type Plug
	Maximum Pressure 10bar
	IP Rating IP40
	Minimum Media Temperature 0°C
	Maximum Supply Voltage 26V
	Minimum Operating Temperature 0°C
	Maximum Media Temperature 50°C
	Maximum Operating Temperature 50°C
	Series SFAH
	Standards/Approvals cUL, CE, RoHS
	Current Rating 100mA

Festo SFAH Series Flow Sensor, 5L/min Maximum Flow Rate, 0.1L/min Minimum Flow Rate - SFAH-5B-Q6S-PNLK-PNVBA-M8, Numeric Part Number:8158414

This flow sensor monitors low-volume gas flow in industrial automation systems, providing bidirectional thermal measurement of mass and volumetric flow for applications using air, nitrogen or argon. It operates from ambient to media temperatures of 0°C to 50°C and is intended for inline pneumatic integration with tubing O.D. 6mm and an M8 plug electrical connection.

Features & Benefits

• Measures 0.1 to 5 l/min for precise low-flow control
• Withstands up to 10 bar for high-pressure pneumatic systems
• Outputs 0 to 10V or 4 to 20 mA for easy integration with controllers
• Two switchable PNP/NPN outputs for flexible signalling
• IO-Link COM2 enables fast cycle times down to 4 ms
• Reinforced polyamide housing reduces weight while resisting wear

Applications

• Suitable for compressed Air monitoring in machine tooling
• Ideal for leak detection in pneumatic assemblies
• Used with process control systems requiring flow diagnostics
• Can be used for gas dosing where minimal flows are critical

How is the electrical connection provided and protected?

It uses an A-coded M8x1 plug with reverse-polarity protection across all pins and supports a 22V to 26V DC supply range.

How does the device report measurements digitally?

It communicates via IO-Link Device V1.1 using the Smart Sensor profile with a 14-bit measured-value channel and BDC status bits.

What output options are available for integration?

Analogue outputs include 0 to 10 V, 1 to 5V or 4 to 20 mA, and there are two configurable transistor switch outputs with a 100 mA maximum.

What materials contact the medium and how do they affect use?

Flow-path materials include anodised aluminium, NBR Seals and silicon components, suitable for compressed Air to ISO 8573-1:2010 and inert gases.
