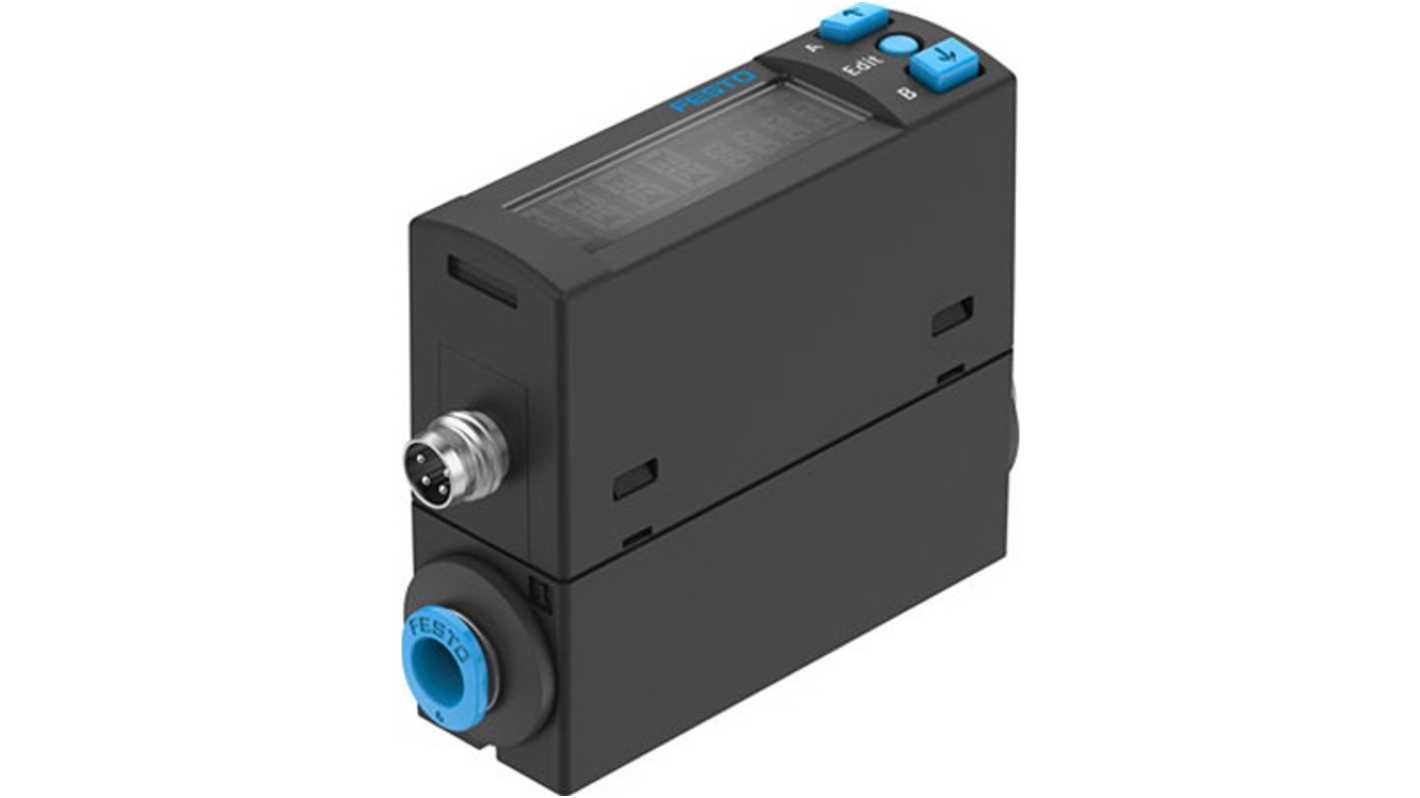

Festo SFAH Series Flow Rate Monitoring Sensor Flow Sensor for Nitrogen, Compressed Air, 1L/min Min, 50L/min Max

모든 Flow Sensors 열람하기

Subtotal (1 unit)*

₩541,897.20

Add to Basket
수량 선택 또는 입력
제조사가 재고 비축중
  • 2026년 6월 24일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩541,897.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
343-459
제조사 부품 번호:
SFAH-50U-Q6S-PNLK-PNVBA-M8
제조업체:
Festo
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Festo

Product Type

Flow Sensor

Media Monitored

Nitrogen, Compressed Air

Device Type

Flow Rate Monitoring Sensor

Minimum Flow Rate

1L/min

Housing Material

Polyamide Reinforced

Maximum Flow Rate

50L/min

Connection Type

Plug

Maximum Pressure

10bar

Minimum Media Temperature

0°C

IP Rating

IP40

Maximum Supply Voltage

22V

Maximum Media Temperature

50°C

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Standards/Approvals

c UL us listed (OL), RCM, CE, RoHS

Series

SFAH

COO (Country of Origin):
BG
The Festo Advanced flow sensor seamlessly integrates precision and reliability into your measurement systems. Designed to accurately gauge mass and volumetric flow rates, it operates effectively across a wide range of conditions. With a thermal measuring principle and a robust operating pressure range, this sensor is engineered for varied media, including argon and nitrogen. Its unique ability to function in both cleanroom environments and industrial settings makes it a versatile solution for enhanced productivity. The illuminated LCD display offers a clear visual representation of flow data, while features like IO-Link connectivity for smart monitoring further empower users to optimise their processes.

Equipped with overload protection to prevent damage

Reverse polarity protection for safety in electrical connections

Includes tamper-proof PIN code access to secure sensitive data

Designed with a corrosion resistance class for durability in challenging environments
