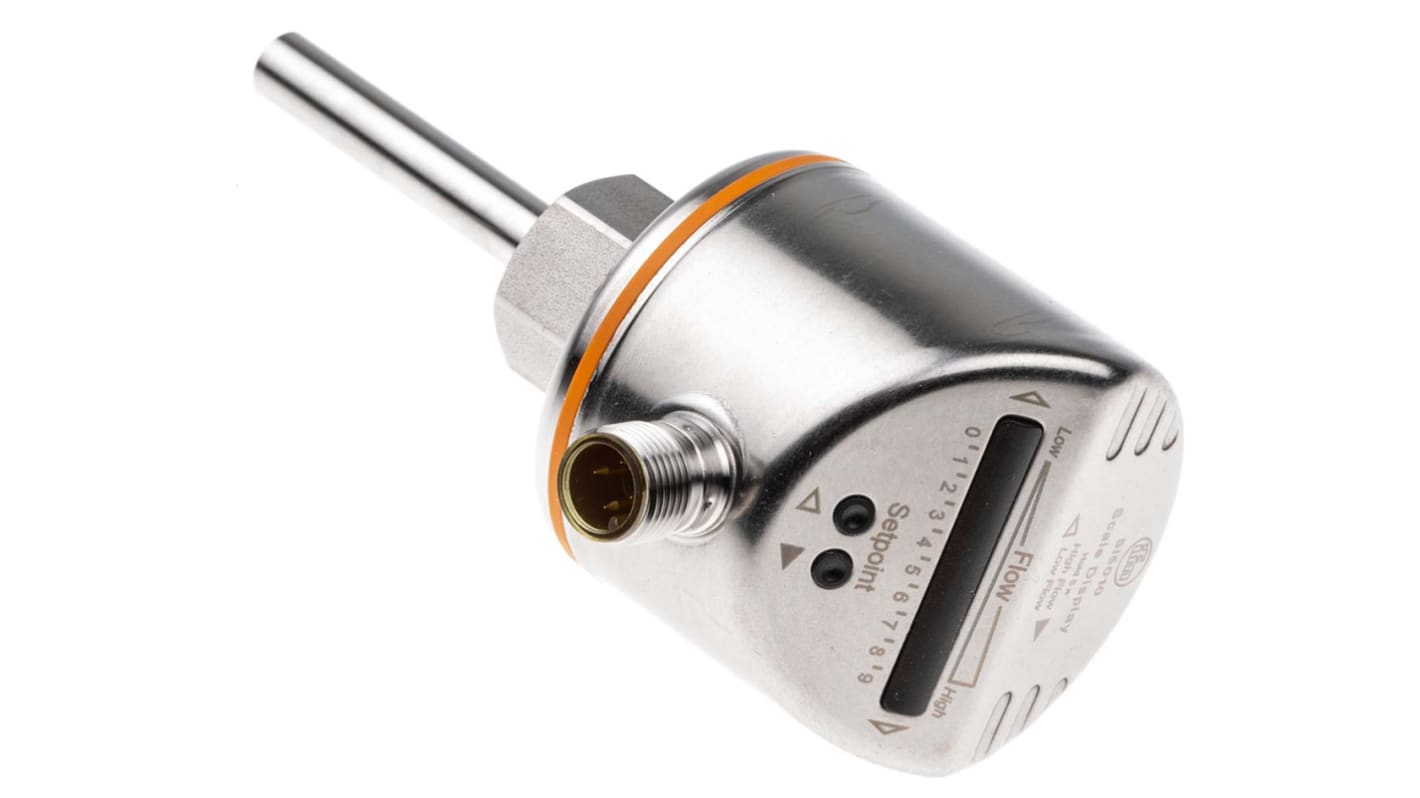

ifm electronic Si5010 Series, Threaded Flow Controller, 3000 cm³/s, PNP Output, 18 mm Pipe 36 V

RS 재고 번호:: 488-097
Distrelec 제품 번호:: 304-10-276
제조 부품 번호:: SI5010
제조업체:: ifm electronic

ifm electronic Si5010 Series, Threaded Flow Controller, 3000 cm³/s, PNP Output, 18 mm Pipe 36 V

Subtotal (1 unit)*

₩565,466.40

재고있음

17 개 단위 배송 준비 완료
추가로 2026년 2월 16일 부터 55 개 단위 배송
추가로 2026년 2월 23일 부터 14 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

단위당	한팩당
1 +	₩565,466.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:: 488-097
Distrelec 제품 번호:: 304-10-276
제조 부품 번호:: SI5010
제조업체:: ifm electronic

기술적 참조

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ifm electronic
	Maximum Flow Rate	3000cm³/s
	Product Type	Flow Controller
	Terminal Type	M12 Connector
	Control Output	PNP
	Mount Type	Threaded
	Display Screen	LED
	Maximum Pipe Diameter	18mm
	Minimum Operating Temperature	-25°C
	Maximum Supply Voltage	36V
	Maximum Operating Temperature	80°C
	Standards/Approvals	CSA, CE
	Hazardous Area Certification	No
	Series	Si5010
	Current Rating	250 mA

	모두 선택
	브랜드 ifm electronic
	Maximum Flow Rate 3000cm³/s
	Product Type Flow Controller
	Terminal Type M12 Connector
	Control Output PNP
	Mount Type Threaded
	Display Screen LED
	Maximum Pipe Diameter 18mm
	Minimum Operating Temperature -25°C
	Maximum Supply Voltage 36V
	Maximum Operating Temperature 80°C
	Standards/Approvals CSA, CE
	Hazardous Area Certification No
	Series Si5010
	Current Rating 250 mA

Datasheet

COO (Country of Origin):: RO

ifm electronic Flow Indicator

The ifm electronic flow indicator can measures flow rate from 3cm³/s to 300cm³/s for liquid and from 200cm³/s to 3000cm³/s for gas. This indicator has an automatic adjustment to nominal flow and minimum flow via setting buttons or programming lin. It has a supply voltage rating ranges between 18VDC and 36VDC. It is an optical indication of nominal flow, overflow, underflow and flows stoppage via the LED display short-circuit proof, inverse polarity protected.

Features and Benefits

Fast reaction time (1 second to 2 seconds)

Adaptable to various process connections

All the parameters can also be set manually

Locking facility

Current consumption is greater than 60mA

Current rating is 250mA

Voltage drop is greater than 2.5V

Certifications

CE certified

UL listed

DIN EN 61000-6-2

DIN EN 61000-6-3

CRN certified

ifm electronic Si5010 Series, Threaded Flow Controller, 3000 cm³/s, PNP Output, 18 mm Pipe 36 V

ifm electronic Flow Indicator

Features and Benefits

Certifications
