RS PRO RSF70 Series Horizontal Nitrile Rubber (NBR) Float Switch, 1 m Cable, SPNO, 240 V ac ac Max, 120 V dc dc Max

모든 Float Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩36,697.60

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 123 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩36,697.60
5 - 24₩35,926.80
25 +₩29,572.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
174-8420
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Product Type

Float Switch

Mount Type

Horizontal

Switch Output

SPNO

Housing Material

Polypropylene

Cable Length

1m

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

100°C

Maximum AC Voltage

240V ac

Maximum DC Voltage

120V dc

Maximum Current

600mA

Gasket Material

Nitrile Rubber (NBR)

Standards/Approvals

No

Hazardous Area Certification

No

Series

RSF70

COO (Country of Origin):
CN

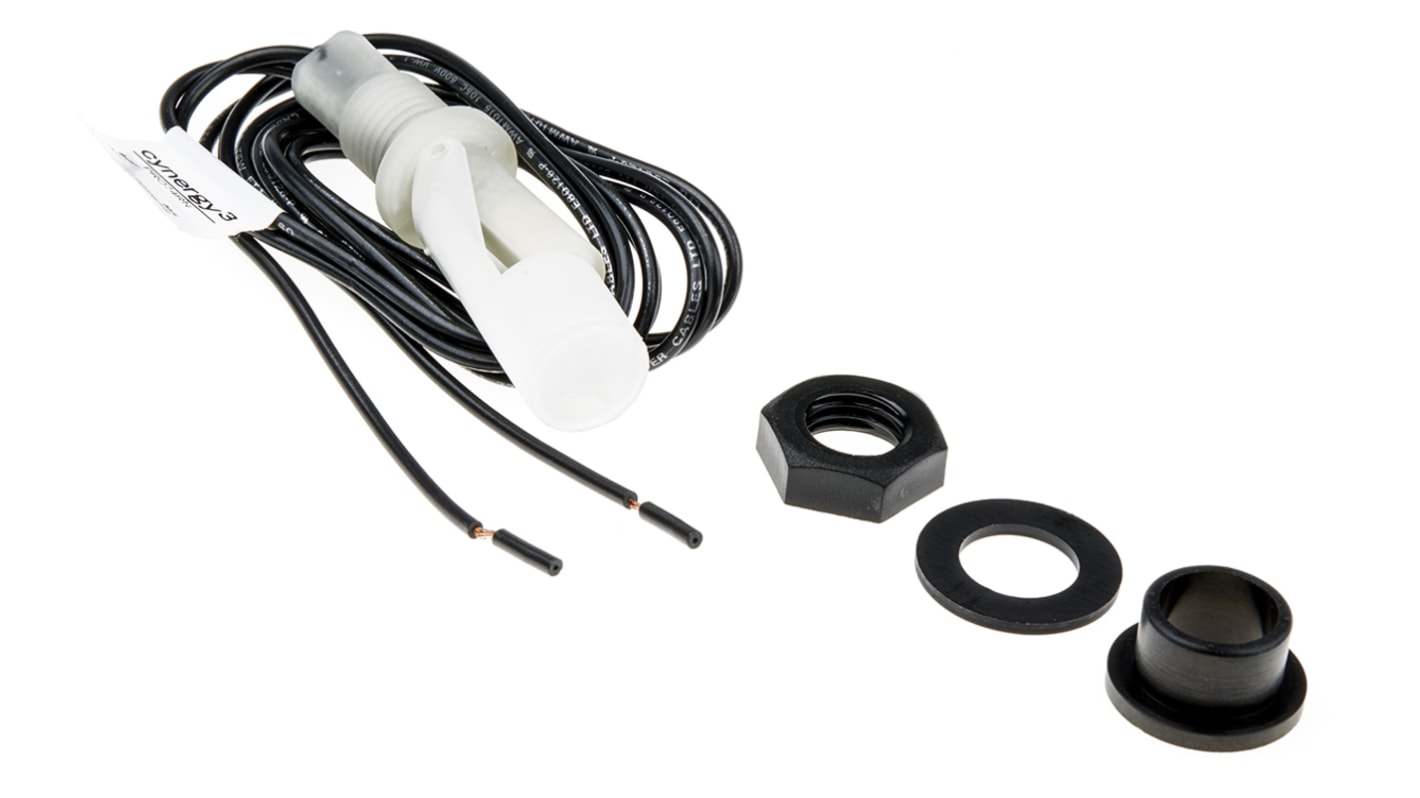

RS PRO Float Switch


The RS PRO float switch is a compact device for fitting through a tank wall from the outside. This is mainly used when it is not possible to access the inside for fitting. The switch action may be reversed by mounting the device with the float to move upwards away from the body, instead of the more normal downwards direction. Cable sets with M12 plugs are also available.

Features and Benefits


• 25VA version

• Available in polypropylene body material

• Compression seal fitting

• Flying Lead or M12 plug connection

• Mounting type is horizontal external

• Switch output is SPNO

Applications


• Auxiliary tanks on vehicles

• Commercial dish washers

• Vending machines
