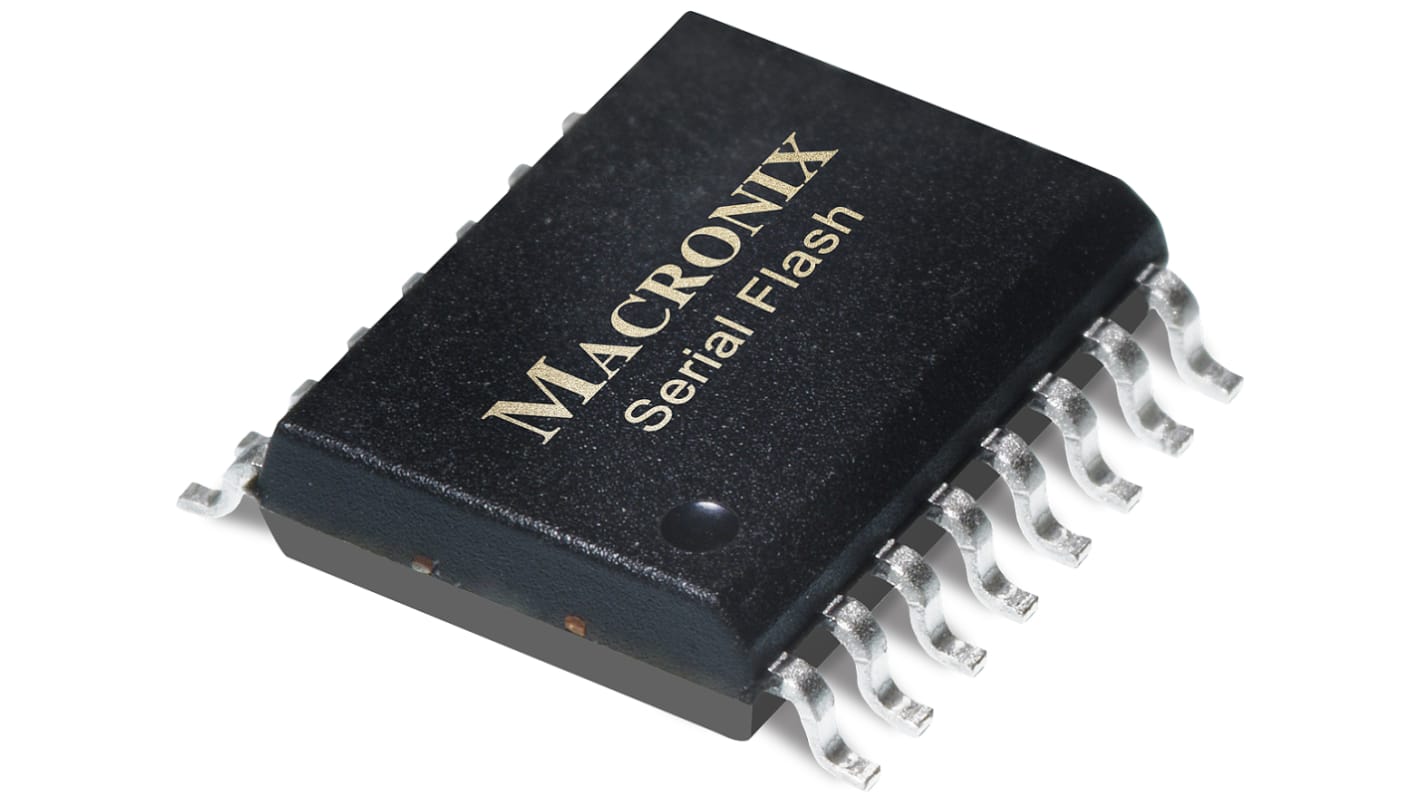

Macronix NOR 512 MB Serial Flash Memory 16-Pin SOP, MX25L51245GMI-10G

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Flash Memory 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
포장 옵션
RS 제품 번호:
914-0674P
제조사 부품 번호:
MX25L51245GMI-10G
제조업체:
Macronix
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Macronix

Product Type

Flash Memory

Memory Size

512MB

Interface Type

Serial

Package Type

SOP

Pin Count

16

Organisation

512M x 1 bit

Mount Type

Surface

Maximum Clock Frequency

166MHz

Cell Type

NOR

Maximum Supply Voltage

3.6V

Minimum Supply Voltage

2.7V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Width

7.6mm

Length

10.5mm

Height

2.45mm

Standards/Approvals

RoHS

Number of Words

128M, 256M, 512M

Maximum Random Access Time

8ns

Number of Bits per Word

4

Automotive Standard

No

Series

MX25L

COO (Country of Origin):
TW

Serial NOR Flash Memory, MXSMIO (Multi-I/O) Duplex (DTR), MX25/66xxx45/85 Series


Serial NOR Flash Memory, MXSMIO (Multi-I/O) Duplex (DTR), MX25/66xxx45/85 Series Macronix MXSMIO Family of Multi-I/O Interface offers the 3 V Serial NOR Flash Memory products. The MX25xxx45 series offer Quad Input/Output Interface with DTR (Double Transfer Rate) mode operation, featuring fast data transfer rate up to 800 MHz.

Flash Memory, Macronix
